ABSTRACT Retinal ischemia is a major cause of visual impairment and blindness and is involved in various disorders including diabetic retinopathy, glaucoma, optic neuropathies and

retinopathy of prematurity. Neurovascular degeneration is a common feature of these pathologies. Our lab has previously reported that the ureahydrolase arginase 2 (A2) is involved in

ischemic retinopathies. Here, we are introducing A2 as a therapeutic target to prevent neurovascular injury after retinal ischemia/reperfusion (I/R) insult. Studies were performed with mice

lacking both copies of A2 (A2−/−) and wild-type (WT) controls (C57BL6J). I/R insult was conducted on the right eye and the left eye was used as control. Retinas were collected for analysis

at different times (3 h–4 week after injury). Neuronal and microvascular degeneration were evaluated using NeuN staining and vascular digests, respectively. Glial activation was evaluated by

glial fibrillary acidic protein expression. Necrotic cell death was studied by propidium iodide labeling and western blot for RIP-3. Arginase expression was determined by western blot and

quantitative RT-PCR. Retinal function was determined by electroretinography (ERG). A2 mRNA and protein levels were increased in WT I/R. A2 deletion significantly reduced ganglion cell loss

and microvascular degeneration and preserved retinal morphology after I/R. Glial activation, reactive oxygen species formation and cell death by necroptosis were significantly reduced by A2

deletion. ERG showed improved positive scotopic threshold response with A2 deletion. This study shows for the first time that neurovascular injury after retinal I/R is mediated through

increased expression of A2. Deletion of A2 was found to be beneficial in reducing neurovascular degeneration after I/R. SIMILAR CONTENT BEING VIEWED BY OTHERS TARGETING PROLIFERATIVE

RETINOPATHY: ARGINASE 1 LIMITS VITREORETINAL NEOVASCULARIZATION AND PROMOTES ANGIOGENIC REPAIR Article Open access 29 August 2022 RIP1 INHIBITION PROTECTS RETINAL GANGLION CELLS IN GLAUCOMA

MODELS OF OCULAR INJURY Article Open access 24 October 2024 NEUROVASCULAR INJURY ASSOCIATED NON-APOPTOTIC ENDOTHELIAL CASPASE-9 AND ASTROGLIAL CASPASE-9 MEDIATE INFLAMMATION AND CONTRAST

SENSITIVITY DECLINE Article Open access 08 November 2022 MAIN Retinal ischemia is a major cause of visual impairment and blindness and is involved in various disorders including diabetic

retinopathy, acute glaucoma and retinopathy of prematurity. These pathologies share common features including oxidative stress, neurodegeneration, inflammation, activation of glial cells and

vascular damage.1, 2, 3, 4, 5, 6 Retinal ischemia/reperfusion (I/R) injury models have been widely used to study the mechanisms of neuronal and vascular damage in ischemic retinopathy.4, 7,

8 I/R injury occurs upon restoration of tissue blood supply after a period of ischemia. Although there has been much emphasis on studying protective measures to reverse or reduce I/R

insult-mediated tissue damage, so far, there is no clinically effective treatment. This is mainly because the molecular mechanisms by which neurovascular dysfunction and injury happen are

far from clear. Degeneration of neurons and increased vascular permeability have been reported after I/R injury.7, 9, 10 Our group has shown that activity of the superoxide-generating enzyme

NOX2 NADPH oxidase is crucially involved in I/R-mediated neuronal damage in retina.11 Studies from our laboratory also have shown a significant role for the urea cycle enzyme, arginase, in

mediating neuronal and vascular injuries in other retinal disease models.12, 13, 14, 15 Arginase exists in two isoforms, arginase 1 (A1) and arginase 2 (A2).16 A1, the cytosolic isoform, is

strongly expressed in the liver17 and A2, the mitochondrial isoform, is expressed primarily in extra-hepatic tissues, especially the kidney.18 Both isoforms are also found in other tissues

including brain and retina12, 19, 20 and have been linked to diseases, such as hypertension, aging, I/R injury in heart and kidney, and diabetes complications.21, 22, 23 Arginase has been

extensively studied as a key factor in I/R injury in different organs including liver, heart and kidney.24, 25, 26 Studies in models of myocardial and hepatic ischemia/reperfusion injury

have shown a beneficial role of arginase inhibition by different agents.25, 27, 28, 29, 30 Although less is known about the role of arginase in I/R injury in brain, studies in a model of

Alzheimer’s disease (AD) have shown that treatment with an inhibitor of arginase protected mice from AD-like pathology.31 Upregulation of A2 has also been implicated in vascular dysfunction

associated with aging, obesity and retinopathy.19, 20, 32, 33 Previous reports have shown that A2 expression increases after traumatic brain injury (TBI) and that TBI-induced impairment of

cerebral blood flow is prevented by A2 deletion.34 These studies along with our previous studies underscore a crucial role for A2 in central nervous system injury. In this study, we

investigated the role of A2 in retinal neurovascular injury following I/R insult. RESULTS INCREASED A2 EXPRESSION DURING RETINAL I/R INJURY Our previous studies in a model of oxygen-induced

retinopathy (OIR) have shown that retinal neurovascular injury is associated with increases in A2 expression and that deletion of A2 limits both neuronal and vascular injuries.13, 14, 15

Based on these findings, we hypothesized that A2 is involved in I/R-induced retinal injury. In order to examine this hypothesis, we used quantitative RT-PCR and western blot analyses to

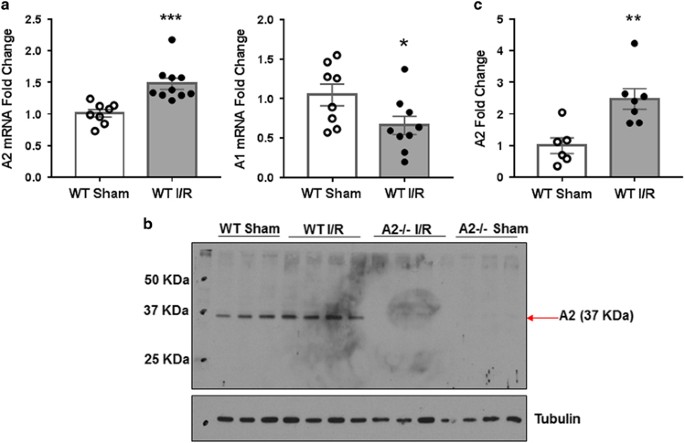

examine arginase expression after I/R or sham injury. These studies showed A2 mRNA and protein levels were significantly increased within 3 h after I/R as compared with the sham control

(Figures 1a and c). In contrast, levels of A1 mRNA (Figure 1a) and protein (data not shown) were slightly reduced at this time. Along with others, we have shown that I/R injury results in a

marked distortion and thinning of the neural retina.10, 11, 35 To assess the role of A2 in this I/R-induced tissue damage, we determined the impact of A2 deletion on retinal morphology at 7

days after I/R injury. Quantitative analysis of hematoxylin and eosin (H&E)-stained retinal sections using ImageJ (National Institute of Health, Bethesda, MD, USA) confirmed a

significant thinning of the wild-type (WT) I/R retinas as compared with sham controls (Figure 2). However, A2 deletion preserved retinal morphology and prevented retinal thinning (Figures 2a

and b). As the INL is highly sensitive to I/R injury, we also measured INL thickness in response to I/R injury. This analysis showed a 19% decrease in INL thickness in WT I/R retinas

compared with sham controls, whereas INL thickness in A2−/− I/R retinas was comparable to both sham control groups (Figure 2c). These data suggest that the I/R-induced increase in A2

expression is critically involved in mediating I/R-induced retinal injury. REDUCTION IN RETINAL CELL DEATH AND IMPROVED NEURONAL SURVIVAL BY A2 DELETION The improvement in retinal morphology

in the A2−/− I/R mice suggested that A2 has a critical role in retinal injury during I/R. Previous studies in a rat model of I/R injury have shown that retinal neurons die by necroptosis, a

caspase-independent mechanism of programmed cell death.36, 37 In this study, we examined the impact of A2 deletion on I/R-induced necroptosis by evaluating uptake of propidium iodide (PI)

after I/R injury. Plasma membrane permeability is an early feature of necroptosis. PI is membrane impermeable in living cells, but when the plasma membrane is permeable it can enter the cell

to bind to DNA. We observed a significant increase in PI-positive cells in WT retinas within 6 h following I/R injury. PI-labeled cells were mainly localized in GCL and INL of the I/R

retinas (Figure 3a). The number of PI-positive cells in the inner retinal layers was significantly reduced with A2 deletion (Figure 3b). To further examine the role of necroptosis in

I/R-induced injury, we assessed the expression of receptor interacting protein-3 (RIP-3) by western blotting. RIP-3 is a critical regulator of programmed necrosis/necroptosis.38 A

significant increase in RIP-3 protein levels was evident at 6 h post-injury in WT I/R retinal lysates compared with sham controls (Figures 3c and d). The I/R-induced increase in RIP-3 was

largely reduced in A2−/− I/R retinas. These results suggest that A2 mediates I/R-induced cell death through a mechanism involving necroptosis. Degeneration of GCL neurons is another major

hallmark of retinal damage following I/R insult.7, 39, 40 In order to assess the impact of A2 deletion on I/R-induced loss of GCL neurons, we prepared anti-NeuN immunolabeled retinal flat

mounts from I/R treated WT and A2−/− retinas and their respective sham controls. Consistent with our previous observations, there was a marked decrease in the number of NeuN-positive cells

in the GCL layer of WT I/R retina compared to WT sham control at 7 days after I/R injury (Figure 4). Quantification using confocal imaging and ImageJ analysis showed a 40% decrease in GCL

neurons in WT I/R retina compared with control. Deletion of A2 significantly blunted this effect (Figure 4b). The relative density of surviving GCL neurons in the A2−/− I/R retina was not

significantly different from that in the sham control retinas. PROTECTION OF THE RETINAL MICROVASCULATURE FROM I/R INJURY BY A2 DELETION In addition to the neuronal injury, I/R also induces

degeneration of the retinal microvasculature. It has been reported that vascular cells start to die within 2 days after retinal I/R injury with maximum losses at 14 days.7 The vascular cell

death leads to the formation of empty basement sleeves, which are termed acellular capillaries.7 Our previous study has shown that A2 deletion significantly reduced retinal vascular injury

in the OIR mouse model.15 Based on these findings, we investigated the impact of A2 deletion on the formation of acellular capillaries after retinal I/R injury. We prepared vascular digests

and quantified the number of acellular capillaries in bright field images using ImageJ software. This analysis showed a profound increase in the number of acellular capillaries (Figure 5a)

in WT I/R retinas 14 days after I/R insult compared to their respective sham controls. The mean number of acellular capillaries in WT I/R vasculature is 148/mm2 and 13/mm2 in sham controls

(Figure 5b). Deletion of A2 significantly reduced the formation of acellular capillaries in I/R retina (35/mm2). REDUCTION OF GLIAL ACTIVATION AND OXIDATIVE STRESS BY A2 DELETION To further

assess the effect of A2 deletion on I/R-induced retinal injury we examined glial cell activation by analyzing expression of glial fibrillary acidic protein (GFAP). GFAP is normally expressed

in astrocytes and its upregulation is linked to retinal injury.41 Müller cells show increased GFAP expression under conditions of retinal injury and stress. We assessed GFAP expression by

immunofluorescence and western blotting studies 5 days after injury. Immunolocalization analysis showed increased GFAP expression in astrocytes and Müller cells in WT I/R retinas compared

with sham controls (Figure 6a). GFAP was markedly increased in Müller cells indicating their activation in response to I/R injury. GFAP expression in the A2−/− retinas was largely unaffected

by I/R injury. Western blot analysis further confirmed the immunolabeling results. GFAP levels were significantly increased in WT I/R retinas compared with sham controls. GFAP expression in

the A2−/− I/R retinas was markedly reduced as compared with WT I/R retinas and was similar to that in the sham controls (Figures 6b and c). These data suggest that A2 deletion protected

against glial cell activation and limited the cell stress response following retinal I/R injury. Oxidative stress is another key mediator of I/R-induced retinal neurovascular injury. In

order to assess the involvement of A2 in I/R-induced oxidative stress, we determined the effects of A2 deletion on the formation of superoxide and peroxynitrite (ONOO−). We used

dihydroethidium (DHE) imaging of fresh frozen retinal sections to assess superoxide formation. When superoxide is produced it binds to DHE and oxidizes it to ethidium, which binds to DNA and

fluoresces red. We have previously shown that 6 h after I/R injury there is a significant increase in superoxide formation in WT retinas.11 This was confirmed in our present study.

Quantification of DHE assay images using fluorescence microscopy and Metamorph imaging system analysis showed that the I/R injury induced a significant increase in superoxide formation in

the WT retinas and that this increase was largely prevented in the A2−/− retinas (Figures 7a and b). As DHE can be oxidized by other reactive oxygen species (ROS) in addition to

superoxide,42 we performed control studies using superoxide dismutase (SOD) to demonstrate specificity of the DHE reaction for superoxide. Another marker of oxidative stress is ONOO−. ONOO−

is a short-lived molecule at physiological pH, but it has been shown to nitrate protein tyrosine residues and thus can serve as a ONOO− biomarker. We have previously shown that nitrotyrosine

formation is significantly increased 6 h after I/R injury.11 Therefore, we examined ONOO− formation indirectly by western blotting analysis with an anti-nitrotyrosine antibody. A

significant reduction in the level of nitrated proteins was observed in A2−/− I/R retina compared with WT I/R (Figures 7c and d). These findings further support the involvement of A2 in I/R

injury-induced oxidative stress. The p38 mitogen-activated protein kinase is one of the mitogen-activated protein kinases that is activated in response to cell stress. Phosphorylation of p38

is an indicator of its activation. We used western blotting to assess p38 phosphorylation in samples collected 3 h after injury and observed a significant increase in phospho-p38 in WT I/R

retinal lysates compared with sham controls (Figures 7e and f). Phosphorylation of p38 was significantly reduced in A2−/− I/R retinas compared with WT I/R retinas. PROTECTION AGAINST

I/R-INDUCED IMPAIRMENT OF RETINAL FUNCTION BY A2 DELETION To assess the effect of A2 deletion on function of the inner retina, we used dark-adapted (scotopic) electroretinography (ERG) to

record the positive scotopic threshold response (pSTR). The pSTR is thought to reflect activity of the proximal retinal portion, that is, amacrine and ganglion cells, of the sensitive rod

circuit.43 This analysis showed that the amplitude of the pSTR was significantly reduced in WT I/R mice compared with WT sham 4 weeks after the injury (Figure 8). This I/R-induced impairment

of the pSTR was significantly lessened in the A2−/− I/R retinas at higher intensity stimulation. DISCUSSION In this study, we demonstrate for the first time that A2 enzyme is crucially

involved in I/R-induced neurovascular degeneration. We show that deletion of A2 gene preserved retinal morphology, improved neuronal survival and decreased the formation of acellular

capillaries while reducing oxidative stress, gliosis, phosphorylation of p38 MAPK and necroptosis-mediated cell death following I/R injury. These protective effects were associated with an

improvement in function of the inner retinal neurons as shown by ERG analysis. Our previous studies in the mouse model of I/R injury have shown that expression and activity of NOX2 NADPH

oxidase are involved in the neuronal cell death. We found that NOX2 deletion reduced I/R-induced increases in oxidative stress, gliosis and activation of cell stress pathways and protected

against neuronal loss.11 Interestingly, western blot analyses of retinal protein samples from the same animals showed that levels of the A2 protein were increased in the WT retina after I/R

injury. This increase was completely prevented by deletion of NOX2, suggesting that A2 is a downstream target of NOX2-induced increases in oxidative stress (unpublished data, H Yokota and RB

Caldwell). The mechanism by which NOX2 activation increases expression of A2 is unclear. However, we believe that superoxide produced from activated NOX2 along with other ROS, which are

markedly increased after I/R has an important role in A2 upregulation that leads eventually to cell death and I/R-induced neurovascular degeneration (Figure 9). Relatively little is known

about regulation of A2 expression. However, previous studies have shown that oxidative species can increase A1 expression in vascular endothelial cells through protein kinase C-mediated

activation of the RhoA/Rho kinase pathway.44 Studies using mesenteric arteries from streptozotocin-induced diabetic rats have shown a link between increased formation of phospho-p38 MAPK,

increased expression of A1 and A2 and vascular dysfunction.45 These effects were reversed by p38 MAPK inhibition. A mechanism involving inflammation is also possible given that A2 expression

in macrophages has been shown to be increased by liver X receptor.46 Arginase has been identified as a potential therapeutic target for treatment of coronary artery disease (CAD) in a rat

model.25 An arginase inhibitor has been shown to protect against endothelial dysfunction caused by ischemia reperfusion in patients with CAD.30 Recent reports have implicated A2 in

endothelial dysfunction through endothelial nitric oxide synthase (eNOS) uncoupling in obese and aged mice,32, 33 as well as in impairment of cerebral blood flow after TBI.34 In addition,

recent studies from our laboratory have demonstrated the involvement of A2 in neurovascular damage in a neonatal mouse model of ischemic retinopathy.13, 14, 15 In this study, we demonstrate

a significant increase in A2 mRNA and protein levels as early as 3 h after I/R insult. This early elevation of A2 expression implies a primary role in the pathological process. Although the

role of arginase in retinal I/R injury has not been studied until now, our previous studies have shown that both arginase isoforms are expressed in the retina.12 We also have found that

streptozotocin-induced diabetes causes an increase in retinal arginase activity12, 47 and that inhibition of arginase activity or deletion of one copy of A1 and both copies of A2 reduces

diabetes-induced retinal inflammation.12 Furthermore, our studies in a mouse model of OIR have shown that homozygous deletion of A2 prevents hyperoxia-induced neuronal-glial injury and

improves retinal function.13 Studies in the same model showed that A2 deletion also prevents oxidative stress and limits retinal vascular degeneration and pathological neovascularization.15

We have shown that A2 is highly expressed in the horizontal cells and in the ONL in OIR model.13, 14 A2-induced cell death in other retinal layers could be mediated through signals initiated

by cell–cell interactions or release of soluble cytotoxic factors from activated cell types such as micro- or macro-glia. This will be investigated in future studies. The role of oxidative

stress and inflammation in neuronal cell loss and formation of acellular capillaries after I/R insult in retina is well established.11, 48, 49 Furthermore, studies have shown that the

transcription factor NF-E2-related factor 2 has a significant role in protecting cells from I/R-induced neurodegeneration by a mechanism involving decreases in oxidative stress.50 We have

previously shown that A2 deletion prevented oxidative stress and reduced hyperoxia-induced retinal vascular degeneration in a model of OIR.15 Our group has also shown that retinal I/R insult

significantly increases superoxide and nitrotyrosine formation by mechanisms involving activation of NOX2.11 In this study, we are introducing A2 as a new factor in mediating oxidative

stress and neurovascular degeneration following retinal I/R injury. We show that deletion of A2 significantly reduced the I/R-induced increases in superoxide and nitrotyrosine formation.

Taken together with our finding that deletion of NOX2 limits I/R injury induced increases in A2 expression, the latter result suggests that NOX2-induced increases in oxidative stress are due

in part to the upregulation of A2. It should be noted that there is a difference in relative intensity of the DHE reaction in the INL and GCL, which is consistent with the patterns of PI

labeling in these layers. In contrast, the lack of PI labeling in the ONL in combination with the intense DHE reaction suggests that the photoreceptors are dying at a different time and/or

are less sensitive to oxidative injury than the INL and GCL neurons. Further studies are needed to elucidate the mechanisms by which A2 increases oxidative stress. However, our

investigations in models of OIR and diabetic retinopathy suggest that increases in superoxide and ONOO− formation subsequent to arginase-induced depletion of the l-arginine supply to nitric

oxide synthase (NOS) may be involved (Figure 9).12, 15, 47 Our studies in the OIR model have also identified a downstream element in the arginase pathway, altered polyamine metabolism by

spermine oxidase (SMO), as a source of oxidative stress and damage to retinal neurons.14 Oxidation of spermine by SMO has been shown to lead to production of hydrogen peroxide and the

reactive aldehyde 3-amino propanal.51 Both can damage DNA, RNA, proteins and membranes. Our studies in the OIR model have shown that hyperoxia-induced neuronal cell death is associated with

increase in SMO expression along with elevated levels of hydrogen peroxide formation and that treatment with a SMO inhibitor reduced oxidative stress and decreased neuronal injury.14 It is

possible that the neurovascular protection from I/R injury provided by A2 deletion is mediated via disruption of the polyamine oxidase signaling pathway. This will be investigated in our

future studies (Figure 9). Activation of Müller glial cells, characterized by increased GFAP expression, is a well-established injury marker in retinal disease conditions such as I/R,

diabetic retinopathy and OIR.13, 52, 53 This was confirmed in our study. Further, the I/R-induced activation of Muller cells was prevented by A2 deletion, demonstrating a protective effect

of A2 deletion on glia. This is consistent with our previous observation that A2 deletion abrogates glial activation in the OIR model.13 Death of neurons in the inner retina following I/R

can occur through different mechanisms including apoptosis, necrosis and programmed necrosis, that is, necroptosis36, 37 In this study, PI labeling showed a significant increase in

PI-positive cells in the inner retina at 6 h after I/R. The number of PI-positive cells was significantly reduced in the retinas of A2 deficient mice. PI staining showed a reduced signal in

the GCL compared with the INL in WT retinas. However, NeuN labeling showed a severe loss of GCL neurons. This could mean that GCL neurons are dying by other mechanism and/or at different

time points. PI labeling was done 6 h after I/R, but neurodegeneration was assessed 7 days after I/R. It should be noted that while PI labels cells dying by necroptosis, it also stains late

apoptotic and early necrotic cells. Thus, we examined expression of RIP-3, a marker for necroptotic cell death. Previous studies have reported that RIP-3 expression is rapidly increased in

cells of the GCL and INL in the rat retina following acute increases in intraocular pressure (IOP).54 It was also reported that RIP-3 immunolabeling was colocalized with the PI-positive

cells in the GCL that indicates the involvement of RIP-3 in necroptotic cell death. Our western blotting analysis showed a significant increase in RIP-3 protein expression following I/R,

which was significantly reduced in A2-deficient retinas. These results indicate that A2 is involved in the I/R-induced necroptosis. In conclusion, our study demonstrates for the first time

that A2 is crucially involved in I/R-induced retinal neurovascular injury, through a mechanism involving increased oxidative stress, glial activation and necroptotic cell death. Our study

suggests that A2 can be considered as a therapeutic target to decrease neurovascular degeneration after I/R injury. MATERIALS AND METHODS ANIMALS AND I/R INSULT All procedures with animals

were performed in accordance with the ARVO Statement for the Use of Animals in Ophthalmic and Vision Research and were approved by the institutional animal care and use committee (Animal

Welfare Assurance no. A3307–01). All surgeries were performed under anesthesia, and all efforts were made to minimize suffering. We used male WT and A2-deficient (A2−/−) mice on C57BL6J

background. These mice were subjected to I/R injury in the right eye. I/R was induced as previously described.11 Briefly, mice (10–12 weeks old) were anesthetized with (73 mg/kg ketamine

hydrochloride and 7.3 mg/kg xylaxine hydrochloride, i.p.), 1% tropicamide (Akorn, Lake Forest, IL, USA) was used to dilate the pupil, and topical anesthesia (0.5% proparacaine hydrochloride;

Akorn) was applied to the cornea. A 30-gauge needle cannulated in the anterior chamber of the right eye was used to infuse sterile saline. The IOP was raised to 110 mm Hg by elevating the

saline reservoir and this pressure was held for 40 min. Ischemia was confirmed by observation of whitening of the anterior segment of the globe and blanching of episcleral veins.55 The left

eye was used as control. The mice were killed at various times after I/R as determined in preliminary studies and the existing literature as follows: QUANTITATIVE RT-PCR Total RNA was

extracted from frozen retinal tissue using a RNA isolation kit (Invitrogen, Carlsbad, CA, USA) as instructed by the manufacturer. RNA was converted to cDNA using M-MLV reverse transcriptase

(Invitrogen). Quantitative PCR was performed using an ABI StepOne Plus Thermocycler (Applied Biosystems, Foster City, CA, USA) with TaqMan gene expression assays (Invitrogen). The probes of

TaqMan assay used to detect A1, A2 and hypoxanthine phosphoribosyltransferase (HPRT) as internal control, were Mm00475988_m1, Mm00477592_m1 and Mm00446968_m1. Data were normalized to HPRT

and the fold change between levels of different transcripts was calculated by the CT method. NEURODEGENERATION EVALUATION Neuronal degeneration was assessed as previously described with

minor modification.11 The neuronal cell marker NeuN was used to label surviving neurons in whole retinal flat mounts. Eye balls were collected 7 days after I/R or sham surgery and fixed

overnight in 4% paraformaldehyde (PFA) at 4 °C. Retinas were dissected, permeabilized, blocked and then labeled with anti-NeuN (Millipore cat. # MAB377, Billerica, MA, USA) in 37 °C for 2 h.

Then retinas were incubated with Alexa488 anti-mouse IgG overnight. After flatmounting, retinas were imaged using a confocal microscope (LSM 510; Carl Zeiss, Thornwood, NY, USA). Four

images were taken in the midperiphery of each retina and the NeuN-positive cells were counted using ImageJ software. The result was presented as a percentage of NeuN-positive cell numbers in

the ganglion cell layer (GCL) of the I/R eyes compared with the sham eyes. RETINAL VASCULATURE ISOLATION AND MEASUREMENT OF ACELLULAR CAPILLARIES Trypsin digestion method was used for

isolating the retinal vasculature as previously described with minor modification.59 Eye balls were removed and fixed with 4% paraformaldehyde overnight. Retinas were carefully dissected and

incubated in distilled water at room temperature with gentle shaking at least 24 h. Then the retinas were digested with 3% trypsin (Difco Trypsin 250, Becton Dickinson and Company, Sparks,

MD, USA) in 0.1 M Tris buffer (pH 7.8) for 1.5 h at 37 °C on an orbital shaker (50 r.p.m.). Retinas were washed carefully in several changes of fresh distilled water until no more

non-vascular tissue was observed under the microscope. The isolated retinal vasculature was air-dried on silane-coated slides and stained with periodic acid–Schiff and hemotoxylin. Acellular

capillaries were counted in 10 random areas of the mid-retina. The field area was calculated using ImageJ software. The number of acellular capillaries were divided by the field area to get

number of acellular capillaries per 1 mm2 of retina. RETINAL THICKNESS MEASUREMENT Retinal thickness was studied on retinal frozen sections from WT and A2−/− animals 7 days after the I/R

injury. Cross-sections with optic nerve attachment were prepared (10 _μ_m) followed by H&E staining for morphological observation. Images were taken 162 _μ_m away from the optic nerve

head and four sections 20 _μ_m apart from each other were used. Whole retina or individual retinal layer (inner nuclear layer, INL) thicknesses at three different distances from optic nerve

head was determined using ImageJ software and averaged. Averaged retinal thickness was presented as percentage compared with the contralateral sham eyes. ROS PRODUCTION Dihydroethedium (DHE)

method was used to evaluate superoxide formation as described previously.15 Briefly, fresh frozen sections were preincubated with or without SOD-polyethylene glycol (400 U/ml,

Sigma-Aldrich, St. Louis, MO, USA) for 30 min, followed by reaction with DHE (10 _μ_M) for 15 min at 37 °C. Superoxide oxidizes DHE to ethidium bromide, which binds to DNA and fluoresces

red.60 The fluorescence microscope (AxioVision; Carl Zeiss) was used to obtain the DHE images immediately after incubation. DHE was excited at 488 nm with an emission spectrum of 610 nm. Six

images per slide were taken and computer-assisted morphometry (Metamorph Image System; Molecular Devices, Sunnyvale, CA, USA) was used to analyze images for fluorescence intensity.

IMMUNOFLUORESCENCE Eyes were enucleated, fixed in 4% PFA (overnight, 4 °C). The next day, eye balls were washed in PBS and then incubated with 30% sucrose overnight at 4 °C. Then eye balls

were snap frozen in optimal cutting temperature (OCT) solution. Cryostat sections (10 _μ_m) were obtained, mounted on glass slides, permeabilized with 1% Triton for 10 min and blocked in 10%

normal goat serum for 1 h. Sections were then incubated in anti-GFAP (Dako Cat. # Z0334, Carpinteria, CA, USA; 1 : 200) primary antibody at 4 °C overnight. On the next day, sections were

incubated for 1 h at room temperature in fluorescein-conjugated secondary antibody (Molecular Probes, Grand Island, NY, USA; 1 : 500), washed in PBS, and covered with mounting medium and

DAPI (Vectashield; Vector Laboratories, Burlingame, CA, USA). WESTERN BLOT ANALYSIS Retinal protein extracts were prepared using RIPA buffer (Millipore) containing 1x protease and

phosphatase inhibitors (Complete Mini and phosSTOP, respectively; Roche Applied Science, Indianapolis, IN, USA). We separated the proteins on SDS-PAGE and then transferred them to

nitrocellulose membrane (Millipore) blocked in 5% milk (Bio-Rad, Hercules, CA, USA). The membranes were then incubated with different primary antibodies overnight at 4 °C. The primary

antibodies we used are: A2 (Santa Cruz Biotechnology cat. # Sc-20151, Dallas, TX, USA; 1 : 500), phospho-p38 (Cell Signaling Technology cat. # 4511, Danvers, MA, USA; 1 : 500), total p38

(Cell Signaling Technology cat. # 9212, 1 : 500) GFAP (Sigma-Aldrich cat. # G6171, St. Louis, MO, USA; 1 : 500), RIP-3 (Santa Cruz Biotechnology cat. # SC-135170, 1 : 500), tubulin

(Sigma-Aldrich cat. # T-9026, 1 : 5000) and _β_-actin (Sigma-Aldrich cat. # A1978, 1 : 5000). Primary antibodies were diluted in either 5% milk or 5% bovine serum albumin (BSA). ONOO−

formation was determined indirectly by western blot analysis of nitrotyrosine using monoclonal anti-nitrotyrosine antibody (Millipore Cat. # 05-233, 1 : 500 in 1% BSA). The next day,

membranes were washed in TBST (Tris-buffered saline with 0.5% Tween-20) and horseradish peroxidase-conjugated secondary antibodies (GE Healthcare, Piscataway, NJ, USA) were added (1 : 5000

for tubulin and actin, 1 : 4000 for nitrotyrosine and 1 : 1000 for others). Enhanced chemiluminescence system (GE Healthcare Bio-Science Corp., Piscataway, NJ, USA) was used to detect

immunoreactive proteins. Data were quantified by densitometry using ImageJ and normalized to loading control. PI LABELING AND DETECTION OF NECROTIC CELLS PI was used to label necrotic cells

as previously described.36 Briefly, mice were subjected to I/R injury. At 5 h after the I/R injury, PI (Sigma-Aldrich Cat. #p4170, St. Louis, MO, USA, 5 mg/kg) was injected intraperitoneally

and mice were killed 1 h later by carbon dioxide inhalation followed by cervical dislocation. Eye balls were harvested and snap frozen in OCT compound. For detecting PI-positive cells,

retinal sections (10 _μ_m) were fixed in 100% ethanol for 10 min at room temperature and quantification of necrotic cells was performed on three sections from each sample using a Carl Zeiss

Anxioplan2 fluorescence microscope. ELECTRORETINOGRAM Mice were dark-adapted overnight, anesthetized with ketamine/xylazine and prepared under dim red lighting. The eyes were treated with

drops of proparacaine, tropicamide and phenylephrine. A rectal probe controlled a heating pad to maintain temperature at 37 °C. A ground electrode was placed in the tail, and reference

electrodes in each cheek. Silver thread electrodes were placed on each eye, and a drop of hypromellose was added to improve electrical contact and protect the cornea from drying. An optic

fiber was then positioned just in front of each pupil. Visual stimuli were generated by an LED device, with the light from the LED defocused and filtered before arriving at the optic fiber

launcher in order to provide extremely dim luminances, ranging from about 10−6 to 10−4 candela.second/meter2 (cd.s/m2). Testing consisted of a set of 5 ms flashes over a range of

intensities, randomly interleaved with a probability distribution emphasizing intensities just above threshold (which is around 4 × 10−6 cd.s/m2). Responses were averaged over 10–100 trials

at each intensity, and positive (pSTR) and negative (nSTR) scotopic threshold responses were measured at 110 and 200 ms, respectively43 after the flash that occurred 500 ms into each 2-s

trial. The pSTR and nSTR amplitudes had floors at 0 _μ_V. The results were averaged across the mice in each group (WT and A2 −/−), and the differences between the sham and I/R eyes were used

to estimate the effects of the knockout on the damage caused by the I/R. STATISTICAL ANALYSIS Results were presented as mean±S.E.M. Statistical analysis was performed by GraphPad Prism 7

(GraphPad Softwar Inc., La Jolla, CA, USA). Values were tested to assess whether they followed a normal distribution by the same software. Two-way ANOVA followed by Tukey's test for

multiple comparisons or, the Student’s _t_-test (two-tailed) in case of single comparisons, were used. _P_≤0.05 was considered statistically significant. For ERG studies, two-way ANOVAs were

computed to gauge the effects of the genotype across stimulus intensities, and the effects at individual intensities were assessed by _t_-tests after Holm–Bonferroni correction for the

multiple comparisons. ABBREVIATIONS * I/R: ischemia/reperfusion * A1: arginase 1 * A2: arginase 2 * AD: Alzheimer’s disease * TBI: traumatic brain injury * WT: wild-type * A2−/−: arginase

2-deficient mice * IOP: intraocular pressure * HPRT: hypoxanthine phosphoribosyltransferase * PFA: paraformaldehyde * GCL: ganglion cell layer * H&E: hematoxylin and eosin * INL: inner

nuclear layer * DHE: dihydroethedium * OCT: optimal cutting temperature * BSA: bovine serum albumin * PI: propidium iodide * ERG: electroretinogram * pSTR: positive scotopic threshold

response * nSTR: negative scotopic threshold response * OIR: oxygen-induced retinopathy * RIP-3: receptor interacting protein kinase-3 * GFAP: glial fibrillary acidic protein * ROS: reactive

oxygen species * SOD: superoxide dismutase * ONOO−: peroxynitrite * CAD: coronary artery disease * SMO: spermine oxidase * eNOS: endothelial nitric oxide synthase * NOS: nitric oxide

synthase REFERENCES * Kowluru RA, Kowluru A, Mishra M, Kumar B . Oxidative stress and epigenetic modifications in the pathogenesis of diabetic retinopathy. _Prog Retin Eye Res_ 2015; 48:

40–61. Article  CAS  Google Scholar  * Hartnett ME . Pathophysiology and mechanisms of severe retinopathy of prematurity. _Ophthalmology_ 2015; 122: 200–210. Article  Google Scholar  * Zhang

W, Liu H, Rojas M, Caldwell RW, Caldwell RB . Anti-inflammatory therapy for diabetic retinopathy. _Immunotherapy_ 2011; 3: 609–628. Article  CAS  Google Scholar  * Osborne NN, Casson RJ,

Wood JP, Chidlow G, Graham M, Melena J . Retinal ischemia: mechanisms of damage and potential therapeutic strategies. _Prog Retin Eye Res_ 2004; 23: 91–147. Article  CAS  Google Scholar  *

Cuenca N, Fernandez-Sanchez L, Campello L, Maneu V, De la Villa P, Lax P _et al_. Cellular responses following retinal injuries and therapeutic approaches for neurodegenerative diseases.

_Prog Retin Eye Res_ 2014; 43: 17–75. Article  CAS  Google Scholar  * Downie LE, Pianta MJ, Vingrys AJ, Wilkinson-Berka JL, Fletcher EL . Neuronal and glial cell changes are determined by

retinal vascularization in retinopathy of prematurity. _J Comp Neurol_ 2007; 504: 404–417. Article  CAS  Google Scholar  * Zheng L, Gong B, Hatala DA, Kern TS . Retinal ischemia and

reperfusion causes capillary degeneration: similarities to diabetes. _Invest Ophthalmol Vis Sci_ 2007; 48: 361–367. Article  Google Scholar  * Wang L, Li C, Guo H, Kern TS, Huang K, Zheng L

. Curcumin inhibits neuronal and vascular degeneration in retina after ischemia and reperfusion injury. _PLoS One_ 2011; 6: e23194. Article  CAS  Google Scholar  * Abcouwer SF, Lin CM,

Wolpert EB, Shanmugam S, Schaefer EW, Freeman WM _et al_. Effects of ischemic preconditioning and bevacizumab on apoptosis and vascular permeability following retinal ischemia-reperfusion

injury. _Invest Ophthalmol Vis Sci_ 2010; 51: 5920–5933. Article  Google Scholar  * Rosenbaum DM, Rosenbaum PS, Gupta H, Singh M, Aggarwal A, Hall DH _et al_. The role of the p53 protein in

the selective vulnerability of the inner retina to transient ischemia. _Invest Ophthalmol Vis Sci_ 1998; 39: 2132–2139. CAS  PubMed  Google Scholar  * Yokota H, Narayanan SP, Zhang W, Liu H,

Rojas M, Xu Z _et al_. Neuroprotection from retinal ischemia/reperfusion injury by NOX2 NADPH oxidase deletion. _Invest Ophthalmol Vis Sci_ 2011; 52: 8123–8131. Article  CAS  Google Scholar

  * Patel C, Rojas M, Narayanan SP, Zhang W, Xu Z, Lemtalsi T _et al_. Arginase as a mediator of diabetic retinopathy. _Front Immunol_ 2013; 4: 173. Article  Google Scholar  * Narayanan SP,

Suwanpradid J, Saul A, Xu Z, Still A, Caldwell RW _et al_. Arginase 2 deletion reduces neuro-glial injury and improves retinal function in a model of retinopathy of prematurity. _PLoS One_

2011; 6: e22460. Article  CAS  Google Scholar  * Narayanan SP, Xu Z, Putluri N, Sreekumar A, Lemtalsi T, Caldwell RW _et al_. Arginase 2 deficiency reduces hyperoxia-mediated retinal

neurodegeneration through the regulation of polyamine metabolism. _Cell Death Dis_ 2014; 5: e1075. Article  CAS  Google Scholar  * Suwanpradid J, Rojas M, Behzadian MA, Caldwell RW, Caldwell

RB . Arginase 2 deficiency prevents oxidative stress and limits hyperoxia-induced retinal vascular degeneration. _PLoS One_ 2014; 9: e110604. Article  Google Scholar  * Ash DE, Cox JD,

Christianson DW . Arginase: a binuclear manganese metalloenzyme. _Met Ions Biol Syst_ 2000; 37: 407–428. CAS  PubMed  Google Scholar  * Morris SM Jr . Regulation of enzymes of the urea cycle

and arginine metabolism. _Annu Rev Nutr_ 2002; 22: 87–105. Article  CAS  Google Scholar  * Miyanaka K, Gotoh T, Nagasaki A, Takeya M, Ozaki M, Iwase K _et al_. Immunohistochemical

localization of arginase II and other enzymes of arginine metabolism in rat kidney and liver. _Histochem J_ 1998; 30: 741–751. Article  CAS  Google Scholar  * Narayanan SP, Rojas M,

Suwanpradid J, Toque HA, Caldwell RW, Caldwell RB . Arginase in retinopathy. _Prog Retin Eye Res_ 2013; 36: 260–280. Article  CAS  Google Scholar  * Caldwell RB, Toque HA, Narayanan SP,

Caldwell RW . Arginase: an old enzyme with new tricks. _Trends Pharmacol Sci_ 2015; 36: 395–405. Article  CAS  Google Scholar  * Durante W, Johnson FK, Johnson RA . Arginase: a critical

regulator of nitric oxide synthesis and vascular function. _Clin Exp Pharmacol Physiol_ 2007; 34: 906–911. Article  CAS  Google Scholar  * Romero MJ, Iddings JA, Platt DH, Ali MI, Cederbaum

SD, Stepp DW _et al_. Diabetes-induced vascular dysfunction involves arginase I. _Am J Physiol Heart Circ Physiol_ 2012; 302: H159–H166. Article  CAS  Google Scholar  * Romero MJ, Platt DH,

Tawfik HE, Labazi M, El-Remessy AB, Bartoli M _et al_. Diabetes-induced coronary vascular dysfunction involves increased arginase activity. _Circ Res_ 2008; 102: 95–102. Article  CAS  Google

Scholar  * Erbas H, Aydogdu N, Kaymak K . Effects of N-acetylcysteine on arginase, ornithine and nitric oxide in renal ischemia-reperfusion injury. _Pharmacol Res_ 2004; 50: 523–527.

Article  CAS  Google Scholar  * Jung C, Gonon AT, Sjoquist PO, Lundberg JO, Pernow J . Arginase inhibition mediates cardioprotection during ischaemia-reperfusion. _Cardiovasc Res_ 2010; 85:

147–154. Article  CAS  Google Scholar  * Langle F, Roth E, Steininger R, Winkler S, Muhlbacher F . Arginase release following liver reperfusion. Evidence of hemodynamic action of arginase

infusions. _Transplantation_ 1995; 59: 1542–1549. Article  CAS  Google Scholar  * Reid KM, Tsung A, Kaizu T, Jeyabalan G, Ikeda A, Shao L _et al_. Liver I/R injury is improved by the

arginase inhibitor, N(omega)-hydroxy-nor-L-arginine (nor-NOHA). _Am J Physiol Gastrointest Liver Physiol_ 2007; 292: G512–G517. Article  CAS  Google Scholar  * Gronros J, Kiss A, Palmer M,

Jung C, Berkowitz D, Pernow J . Arginase inhibition improves coronary microvascular function and reduces infarct size following ischaemia-reperfusion in a rat model. _Acta Physiol (Oxf)_

2013; 208: 172–179. Article  CAS  Google Scholar  * Tratsiakovich Y, Gonon AT, Krook A, Yang J, Shemyakin A, Sjoquist PO _et al_. Arginase inhibition reduces infarct size via nitric oxide,

protein kinase C epsilon and mitochondrial ATP-dependent K+ channels. _Eur J Pharmacol_ 2013; 712: 16–21. Article  CAS  Google Scholar  * Kovamees O, Shemyakin A, Pernow J . Effect of

arginase inhibition on ischemia-reperfusion injury in patients with coronary artery disease with and without diabetes mellitus. _PLoS One_ 2014; 9: e103260. Article  Google Scholar  * Kan

MJ, Lee JE, Wilson JG, Everhart AL, Brown CM, Hoofnagle AN _et al_. Arginine deprivation and immune suppression in a mouse model of Alzheimer's disease. _J Neurosci_ 2015; 35:

5969–5982. Article  CAS  Google Scholar  * Shin WS, Berkowitz DE, Ryoo SW . Increased arginase II activity contributes to endothelial dysfunction through endothelial nitric oxide synthase

uncoupling in aged mice. _Exp Mol Med_ 2012; 44: 594–602. Article  CAS  Google Scholar  * Yu Y, Rajapakse AG, Montani JP, Yang Z, Ming XF . p38 mitogen-activated protein kinase is involved

in arginase-II-mediated eNOS-Uncoupling in Obesity. _Cardiovasc Diabetol_ 2014; 13: 113. Article  Google Scholar  * Bitner BR, Brink DC, Mathew LC, Pautler RG, Robertson CS . Impact of

arginase II on CBF in experimental cortical impact injury in mice using MRI. _J Cereb Blood Flow Metab_ 2010; 30: 1105–1109. Article  CAS  Google Scholar  * Schmid H, Renner M, Dick HB,

Joachim SC . Loss of inner retinal neurons after retinal ischemia in rats. _Invest Ophthalmol Vis Sci_ 2014; 55: 2777–2787. Article  Google Scholar  * Rosenbaum DM, Degterev A, David J,

Rosenbaum PS, Roth S, Grotta JC _et al_. Necroptosis, a novel form of caspase-independent cell death, contributes to neuronal damage in a retinal ischemia-reperfusion injury model. _J

Neurosci Res_ 2010; 88: 1569–1576. CAS  PubMed  Google Scholar  * Dvoriantchikova G, Degterev A, Ivanov D . Retinal ganglion cell (RGC) programmed necrosis contributes to

ischemia-reperfusion-induced retinal damage. _Exp Eye Res_ 2014; 123: 1–7. Article  CAS  Google Scholar  * Moriwaki K, Chan FK . RIP3: a molecular switch for necrosis and inflammation.

_Genes Dev_ 2013; 27: 1640–1649. Article  CAS  Google Scholar  * Lam TT, Abler AS, Tso MO . Apoptosis and caspases after ischemia-reperfusion injury in rat retina. _Invest Ophthalmol Vis

Sci_ 1999; 40: 967–975. CAS  PubMed  Google Scholar  * Takahashi K, Lam TT, Edward DP, Buchi ER, Tso MO . Protective effects of flunarizine on ischemic injury in the rat retina. _Arch

Ophthalmol_ 1992; 110: 862–870. Article  CAS  Google Scholar  * Lewis GP, Fisher SK . Up-regulation of glial fibrillary acidic protein in response to retinal injury: its potential role in

glial remodeling and a comparison to vimentin expression. _Int Rev Cytol_ 2003; 230: 263–290. Article  CAS  Google Scholar  * Zhao H, Joseph J, Fales HM, Sokoloski EA, Levine RL,

Vasquez-Vivar J _et al_. Detection and characterization of the product of hydroethidine and intracellular superoxide by HPLC and limitations of fluorescence. _Proc Natl Acad Sci USA_ 2005;

102: 5727–5732. Article  CAS  Google Scholar  * Saszik SM, Robson JG, Frishman LJ . The scotopic threshold response of the dark-adapted electroretinogram of the mouse. _J Physiol_ 2002; 543

(Pt 3): 899–916. Article  CAS  Google Scholar  * Chandra S, Romero MJ, Shatanawi A, Alkilany AM, Caldwell RB, Caldwell RW . Oxidative species increase arginase activity in endothelial cells

through the RhoA/Rho kinase pathway. _Br J Pharmacol_ 2012; 165: 506–519. Article  CAS  Google Scholar  * Pernow J, Kiss A, Tratsiakovich Y, Climent B . Tissue-specific up-regulation of

arginase I and II induced by p38 MAPK mediates endothelial dysfunction in type 1 diabetes mellitus. _Br J Pharmacol_ 2015; 172: 4684–4698. Article  CAS  Google Scholar  * Marathe C, Bradley

MN, Hong C, Lopez F, Ruiz de Galarreta CM, Tontonoz P _et al_. The arginase II gene is an anti-inflammatory target of liver X receptor in macrophages. _J Biol Chem_ 2006; 281: 32197–32206.

Article  CAS  Google Scholar  * Elms SC, Toque HA, Rojas M, Xu Z, Caldwell RW, Caldwell RB . The role of arginase I in diabetes-induced retinal vascular dysfunction in mouse and rat models

of diabetes. _Diabetologia_ 2013; 56: 654–662. Article  CAS  Google Scholar  * Wei Y, Gong J, Yoshida T, Eberhart CG, Xu Z, Kombairaju P _et al_. Nrf2 has a protective role against neuronal

and capillary degeneration in retinal ischemia-reperfusion injury. _Free Radic Biol Med_ 2011; 51: 216–224. Article  CAS  Google Scholar  * Chen B, Caballero S, Seo S, Grant MB, Lewin AS .

Delivery of antioxidant enzyme genes to protect against ischemia/reperfusion-induced injury to retinal microvasculature. _Invest Ophthalmol Vis Sci_ 2009; 50: 5587–5595. Article  Google

Scholar  * Xu Z, Cho H, Hartsock MJ, Mitchell KL, Gong J, Wu L _et al_. Neuroprotective role of Nrf2 for retinal ganglion cells in ischemia-reperfusion. _J Neurochem_ 2015; 133: 233–241.

Article  CAS  Google Scholar  * Casero RA, Pegg AE . Polyamine catabolism and disease. _Biochem J_ 2009; 421: 323–338. Article  CAS  Google Scholar  * Cho KJ, Kim JH, Park HY, Park CK .

Glial cell response and iNOS expression in the optic nerve head and retina of the rat following acute high IOP ischemia-reperfusion. _Brain Res_ 2011; 1403: 67–77. Article  CAS  Google

Scholar  * Zeng XX, Ng YK, Ling EA . Neuronal and microglial response in the retina of streptozotocin-induced diabetic rats. _Vis Neurosci_ 2000; 17: 463–471. Article  CAS  Google Scholar  *

Huang JF, Shang L, Zhang MQ, Wang H, Chen D, Tong JB _et al_. Differential neuronal expression of receptor interacting protein 3 in rat retina: involvement in ischemic stress response. _BMC

Neurosci_ 2013; 14: 16. Article  CAS  Google Scholar  * Da T, Verkman AS . Aquaporin-4 gene disruption in mice protects against impaired retinal function and cell death after ischemia.

_Invest Ophthalmol Vis Sci_ 2004; 45: 4477–4483. Article  Google Scholar  * Hein TW, Zhang C, Wang W, Chang CI, Thengchaisri N, Kuo L . Ischemia-reperfusion selectively impairs nitric

oxide-mediated dilation in coronary arterioles: counteracting role of arginase. _Faseb J_ 2003; 17: 2328–2330. Article  CAS  Google Scholar  * Shibuki H, Katai N, Yodoi J, Uchida K,

Yoshimura N . Lipid peroxidation and peroxynitrite in retinal ischemia-reperfusion injury. _Invest Ophthalmol Vis Sci_ 2000; 41: 3607–3614. CAS  PubMed  Google Scholar  * Nashine S, Liu Y,

Kim BJ, Clark AF, Pang IH . Role of C/EBP homologous protein in retinal ganglion cell death after ischemia/reperfusion injury. _Invest Ophthalmol Vis Sci_ 2015; 56: 221–231. Article  CAS

Google Scholar  * Chou JC, Rollins SD, Fawzi AA . Trypsin digest protocol to analyze the retinal vasculature of a mouse model. _J Vis Exp_ 2013; 76: e50489. Google Scholar  * Miller FJ Jr.,

Gutterman DD, Rios CD, Heistad DD, Davidson BL . Superoxide production in vascular smooth muscle contributes to oxidative stress and impaired relaxation in atherosclerosis. _Circ Res_ 1998;

82: 1298–1305. Article  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS We thank Ms. Tahira Lemtalsi and Ms. Ji Xing for technical assistance. This research was completed in

partial fulfillment of requirements for E Shosha’s PhD degree. The work was supported in part by grants from The National Institute of Health (NIH grant R01-EY11766 (RBC)), the Department of

Veterans Affairs, Veterans Health Administration (RBC), Office of Research and Development, Biomedical Laboratory Research and Development (BX001233), American Heart Association (AHA

15PRE25560007 (ES), 11SDG7440088 (SPN)) and the Culver Vision Discovery Institute at Augusta University. The contents do not represent the views of the Department of Veterans Affairs or the

United States Government. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript. AUTHOR INFORMATION Author notes *

Esraa Shosha and Zhimin Xu: These authors contributed equally to this work. AUTHORS AND AFFILIATIONS * Vascular Biology Center, Medical College of Georgia, Augusta University, Augusta, GA,

USA Esraa Shosha, Zhimin Xu, Modesto Rojas & Ruth B Caldwell * Vision Discovery Institute, Augusta University, Augusta, GA, USA Esraa Shosha, Zhimin Xu, Alan Saul, Modesto Rojas, Ruth B

Caldwell & S Priya Narayanan * Charlie Norwood VA Medical Center, Augusta, GA, USA Esraa Shosha, Zhimin Xu, Modesto Rojas & Ruth B Caldwell * Department of Ophthalmology, Asahikawa

Medical University, Asahikawa, Japan Harumasa Yokota * Department of Ophthalmology, Augusta University, Augusta, GA, USA Alan Saul * Department of Pharmacology and Toxicology, Augusta

University, Augusta, GA, USA R William Caldwell * Department of Occupational Therapy, College of Allied Health Sciences, Augusta University, Augusta, GA, USA S Priya Narayanan Authors *

Esraa Shosha View author publications You can also search for this author inPubMed Google Scholar * Zhimin Xu View author publications You can also search for this author inPubMed Google

Scholar * Harumasa Yokota View author publications You can also search for this author inPubMed Google Scholar * Alan Saul View author publications You can also search for this author

inPubMed Google Scholar * Modesto Rojas View author publications You can also search for this author inPubMed Google Scholar * R William Caldwell View author publications You can also search

for this author inPubMed Google Scholar * Ruth B Caldwell View author publications You can also search for this author inPubMed Google Scholar * S Priya Narayanan View author publications

You can also search for this author inPubMed Google Scholar CORRESPONDING AUTHORS Correspondence to Ruth B Caldwell or S Priya Narayanan. ETHICS DECLARATIONS COMPETING INTERESTS The authors

declare no conflict of interest. ADDITIONAL INFORMATION Edited by A Verkhratsky RIGHTS AND PERMISSIONS _Cell Death and Disease_ is an open-access journal published by _Nature Publishing

Group_. This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the article’s Creative

Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license

holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Shosha, E.,

Xu, Z., Yokota, H. _et al._ Arginase 2 promotes neurovascular degeneration during ischemia/reperfusion injury. _Cell Death Dis_ 7, e2483 (2016). https://doi.org/10.1038/cddis.2016.295

Download citation * Received: 25 April 2016 * Revised: 18 July 2016 * Accepted: 17 August 2016 * Published: 24 November 2016 * Issue Date: November 2016 * DOI:

https://doi.org/10.1038/cddis.2016.295 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
