ABSTRACT Our Solar System was formed from a cloud of gas and dust. Most of the dust mass is contained in amorphous silicates1, yet crystalline silicates are abundant throughout the Solar

System, reflecting the thermal and chemical alteration of solids during planet formation. (Even primitive bodies such as comets contain crystalline silicates2.) Little is known about the

evolution of the dust that forms Earth-like planets. Here we report spatially resolved detections and compositional analyses of these building blocks in the innermost two astronomical units

of three proto-planetary disks. We find the dust in these regions to be highly crystallized, more so than any other dust observed in young stars until now. In addition, the outer region of

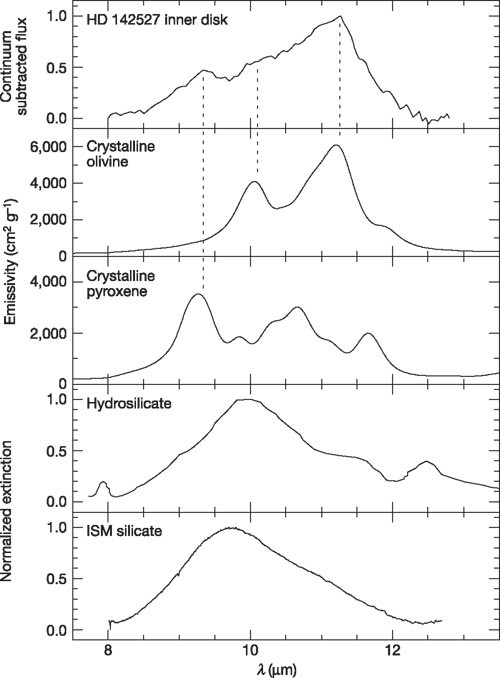

one star has equal amounts of pyroxene and olivine, whereas the inner regions are dominated by olivine. The spectral shape of the inner-disk spectra shows surprising similarity with Solar

System comets. Radial-mixing models naturally explain this resemblance as well as the gradient in chemical composition. Our observations imply that silicates crystallize before any

terrestrial planets are formed, consistent with the composition of meteorites in the Solar System. Access through your institution Buy or subscribe This is a preview of subscription content,

access via your institution ACCESS OPTIONS Access through your institution Subscribe to this journal Receive 51 print issues and online access $199.00 per year only $3.90 per issue Learn

more Buy this article * Purchase on SpringerLink * Instant access to full article PDF Buy now Prices may be subject to local taxes which are calculated during checkout ADDITIONAL ACCESS

OPTIONS: * Log in * Learn about institutional subscriptions * Read our FAQs * Contact customer support SIMILAR CONTENT BEING VIEWED BY OTHERS DUST FROM SUPERNOVAE AND THEIR PROGENITORS IN

THE SOLAR NEBULA Article 01 August 2022 THE COSMOCHEMISTRY OF PLANETARY SYSTEMS Article 28 April 2025 UV-DRIVEN CHEMISTRY AS A SIGNPOST OF LATE-STAGE PLANET FORMATION Article 08 December

2022 REFERENCES * Kemper, F., Vriend, W. J. & Tielens, A. G. G. M. The absence of crystalline silicates in the diffuse interstellar medium. _Astrophys. J._ 609, 826–837 (2004) Article

ADS  CAS  Google Scholar  * Hanner, M. S., Lynch, D. K. & Russell, R. W. The 8-13 micron spectra of comets and the composition of silicate grains. _Astrophys. J._ 425, 274–285 (1994)

Article  ADS  Google Scholar  * Haisch, K. E., Lada, E. A. & Lada, C. J. Disk frequencies and lifetimes in young clusters. _Astrophys. J. Lett._ 533, L153–L156 (2001) Article  ADS

Google Scholar  * Beckwith, S. V. W., Henning, T. & Nakagawa, Y. Dust properties and assembly of large particles in protoplanetary disks. In _Protostars and Planets IV_ (eds Mannings,

V., Boss, A. P. & Russell, S. S.) 533–558 (Univ. Arizona Press, 2000) * Bradley, J. in _Lecture Notes in Physics_ Vol. 609 _Astromineralogy_ (ed. Henning, Th.) 217–235 (2003). * Leinert,

C. et al. Ten-micron instrument MIDI: getting ready for observations on the VLTI. in _Interferometry for Optical Astronomy II_ (ed. Traub, W.A.). _Proc. SPIE_ 4838, 893–904 (2003). *

Eisner, J. A., Lane, B. F., Akeson, R. L., Hillenbrand, L. A. & Sargent, A. I. Near-infrared interferometric measurements of Herbig Ae/Be Stars. _Astrophys. J._ 588, 360–372 (2003)

Article  ADS  Google Scholar  * Leinert, C. et al. Mid-infrared sizes of circumstellar disks around Herbig Ae/Be stars measured with MIDI on the VLTI. _Astron. Astrophys._ 423, 537–548

(2004) Article  ADS  CAS  Google Scholar  * Molster, F. J. & Waters, L. B. F. M. in _Lecture Notes in Physics_ Vol. 609 _Astromineralogy_ (ed. Henning, Th.) 121–170 (2003). * Bouwman, J.

et al. Processing of silicate dust grains in Herbig Ae/Be systems. _Astron. Astrophys._ 375, 950–962 (2001) Article  ADS  CAS  Google Scholar  * Gail, H.-P. Radial mixing in protoplanetary

accretion disks. IV. Metamorphosis of the silicate dust complex. _Astron. Astrophys._ 413, 571–591 (2004) Article  ADS  CAS  Google Scholar  * Nuth, J. A., Rietmeijer, F. J. M. & Hill,

H. G. M. Condensation processes in astrophysical environments: The composition and structure of cometary grains. _Meteorit. Planet. Sci._ 37, 1579–1590 (2002) Article  ADS  CAS  Google

Scholar  * Harker, D. E. & Desch, S. J. Annealing of silicate dust by nebular shocks at 10 AU. _Astrophys. J. Lett._ 565, L109–L112 (2002) Article  ADS  CAS  Google Scholar  * Pilipp,

W., Hartquist, T. W., Morfill, G. E. & Levy, E. H. Chondrule formation by lightning in the Protosolar Nebula? _Astron. Astrophys._ 331, 121–146 (1998) ADS  CAS  Google Scholar  * Desch,

S. J. & Cuzzi, J. N. The generation of lighting in the solar nebula. _Icarus_ 143, 87–105 (2000) Article  ADS  CAS  Google Scholar  * Brearley, A. & Jones, R. H. in _Planetary

Materials_ (ed. Papike, J.) Ch. 3 (The Mineralogical Society of America, 1998) Google Scholar  * Sandford, S. A. & Walker, R. M. Laboratory infrared transmission spectra of individual

interplanetary dust particles from 2.5 to 25 microns. _Astrophys. J._ 291, 838–851 (1985) Article  ADS  CAS  Google Scholar  * Crovisier, J. et al. The spectrum of Comet Hale-Bopp (C/1995

01) observed with the Infrared Space Observatory at 2.9 AU from the Sun. _Science_ 275, 1904–1907 (1997) Article  ADS  CAS  Google Scholar  * Molster, F. J., Waters, L. B. F. M., Tielens, A.

G. G. M., Koike, C. & Chihara, H. Crystalline silicate dust around evolved stars. III. A correlations study of crystalline silicate features. _Astron. Astrophys._ 382, 241–255 (2002)

Article  ADS  CAS  Google Scholar  * Malfait, K. et al. The spectrum of the young star HD 100546 observed with the Infrared Space Observatory. _Astron. Astrophys._ 332, L25–L28 (1998) ADS

Google Scholar  * Grady, C. A. et al. Infalling planetesimals in pre-main stellar systems. In _Protostars and Planets IV_ (eds Mannings, V., Boss, A. P. & Russell, S. S.) 613–638 (Univ.

Arizona Press, 2000) * Acke, B. & van den Ancker, M. E. ISO spectroscopy of disks around Herbig Ae/Be stars. _Astron. Astrophys._(in the press); preprint at

〈http://xxx.lanl.gov/astro-ph/0406050〉 (2004) * Wetherill, G. W. Formation of the earth. _Annu. Rev. Earth Planet. Sci._ 18, 205–256 (1990) Article  ADS  Google Scholar  * Dorschner, J.,

Begemann, B., Henning, T., Jäger, C. & Mutschke, H. Steps toward interstellar silicate mineralogy. _Astron. Astrophys._ 300, 503–520 (1995) ADS  CAS  Google Scholar  * Servoin, J. L.

& Piriou, B. Infrared reflectivity and Raman scattering of Mg2SiO4 single crystal. _Phys. Status Solidi_ 55, 677–686 (1973) Article  CAS  Google Scholar  * Jäger, C. et al. Steps toward

interstellar silicate mineralogy. IV. The crystalline revolution. _Astron. Astrophys._ 339, 904–916 (1998) ADS  Google Scholar  * Spitzer, W. G. & Kleinman, D. A. Infrared lattice bands

of quartz. _Phys. Rev._ 121, 1324–1335 (1961) Article  ADS  CAS  Google Scholar  * Min, M., Hovenier, J. W. & de Koter, A. Shape effects in scattering and absorption by randomly oriented

particles small compared to the wavelength. _Astron. Astrophys._ 404, 35–46 (2003) Article  ADS  CAS  Google Scholar  * Chihara, H., Koike, C. & Tsuchiyama, A. Low-temperature optical

properties of silicate particles in the far-infrared region. _Publ. Astron. Soc. Jpn_ 53, 243–250 (2001) Article  ADS  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS The data is

based on observations obtained at the European Southern Observatory (ESO), Chile. We thank all those involved in building VLTI and MIDI. We thank V. Icke for providing the illustration shown

in Fig. 2. C.P. Dullemond is acknowledged for many discussions. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Astronomical Institute “Anton Pannekoek”, University of Amsterdam, Kruislaan

403, 1098 SJ, Amsterdam, The Netherlands R. van Boekel, M. Min, L.B.F.M. Waters, C. Dominik & A. de Koter * European Southern Observatory, Karl-Schwarzschild-Strasse 2, D-85748,

Garching, Germany R. van Boekel, A. Richichi, S. Morel, F. Paresce, M. Schöller & M. Wittkowski * Max-Planck-Institut für Astronomie Heidelberg, Königstuhl 17, 69117, Heidelberg, Germany

Ch. Leinert, O. Chesneau, U. Graser, Th. Henning, R. Köhler & F. Przygodda * Instituut voor Sterrenkunde, K.U. Leuven, Celestijnenlaan 200B, 3001, Heverlee, Belgium L.B.F.M. Waters *

Leiden Observatory, Niels Bohrweg 2, 2333 CA, Leiden, The Netherlands W. Jaffe & J. de Jong * Observatoire de Bordeaux, 2, rue de l'Observatoire, F-33270, Floirac, France A. Dutrey

& F. Malbet * Observatoire de la Côte d'Azur, Département Fresnel UMR 6528, BP 4229, 06034, Nice, Cedex 4, France B. Lopez * Laboratoire d'Etudes Spatiales et

d'Instrumentation en Astrophysique, Observatoire de Paris, section de Meudon, 5 place Jule Janssen, 92190, Meudon, France G. Perrin * Max-Planck-Institut für Radioastronomie, Auf dem

Hügel 69, 53121, Bonn, Germany Th. Preibisch Authors * R. van Boekel View author publications You can also search for this author inPubMed Google Scholar * M. Min View author publications

You can also search for this author inPubMed Google Scholar * Ch. Leinert View author publications You can also search for this author inPubMed Google Scholar * L.B.F.M. Waters View author

publications You can also search for this author inPubMed Google Scholar * A. Richichi View author publications You can also search for this author inPubMed Google Scholar * O. Chesneau View

author publications You can also search for this author inPubMed Google Scholar * C. Dominik View author publications You can also search for this author inPubMed Google Scholar * W. Jaffe

View author publications You can also search for this author inPubMed Google Scholar * A. Dutrey View author publications You can also search for this author inPubMed Google Scholar * U.

Graser View author publications You can also search for this author inPubMed Google Scholar * Th. Henning View author publications You can also search for this author inPubMed Google Scholar

* J. de Jong View author publications You can also search for this author inPubMed Google Scholar * R. Köhler View author publications You can also search for this author inPubMed Google

Scholar * A. de Koter View author publications You can also search for this author inPubMed Google Scholar * B. Lopez View author publications You can also search for this author inPubMed

Google Scholar * F. Malbet View author publications You can also search for this author inPubMed Google Scholar * S. Morel View author publications You can also search for this author

inPubMed Google Scholar * F. Paresce View author publications You can also search for this author inPubMed Google Scholar * G. Perrin View author publications You can also search for this

author inPubMed Google Scholar * Th. Preibisch View author publications You can also search for this author inPubMed Google Scholar * F. Przygodda View author publications You can also

search for this author inPubMed Google Scholar * M. Schöller View author publications You can also search for this author inPubMed Google Scholar * M. Wittkowski View author publications You

can also search for this author inPubMed Google Scholar CORRESPONDING AUTHOR Correspondence to R. van Boekel. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare that they have no

competing financial interests. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION Contains a more detailed discussion of our data analysis and error estimation: Fitting procedure, error

analysis, Supplementary Figure 1 and references. (PDF 97 kb) RIGHTS AND PERMISSIONS Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE van Boekel, R., Min, M., Leinert, C. _et

al._ The building blocks of planets within the ‘terrestrial’ region of protoplanetary disks. _Nature_ 432, 479–482 (2004). https://doi.org/10.1038/nature03088 Download citation * Received:

05 May 2004 * Accepted: 05 October 2004 * Issue Date: 25 November 2004 * DOI: https://doi.org/10.1038/nature03088 SHARE THIS ARTICLE Anyone you share the following link with will be able to
