ABSTRACT The remarkable optical properties of metal nanoparticles are governed by the excitation of localized surface plasmon resonances (LSPRs). The sensitivity of each LSPR mode, whose


spatial distribution and resonant energy depend on the nanoparticle structure, composition and environment, has given rise to many potential photonic, optoelectronic, catalytic,


photovoltaic, and gas- and bio-sensing applications1,2,3. However, the precise interplay between the three-dimensional (3D) nanoparticle structure and the LSPRs is not always fully


understood and a spectrally sensitive 3D imaging technique is needed to visualize the excitation on the nanometre scale. Here we show that 3D images related to LSPRs of an individual silver


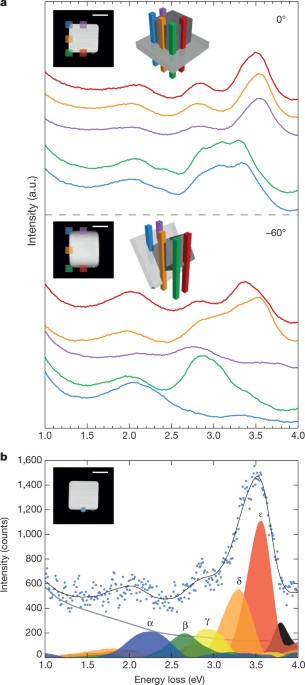

nanocube can be reconstructed through the application of electron energy-loss spectrum imaging4, mapping the excitation across a range of orientations, with a novel combination of


non-negative matrix factorization5,6, compressed sensing7,8 and electron tomography9. Our results extend the idea of substrate-mediated hybridization of dipolar and quadrupolar modes


predicted by theory, simulations, and electron and optical spectroscopy10,11,12, and provide experimental evidence of higher-energy mode hybridization. This work represents an advance both


in the understanding of the optical response of noble-metal nanoparticles and in the probing, analysis and visualization of LSPRs. Access through your institution Buy or subscribe This is a


preview of subscription content, access via your institution ACCESS OPTIONS Access through your institution Subscribe to this journal Receive 51 print issues and online access $199.00 per


year only $3.90 per issue Learn more Buy this article * Purchase on SpringerLink * Instant access to full article PDF Buy now Prices may be subject to local taxes which are calculated during


checkout ADDITIONAL ACCESS OPTIONS: * Log in * Learn about institutional subscriptions * Read our FAQs * Contact customer support SIMILAR CONTENT BEING VIEWED BY OTHERS OPTICAL SPECTRA OF


SILVER CLUSTERS AND NANOPARTICLES FROM 4 TO 923 ATOMS FROM THE TDDFT+_U_ METHOD Article Open access 25 October 2024 LARGE FIELD-OF-VIEW PLASMONIC SCATTERING IMAGING AND SENSING OF


NANOPARTICLES WITH ISOTROPIC POINT-SPREAD-FUNCTION Article Open access 02 June 2025 SIMPLE EXPERIMENTAL PROCEDURES TO DISTINGUISH PHOTOTHERMAL FROM HOT-CARRIER PROCESSES IN PLASMONICS


Article Open access 28 June 2020 REFERENCES * Maier, S. A. & Atwater, H. A. Plasmonics: localization and guiding of electromagnetic energy in metal/dielectric structures. _J. Appl.


Phys._ 98, 011101 (2005) Article  ADS  Google Scholar  * Schuller, J. A. et al. Plasmonics for extreme light concentration and manipulation. _Nature Mater._ 9, 193–204 (2010) Article  ADS


CAS  Google Scholar  * Anker, J. N. et al. Biosensing with plasmonic nanosensors. _Nature Mater._ 7, 442–453 (2008) Article  ADS  CAS  Google Scholar  * Jeanguillaume, C. & Colliex, C.


Spectrum-image: the next step in EELS digital acquisition and processing. _Ultramicroscopy_ 28, 252–257 (1989) Article  Google Scholar  * Paatero, P. & Tapper, U. Positive matrix


factorization: a non-negative factor model with optimal utilization of error estimates of data values. _Environmetrics_ 5, 111–126 (1994) Article  Google Scholar  * Lee, D. D. & Seung,


H. S. Learning the parts of objects by non-negative matrix factorization. _Nature_ 401, 788–791 (1999) Article  ADS  CAS  PubMed  Google Scholar  * Donoho, D. L. Compressed sensing. _IEEE


Trans. Inf. Theory_ 52, 1289–1306 (2006) Article  MathSciNet  Google Scholar  * Candes, E. J., Romberg, J. & Tao, T. Robust uncertainty principles: exact signal reconstruction from


highly incomplete frequency information. _IEEE Trans. Inf. Theory_ 52, 489–509 (2006) Article  MathSciNet  Google Scholar  * Leary, R., Saghi, Z., Midgley, P. A. & Holland, D. J.


Compressed sensing electron tomography. _Ultramicroscopy_ 131, 70–91 (2013) Article  CAS  Google Scholar  * Ringe, E. et al. Unraveling the effects of size, composition, and substrate on the


localized surface plasmon resonance frequencies of gold and silver nanocubes: a systematic single-particle approach. _J. Phys. Chem. C_ 114, 12511–12516 (2010) Article  CAS  Google Scholar


  * Zhang, S., Bao, K., Halas, N. J., Xu, H. & Nordlander, P. Substrate-induced Fano resonances of a plasmonic nanocube: a route to increased-sensitivity localized surface plasmon


resonance sensors revealed. _Nano Lett._ 11, 1657–1663 (2011) Article  ADS  CAS  PubMed  Google Scholar  * Mazzucco, S. et al. Ultralocal modification of surface plasmons properties in


silver nanocubes. _Nano Lett._ 12, 1288–1294 (2012) Article  ADS  CAS  PubMed  Google Scholar  * Kneipp, K., Kneipp, H., Itzkan, I., Dasari, R. R. & Feld, M. S. Surface-enhanced Raman


scattering and biophysics. _J. Phys. Condens. Matter_ 14, R597 (2002) Article  ADS  CAS  Google Scholar  * Nelayah, J. et al. Mapping surface plasmons on a single metallic nanoparticle.


_Nature Phys._ 3, 348–353 (2007) Article  ADS  CAS  Google Scholar  * Yurtsever, A., van der Veen, R. M. & Zewail, A. H. Subparticle ultrafast spectrum imaging in 4D electron microscopy.


_Science_ 335, 59–64 (2012) Article  ADS  CAS  PubMed  Google Scholar  * Sherry, L. J. et al. Localized surface plasmon resonance spectroscopy of single silver nanocubes. _Nano Lett._ 5,


2034–2038 (2005) Article  ADS  CAS  PubMed  Google Scholar  * Korte, K. E., Skrabalak, S. E. & Xia, Y. Rapid synthesis of silver nanowires through a CuCl-or CuCl2-mediated polyol


process. _J. Mater. Chem._ 18, 437–441 (2008) Article  CAS  Google Scholar  * Nelayah, J. et al. Direct imaging of surface plasmon resonances on single triangular silver nanoprisms at


optical wavelength using low-loss EFTEM imaging. _Opt. Lett._ 34, 1003–1005 (2009) Article  ADS  CAS  PubMed  Google Scholar  * Nicoletti, O. et al. Surface plasmon modes of a single silver


nanorod: an electron energy loss study. _Opt. Express_ 19, 15371–15379 (2011) Article  ADS  CAS  PubMed  Google Scholar  * García de Abajo, F. J. Optical excitations in electron microscopy.


_Rev. Mod. Phys._ 82, 209–275 (2010) Article  ADS  Google Scholar  * Comon, P. _Handbook of Blind Source Separation: Independent Component Analysis and Applications_ (Academic, 2010) Google


Scholar  * de la Peña, F. et al. Mapping titanium and tin oxide phases using EELS: an application of independent component analysis. _Ultramicroscopy_ 111, 169–176 (2011) Article  Google


Scholar  * Langbein, D. Normal modes at small cubes and rectangular particles. _J. Phys. Math. Gen._ 9, 627–644 (1976) Article  ADS  Google Scholar  * Fuchs, R. Theory of the optical


properties of ionic crystal cubes. _Phys. Rev. B_ 11, 1732–1740 (1975) Article  ADS  CAS  Google Scholar  * Lade, S. J., Paganin, D. & Morgan, M. J. Electron tomography of


electromagnetic fields, potentials and sources. _Opt. Commun._ 253, 392–400 (2005) Article  ADS  CAS  Google Scholar  * Hohenester, U., Ditlbacher, H. & Krenn, J. R. Electron-energy-loss


spectra of plasmonic nanoparticles. _Phys. Rev. Lett._ 103, 106801 (2009) Article  ADS  Google Scholar  * Boudarham, G. & Kociak, M. Modal decompositions of the local electromagnetic


density of states and spatially resolved electron energy loss probability in terms of geometric modes. _Phys. Rev. B_ 85, 245447 (2012) Article  ADS  Google Scholar  * García de Abajo, F. J.


Relativistic energy loss and induced photon emission in the interaction of a dielectric sphere with an external electron beam. _Phys. Rev. B_ 59, 3095–3107 (1999) Article  ADS  Google


Scholar  * Geuquet, N. & Henrard, L. EELS and optical response of a noble metal nanoparticle in the frame of a discrete dipole approximation. _Ultramicroscopy_ 110, 1075–1080 (2010)


Article  CAS  Google Scholar  * Keenan, M. R. & Kotula, P. G. Accounting for Poisson noise in the multivariate analysis of ToF-SIMS spectrum images. _Surf. Interface Anal._ 36, 203–212


(2004) Article  CAS  Google Scholar  * Lin, C.-J. Projected gradient methods for nonnegative matrix factorization. _Neural Comput._ 19, 2756–2779 (2007) Article  MathSciNet  PubMed  Google


Scholar  * Lustig, M., Donoho, D. & Pauly, J. M. Sparse MRI: the application of compressed sensing for rapid MR imaging. _Magn. Reson. Med._ 58, 1182–1195 (2007) Article  PubMed  Google


Scholar  * Johnson, P. B. & Christy, R. W. Optical constants of the noble metals. _Phys. Rev. B_ 6, 4370–4379 (1972) Article  ADS  CAS  Google Scholar  * Johnson, W. L., Kim, S. A.,


Utegulov, Z. N., Shaw, J. M. & Draine, B. T. Optimization of arrays of gold nanodisks for plasmon-mediated Brillouin light scattering. _J. Phys. Chem. C_ 113, 14651–14657 (2009) Article


  CAS  Google Scholar  * Taubman, D. S. & Marcellin, M. W. JPEG2000: standard for interactive imaging. _Proc. IEEE_ 90, 1336–1357 (2002) Article  Google Scholar  * Fessler, J. A. &


Sutton, B. P. Nonuniform fast Fourier transforms using min-max interpolation. _IEEE Trans. Signal Process._ 51, 560–574 (2003) Article  ADS  MathSciNet  Google Scholar  * Buckheit, J. B.


& Donoho, D. L. Wavelab and reproducible research. _Lect. Notes Stat._ 103, 55–81 (1995) Article  Google Scholar  * Arslan, I., Tong, J. R. & Midgley, P. A. Reducing the missing


wedge: high-resolution dual axis tomography of inorganic materials. _Ultramicroscopy_ 106, 994–1000 (2006) Article  CAS  PubMed  Google Scholar  * Tong, J., Arslan, I. & Midgley, P. A


novel dual-axis iterative algorithm for electron tomography. _J. Struct. Biol._ 153, 55–63 (2006) Article  PubMed  Google Scholar  * Laurberg, H., Christensen, M. G., Plumbley, M. D.,


Hansen, L. K. & Jensen, S. H. Theorems on positive data: on the uniqueness of NMF. _Comput. Intell. Neurosci._ 2008, 764206 (2008) Article  PubMed  Google Scholar  * Gilbert, P.


Iterative methods for the three-dimensional reconstruction of an object from projections. _J. Theor. Biol._ 36, 105–117 (1972) Article  CAS  Google Scholar  * Palik, E. D. _Handbook of


Optical Constants of Solids_ Vol. 1, 350–357 (Academic, 1998) Google Scholar  * Agulleiro, J. I. & Fernandez, J. J. Fast tomographic reconstruction on multicore computers.


_Bioinformatics_ 27, 582–583 (2011) Article  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS We acknowledge the Nano Research Facility (NRF), School of Engineering and Applied


Science, Washington University, St Louis, USA for the nanoparticle synthesis. The NRF is a member of the US National Nanotechnology Infrastructure Network, supported by the US National


Science Foundation under NSF award no. ECS-0335765. F.d.l.P. and C.D. acknowledge funding from the ERC under grant no. 259619 PHOTO EM. C.D. acknowledges the Royal Society for funding.


P.A.M. and O.N. acknowledge financial support from the European Union’s Seventh Framework Programme (FP/2007-2013) under the European Research Council ERC Grant Agreement 291522-3DIMAGE and


under Grant Agreement 312483-ESTEEM2 (Integrated Infrastructure Initiative – I3). D.J.H. acknowledges Microsoft Research Connections and the EPSRC (grants nos EP/K008218/1 and EP/K039318/1)


for financial support. We thank A. Howie, M. Kociak, E. Ringe and S. M. Collins for discussions and FEI (in particular E. Yucelen and S. Lazar) for access to an FEI Titan Microscope at the


FEI Nanoport in Eindhoven. AUTHOR INFORMATION Author notes * Olivia Nicoletti and Francisco de la Peña: These authors contributed equally to this work. AUTHORS AND AFFILIATIONS * Department


of Materials Science and Metallurgy, University of Cambridge, Pembroke Street, Cambridge CB2 3QZ, UK, Olivia Nicoletti, Francisco de la Peña, Rowan K. Leary, Caterina Ducati & Paul A.


Midgley * Department of Chemical Engineering and Biotechnology, University of Cambridge, Pembroke Street, Cambridge CB2 3RA, UK, Daniel J. Holland Authors * Olivia Nicoletti View author


publications You can also search for this author inPubMed Google Scholar * Francisco de la Peña View author publications You can also search for this author inPubMed Google Scholar * Rowan


K. Leary View author publications You can also search for this author inPubMed Google Scholar * Daniel J. Holland View author publications You can also search for this author inPubMed Google


Scholar * Caterina Ducati View author publications You can also search for this author inPubMed Google Scholar * Paul A. Midgley View author publications You can also search for this author


inPubMed Google Scholar CONTRIBUTIONS P.A.M. and O.N. designed the experiment. O.N. performed the electron microscopy. F.d.l.P. performed simulations and data analysis. R.K.L. and D.J.H.


performed compressed sensing electron tomography. All authors interpreted and discussed the experimental results and wrote and edited the manuscript. CORRESPONDING AUTHOR Correspondence to


Paul A. Midgley. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing financial interests. EXTENDED DATA FIGURES AND TABLES EXTENDED DATA FIGURE 1 RE-PROJECTIONS OF THE


LSPR COMPONENTS. Re-projections of the reconstructed 3D volumes of the five LSPR components, at the same tilt angles as the experimental data acquisition. Letters α–ε correspond to those of


Figs 1–3. The orientation is as in Fig. 1, with the substrate–cube interface towards the top of the image at negative tilts. To exclude false regions of localized intensity that arose at the


periphery of some of the reconstruction volumes (owing to the imperfections involved in seeking a tomographic reconstruction from so few tilt-series images), the re-projected volume was


restricted to that immediately surrounding the nanocube and LSPRs. EXTENDED DATA FIGURE 2 ENERGY-FILTERED SERIES OF THE STEM EELS SPECTRUM IMAGES. Energy filtered series for the 0° tilt (A)


and the −60° (B) STEM EELS spectrum images. The images are limited to the range of interest between 1 and 4 eV for LSPRs of the silver nanocube. The EELS signal in the images is integrated


over an energy window 0.2 eV wide. EXTENDED DATA FIGURE 3 DDA EELS SIMULATIONS OF A SILVER NANOCUBE. A, B, DDA EELS simulated as functions of position (as shown by the blue dotted line) for


a 100-nm silver cube with rounded corners in vacuum with dielectric function tabulated in ref. 33 (A), and for a 100-nm silver cube with rounded corners in vacuum with dielectric function


tabulated in ref. 42 (B). C, 2D tomographic reconstructions of the five spectral features identified in A and B (C1, C2, C3, E and F), made from a tilt series of simulated spectra in which


the cube is rotated about a cube axis perpendicular to the beam. The five spectral features correspond to lowest-energy (dipole) corner (C1), higher-energy corner (C2 and C3), edge (E) and


face (F) components. We note that the individual components C2 and C3 are not separated if the dielectric tabulation in ref. 42 is used, as in B. Each reconstruction is scaled independently.


There are significant negative values only in the reconstruction of the C3 component, which corresponds to a singly degenerate octupole mode. Tomographic reconstructions made from this tilt


series were obtained using SIRT41, implemented using the TOMO3D software package43. SUPPLEMENTARY INFORMATION 3D RENDERING OF THE LSPR COMPONENTS. This video shows a combined 3D rendering


of the LSPR components, as displayed in Fig. 3 of the manuscript. (MPG 16698 kb) 3D PERSPECTIVE VIEW OF EACH LSPR COMPONENT. This video shows a 3D perspective view of each LSPR component, in


respective energy order, leading to a combined 3D rendering, as displayed in Fig. 3 of the manuscript. (MPG 28893 kb) POWERPOINT SLIDES POWERPOINT SLIDE FOR FIG. 1 POWERPOINT SLIDE FOR FIG.
