Download PDF Article Open access Published: 17 August 2018 Net-Net Auto Machine Learning (AutoML) Prediction of Complex Ecosystems Enrique Barreiro1,2,3, Cristian R. Munteanu1, Maykel


Cruz-Monteagudo2,3, Alejandro Pazos4 & …Humbert González-Díaz  ORCID: orcid.org/0000-0002-9392-27975,6 Show authors Scientific Reports volume 8, Article number: 12340 (2018) Cite this


article


3772 Accesses


9 Citations


2 Altmetric


Metrics details

Subjects Ecological networksScientific data Abstract


Biological Ecosystem Networks (BENs) are webs of biological species (nodes) establishing trophic relationships (links). Experimental confirmation of all possible links is difficult and


generates a huge volume of information. Consequently, computational prediction becomes an important goal. Artificial Neural Networks (ANNs) are Machine Learning (ML) algorithms that may be


used to predict BENs, using as input Shannon entropy information measures (Shk) of known ecosystems to train them. However, it is difficult to select a priori which ANN topology will have a


higher accuracy. Interestingly, Auto Machine Learning (AutoML) methods focus on the automatic selection of the more efficient ML algorithms for specific problems. In this work, a preliminary


study of a new approach to AutoML selection of ANNs is proposed for the prediction of BENs. We call it the Net-Net AutoML approach, because it uses for the first time Shk values of both


networks involving BENs (networks to be predicted) and ANN topologies (networks to be tested). Twelve types of classifiers have been tested for the Net-Net model including linear, Bayesian,


trees-based methods, multilayer perceptrons and deep neuronal networks. The best Net-Net AutoML model for 338,050 outputs of 10 ANN topologies for links of 69 BENs was obtained with a deep


fully connected neuronal network, characterized by a test accuracy of 0.866 and a test AUROC of 0.935. This work paves the way for the application of Net-Net AutoML to other systems or ML


algorithms.

Similar content being viewed by others Multiple thresholds and trajectories of microbial biodiversity predicted across browning gradients by neural networks and decision tree


learning Article Open access 16 August 2021 A novel hybrid model for species distribution prediction using neural networks and Grey Wolf Optimizer algorithm Article Open access 20 May 2024


A study of combination of autoencoders and boosted Big-Bang crunch theory architectures for Land-Use classification using remotely sensed imagery Article Open access 02 May 2025 Introduction


Many important molecular, living, economical, and other complex systems may be described as complex networks of i parts or nodes interconnected by links, edges, bonds, ties, or


relationships1,2,3,4,5,6,7. The volume of information about all these collections of nodes and links is so large that it is impossible for a single person to remember and rationalize all


possible connections in known networks. Consequently, it is even more difficult to assign/predict correct connections in new cases. This problem can be solved using Machine Learning (ML)


models. In this area, ML models used as input variables are able to quantify structural information of the system. The process has been applied to multiple levels, ranging from the


prediction of drug-target networks in molecules to the construction of complex biological networks8,9,10,11.


Specifically, a molecular or living complex system can be explained using numerical parameters that quantify information about the structure of the system. In information theory, Shannon


entropy quantifies the information contained in a message, usually in bits. The concept was introduced by Claude E. Shannon in his 1948 paper “A Mathematical Theory of Communication”12. With


the pass of time, the Shannon entropy information measures (Shk) of different types and other related information measures have become commonly used indices in quantifying information of


the system under study in ML modelling13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29.


In any case, developing ML models using as input Shk values involves, as in other ML problems, the application of data pre-processing variable selection and other techniques. Next, it is


necessary to a priori select one or more ML algorithms and train/validate them to seek the final ML model. Consequently, non-experts in ML may encounter difficulties to accomplish this goal.


Specifically, in the case of complex molecular and living systems, a non-expert may find it difficult to decide a priori which ML algorithms should be selected to develop the model. In this


context, Automated Machine Learning (AutoML) may have an important role in automatically selecting ML algorithms during the development of practical ML applications by non-experts30,31.


This work proposes for the first time the use of Shk values to quantify both the structure of the complex biological system to be predicted and the structure of the ML algorithm to be


selected for this task. To this end, a preliminary proof-of-concept experiment is carried out, focusing on a specific class of complex biological systems, and a specific type of ML


algorithms. Biological Ecosystem Networks (BENs) have been selected to play the role of a complex biological system.


In addition, Artificial Neural Networks (ANN) have been selected to represent the ML algorithms. The current study uses the entropy values Shk(Ai) and Shk(Bj) as inputs for different pairs


of species in the BENs, of the systems under study. The Shk(ANNj) values calculated are also used as inputs for different ANN topologies. In fact, Ecosystems represent one of the most


important examples of complex systems. They are a clear example of network-like structures with known procedures to calculate the Shk values32,33,34. In this sense, our group reported


different ML models that evaluate the structure of parasite-host webs to predict the interactions between species in different networks35,36,37. In one of our previous works, special


emphasis has been placed on the use of Shk information measures to codify structural information in this type of ML studies38. On the other hand, ANNs have been selected because of their


more apparent network-like structure, and because they are a useful tool to solve this kind of ML problems. In fact, ANNs are powerful bio-inspired algorithms able to learn/infer large


datasets39,40,41,42. ANNs are also able to learn topology patterns in large datasets of bio-systems and other complex networks43. This work proposes the calculation of Shk information


indices in both sets of networks: BENs and ANNs. That is why, it has been called a Net-Net AutoML approach. Last, an AutoML linear model is sought using these indices as input. This Net-Net


AutoML model could be employed to screen different ANN topologies in order to pre-select the one expected to correctly predict BEN structures before training it.

Results


This work introduces for the first time a new type of algorithm to find the best ANNs that predict BENs. The main steps of the methodology are described in Fig. 1. This is the first report


of a Net-Net AutoML model for ANN screening, with the subsequent saving of time and computational resources in the prediction of Complex Networks. The BEN node pairs and the ANN classifiers


that were trained for the prediction of BEN node connectivity were turned into Shk descriptors that encoded information for the BEN nodes and the entire ANN topology. Shk were calculated for


each node with the MI-NODES software44. In the case of ANN classifiers, the average of all the values of Shk for all the neurons in the ANN was used as input. For the MI-NODES descriptors,


the Markov chains theory was applied and, therefore, they were calculated for each k values ranging between 0 and 5 (k = node distance of interaction) as Shk45. These descriptors were


linearly combined to find a model (AutoML) that was able to predict how a specific ANN topology would evaluate BEN node connectivity. Thus, AutoML could be used to screen which is the best


ANN classifier topology for BEN node connectivity prediction. The AutoML methodology used for the prediction of BEN connectivity includes the following steps with their respective


results.

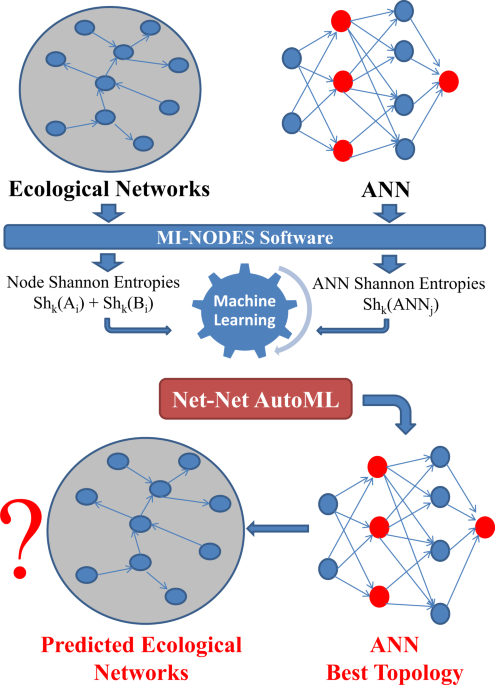

Figure 1


General workflow of the Net-Net AutoML methodology.

Full size image


First, Shk values were calculated for a large number of nodes in 69 BENs using the MI-NODES software. We created a dataset of biological systems (bsi dataset) using 33,805 pairs of nodes


selected randomly from the 69 BENs. If we consider the adjacency matrix (A) as the mathematical representation of all pairs of Ai vs. Bj nodes in the BEN, the output variable of this dataset


are the elements Aij of this matrix. These values quantify the structure (connectivity) of the BEN with values Aij = 1 for the pairs of nodes that are connected (interacting biological


species) and Aij = 0 otherwise (non-interacting biological species).


Next, the bsi dataset was expanded with node differences as input variables ∆Shkij = Shki − Shkj for each pair, where Shki is the Shk for the first node and Shkj the Shk for the second node


(k = 0–5). As a result, there are bsiNvar = 6·3 = 18 input features for the Aij output for each pair of BEN nodes. The variables Sh0 quantify information for an isolated node, Sh1 refers to


the nodes with direct link, Sh2 to nodes that have other nodes between them, and so on.


Figure 2 illustrates the distribution of three Shk parameters (k = 2, 3, 5) for both BENs and ANN classifiers to predict them. This dataset was used to train 10 different ANNs. Next, the ANN


screening model testing dataset (mt dataset) was made up. The output variable of the mt dataset represents the values of correct or incurred prediction of BEN connectivity Aij by a specific


ANN classifier topology, P(ANNAij) = 1 when the ANN topology correctly predicts the observed BEN nodes connectivity Aij (Aij = 1 or 0 in the original bsi dataset). On the contrary,


P(ANNAij) = 0 when a specific ANN topology fails to correctly classify the observed Aij of 1 or 0 from the original bsi dataset. The mt dataset contains the predictions of 338,050 node pairs


from 69 BENs using 10 different trained ANN classifiers (different topologies). The input variables of the mt dataset are the original variables for each pair of nodes and the values of


information indices ANNShk (average value of Sh of all ANN neurons): mtNvar = 6*(Shki + Shkj + ∆Shkij + ANNShk) = 24. The last step consists of the dataset analysis to find the best linear


AutoML model for ANN classifier screening (see previous Fig. 1).

Figure 2


Distribution of Shk values (k = 2, 3, 5) for ANNs vs. BENs nodes.

Full size imageDiscussion


There are at least two major problems if ANNs are used to predict node connectivity in complex networks. First, the information in complex systems should be turned into numerical input


parameters to the future ANN classifiers for node connectivity. Secondly, many ANN classifiers with different topologies should be trained in order to find the best ANN topology that can


learn the complex system structure patterns. The first problem can be solved by quantifying the structural information of the complex system (Brain, Ecological, Social, etc.) with Shk


information measures46. The classical solution for the second problem is the training of different ANNs to find the best topology. This step involves the use of High Performance Computing


(HPC) services if the aim is to test a high number of ANNs for many complex systems.


The current study proposes a new methodology to evaluate how a new ANN classifier could predict the BEN node connectivity, without the need for ANN training. Thus, two types of information


descriptors were used: node descriptors for BEN complex networks and the average of ANN neuron descriptors. If ANNs are networks with nodes (neurons) and links (weights), the same


mathematical processing as in the case of the BEN complex network could be applied. Therefore, it is possible to quantify topological (connectivity) information of both the BEN complex


networks under study and a set of ANNs trained using Shk descriptors. Thus, each node of the complex networks encoded information into Shk descriptors and each ANN classifier was


characterized as an entire network by the average of Shk.


The new AutoML methodology proposed a screening of ANN classifier topologies for BEN node connectivity prediction. The current work applied the AutoML methodology to the Ecological systems.


Consequently, the AutoML output P(ANNAij) predicted the propensity of a specific ANN topology to predict the biological interaction Aij between the species Ai and Bj from the ecological web


(Aij = 1 or not Aij = 0). The best linear AutoML with maximum values of Ac, Sp, and Sn (training and external validation series) is described by Eq. 1. The best linear AutoML was made up of


only 5 features: two Shk (k = 0, 3) for each node Ai and Bj, and a Shk (k = 3) for the ANN classifier.

$$\begin{array}{rcl}{\rm{S}}({\rm{L}}={1,\mathrm{ANN}}_{{\rm{j}}})\, & = &


-{\rm{42}}\mathrm{.38}\cdot S{h}_{0}({A}_{i})+15.69\cdot S{h}_{3}({A}_{i})\\ & & -{\rm{44.95}}\cdot S{h}_{0}({B}_{j})+13.79\cdot S{h}_{3}({B}_{j})\\ & & -{\rm{0.014}}\cdot


S{h}_{3}(AN{N}_{j})-0.8263\\ & & {\rm{n}}=235\,\,540\,{\chi }^{2}\,=\mathrm{56326}{\rm{.2}}\,p < 0{\rm{.001}}\end{array}$$ (1)


In each BEN, the connections (Aij = 1) indicated the existence of a biological interaction between the organisms of i biological species with the organisms of j species. Table 1 shows the


ANN topologies trained to predict BEN connectivity. Thus, the Net-Net AutoML model was able to predict whether a new ANN topology could correctly predict the connectivity between a pair of


BEN nodes, prior to training. We introduced variability in the ANN topologies using ANNs without hidden layers (no. 8, 9, 10), with only one hidden layer (no. 1, 2, 7, 5) and with two hidden


layers (no. 3, 4, 6). Future work should include different ANN topologies such as skip layer connections, drop out neurons, deep ANNs. These will enable a wider search in the space of


possible networks.

Table 1 Information indices ANNShk of the ANNs used as inputs to train the AutoML model.Full size table


The LDA model showed significant goodness-of-fit, also illustrated by Accuracy (Ac), Sensitivity (Sn), and Specificity (Sp) classification values, both in training and external validation


series (see Table 2). The proof-of-concept AutoML model fit very well 338,050 outcomes predicted with 10 (previously trained) ANNs. These results were obtained after training the 10 ANNs to


learn to discriminate between biological interactions (predation, parasitism, mutualism, etc.) which were connected (Aij = 1) or not (Aij = 0) in BENs of many ecosystems. The mission of the


AutoML did not consist of the prediction of BEN connectivity, and, therefore, Sn referred to the number of times that the AutoML was able to evaluate whether a given ANN topology could


correctly predict BEN nodes connectivity. The same analogy applied to Sp and Ac. Using Net-Net AutoML methodology, one could decide which ANN will receive more computing resources for


training and which one can be used to predict different links (Aij = 1 or 0). The parameter Sh3i quantified the information related to the position of i organism and their neighbours (k = 3)


placing a topological distance d ≤ 3 in the BEN. ANNSh3 is also similar but quantifies information for the neurons in a specific ANN topology and not for the organisms in the biological


network. Figure 2 illustrates the distribution of the Shk values for all the BENs and ANN topologies studied herein.

Table 2 Statistics for the base line LDA Net-Net AutoML model.Full


size table


The LDA model is a base line classifier that was compared to 11 complex classifiers obtained with 9 ML methods, such as Bayesian Nets, Naïve Bayes Nets, Logistic Regression, Decision Table,


Multilayer Perceptron (MLP), Random Forest, Bagging, AdaBoost, and Deep Fully Connected (FC) Networks. All 18 descriptors were used as inputs. The test accuracy (ACC) and AUROC values are


presented in Table 3.

Table 3 Accuracies of non-linear Net-Net classifiers.Full size table


It should be observed that the Bayesian methods, Decision Table and Logistic Regression provided accuracies lower than the LDA model. With the MLP, by introducing hidden layers in Artificial


Neural Networks, the accuracies and AUROC were improved, with values over 0.8, better than the LDA classifier. More complex models such as ensemble classifiers based on MLP with only one


hidden layer (Bagging MLP and AdaBoostM1 MLP) could produce slightly better results. By introducing more hidden layers with MLP 2 H and Deep FC Nets, the test accuracy was increased up to


0.866 (test AUROC = 0.935). Random Forest was not the best model, but it was able to provide a test accuracy of 0.832 (AUROC = 0.914). The ensemble classifier based on simple REP trees, such


as Bagging REP, had a performance similar to the MLP 1 H (only one hidden layer).


Therefore, Deep Nets provided the best results, starting with MLP 2H with only 18 neurons (=number of input features) in the first hidden layer, and 9 neurons in the second hidden layer (ACC


 = 0.827, AUROC = 0.902), leading to the more complex Deep FC Nets with 200, 400 and 200 neurons in the hidden layers 1, 2 and 3 (ACC = 0.866, AUROC = 0.935). An accuracy increase of 4% was


obtained with more complex topology of the neural network from 18–9 to 200–400–200 neurons. The DL model was obtained using 10 different network topologies, from one to three hidden layers,


with different optimization algorithms, dropout rates, and other hyperparameters. The best DL model had the hidden layer topology n-n*2-n, with activation functions = tanh, n = 200, dropout


rate = 0.5, optimizer algorithm = Adam, initialization of weights = glorot_normal, batch size = 4096, epochs = 500, training AUROC = 0.963, training ACC = 0.897, test AUROC = 0.935 and test


ACC = 0.866.


The current method used different applications such as MI-NODES for descriptors, STATISTICA, Weka, and Python/Keras for ML classifiers. If the user does not test deep learning classifiers


for the final Net-Net model, there is no need for programming. In Weka it is possible to test a deeper MLP. Therefore, scientists without advanced knowledge of programming are able to


implement this methodology for specific BENs. An optimal implementation of the method should be performed using a unique python code for all the Net-Net methodology steps. This is the next


step for the future version of this method.

Conclusions


The current study confirms that Markov chains are useful to calculate Shk information indices in order to quantify the connectivity patterns of both BENs and ANNs. The new Net-Net AutoML


methodology demonstrated how to develop a linear AutoML model, able to select which ANN topology would correctly predict the connectivity of BEN nodes before training it. The best AutoML


model demonstrated an accuracy over 86% in test subsets. In conclusion, Net-Net AutoMLs with Shk information indices could be used to screen ANN topologies that can predict the links in


biological networks. This may lead to an optimization of computing resources with the prioritization of the training of the best ANN topologies.

MethodsBiological ecosystem networks


dataset


A number of 69 Ecosystems or Food Webs were used. The network files in.net format were assembled by our group in a previous work47. The datasets were downloaded from the Interaction Web


Database (IWDB): http://www.nceas.ucsb.edu/interactionweb/index.html.

Computational modelMarkov-Shannon Entropy Centralities from MI-NODES tool


In the present work, the classical Markov matrix (1Π) was constructed for each network (BEN complex networks and ANNs). In the case of BENs, the adjacency/connectivity matrix were downloaded


from public resources as A (n by n matrix, where n is the number of nodes/vertices). Next, the Markov matrix Π was calculated. It contains the vertices probability (pij) based on A. The


probability matrix was raised to the power k, resulting (1Π)k, and it was multiplied by the vector of the initial probabilities (0pj). The resulting vectors kP contained the absolute


probabilities to reach the nodes moving throughout a walk of length k from node j (kpj) for each k (Eqs 2 and 3). The entropy of graph Shk(G) could be calculated based on the entropy of each


node Shkj:

$$\,{}^{k}P=\,{}^{0}P\times {({}^{1}{\rm{\Pi }})}^{k}=[\,{}^{k}p_{1},\,{}^{k}p_{2},\,\ldots ,\,{}^{k}p_{j}]$$ (2) $$S{h}_{k}(G)=\sum _{j\in G}S{h}_{kj}=-\,\sum _{j\in


G}\,{}^{k}p_{j}\,\mathrm{log}{}^{k}p_{j}$$ (3) Net-Net AutoML models


Due to the dimension of the dataset and the complexity of the models, for the current calculations two systems were used:


BioCAI cluster of RNASA-IMEDIR group (UDC) with 200 CPU cores;


A desktop computer with processor i7 (3.60 GHz × 4 physical cores), 16 G RAM, and a GPU NVIDIA Titan Xp (Pascal architecture, dedicated memory of 12 G G5X, 3840 CUDA cores, boost clock 1,582


 MHz).


The GPU was particularly useful for the Deep Learning calculations with Keras. All the calculations could be carried out with a desktop computer over a larger period a time, especially due


to the Deep Learning calculations.


Once the Shk values of both the ANNs and BENs have been obtained, a Linear Discriminant Analysis (LDA) implemented in the STATISTICA software48 can be run. Let P(ANNAij) be the output of a


screening model used to predict the ability of a given ANN topology to correctly classify the BEN connectivity Aij between two nodes i and j (Aij = 1 or 0). Eq. 4 describes the general


formula for the LDA model using the following coefficients: aki as coefficients of the Sh for the i node (Shki), bkj as coefficients of the Sh for the j node (Shkj), ckij as coefficients of


the differences between the Sh of the nodes i and j (∆Shkij = Shki − Shkj), ANNdk as coefficient of the average Sh for a specific ANN topology, and e0 as the free term coefficient. The k


index indicates that this Shk value codifies information for all nodes placed at least at topological distance k from the reference node.


Different statistical parameters can be used to evaluate the statistical significance and validate the goodness-of-fit of LDA equation: n = number of cases, χ2 = Chi-square, p = error level,


as well as the Accuracy (Ac), Specificity (Sp), and Sensitivity (Sn) of both training and external validation series49.

$$S(L=1,ANN)=\sum _{k=0}^{5}{a}_{ki}\cdot S{h}_{ki}+\sum


_{k=0}^{5}{b}_{kj}\cdot S{h}_{kj}+\sum _{k=0}^{5}{c}_{kij}\cdot {\rm{\Delta }}S{h}_{kij}+\sum _{k=0}^{5}{}^{ANN}d_{k}\cdot {}^{ANN}S{h}_{k}+{e}_{0}$$ (4)


Several complex classifiers were tested (see Table 3):


Bayesian Nets = weka.classifiers.bayes.BayesNet -D -Q weka.classifiers.bayes.net.search.local.K2–P 1 -S BAYES -E weka.classifiers.bayes.net.estimate.SimpleEstimator –A 0.


Naive Bayes Nets = weka.classifiers.bayes.NaiveBayes


Logistic Regression = weka.classifiers.functions.Logistic -R 1.0E-8 -M -1 -num-decimal-places 4


Decision Table = weka.classifiers.rules.DecisionTable -X 1 -S “weka.attributeSelection.BestFirst -D 1 -N 5”


MLP 1H (Multilayer Perceptron 1 hidden layer) = weka.classifiers.functions.MultilayerPerceptron -L 0.3 -M 0.2 -N 1000 -V 0 -S 0 -E 20 -H a


MLP 2H (Multilayer Perceptron 2 hidden layers) = weka.classifiers.functions.MultilayerPerceptron -L 0.3 -M 0.2 -N 5000 -V 0 -S 0 -E 20 -H “18, 9” -batch-size 500


Random Forest = weka.classifiers.trees.RandomForest -P 100 -I 500 -num-slots 1 -K 0 -M 1.0 -V 0.001 -S 1


Bagging REP = weka.classifiers.meta.Bagging -P 100 -S 1 -num-slots 1 -I 10 -W weka.classifiers.trees.REPTree –M 2 -V 0.001 -N 3 -S 1 -L -1 -I 0.0


Bagging MLP = weka.classifiers.meta.Bagging -P 100 -S 1 -num-slots 1 -I 10 -W weka.classifiers.functions.MultilayerPerceptron -batch-size 4000 –L 0.3 -M 0.2 -N 500 -V 0 -S 0 -E 20 -H a


AdaBoostM1 MLP = weka.classifiers.meta.AdaBoostM1 -P 100 -S 1 -I 10 -W weka.classifiers.functions.MultilayerPerceptron -batch-size 4000 –L 0.3 -M 0.2 -N 500 -V 0 -S 0 -E 20 -H a


Deep FC Nets (Deep Learning Fully Connected Networks) = n-n*2-n′ hidden layer topology (n = 200).


Deep Learning FC Nets were programmed in Python with Keras, and the other classifiers were obtained with the Weka tool. For the DL models, different hyperparameter values were tested:


n = Number of neurons in a hidden layer: 10, 18, 50, 100, 200, 500.


Network topologies: ‘n’,‘n-n’, ‘n-n-n’, ‘n-n*2’, ‘n-n*2-n’, ‘n*2’, ‘n*2-n’, ‘n-n:2’, ‘n:2’, ‘n-n:2-n:4’ (this notation does not include the input layer with 18 neurons = no. of features and


the output layer with a neuron for the class).


Neuron dropout rate: 0.0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9.


Optimizers: ‘RMSprop’, ‘Adagrad’, ‘Adadelta’, ‘Adam’, ‘Adamax’, ‘Nadam’.


Weight initialization for hidden layer neurons: ‘uniform’, ‘lecun_uniform’, ‘normal’, ‘glorot_normal’, ‘glorot_uniform’, ‘he_normal’, ‘he_uniform’.


Batch size for training = 1024, 2048, 4096.


Training epochs = 20, 50, 100, 200, 300, 400, 500.


Training cross validation: 3-folds (default value in Keras).


The Net-Net AutoML algorithm shown in Fig. 1 could be described as follows:

(1)


For each BEN:

(1.1)


Get the connectivity matrix.

(1.2)


Add weights for the BEN connections (if present).

(1.3)


For each node A:

(1.3.1)


Calculate node Shannon Entropies with MI-NODES: Shk(Ai).

(1.3.2)


Create pairs of entropies for all the other nodes B: Shk(Ai) − Shk(Bj).

(2)


Find different ANN classifiers to predict BEN node Aj − Bj connectivity:

(2.1)


For each ANNj classifier:

(2.1.1)


Calculate network Shannon Entropy: Shk(ANNj).

(3)


Merge BEN node descriptors with ANN descriptors into Net-Net dataset: Shk(Ai), Shk(Bj), Shk(ANNj).

(4)


Split Net-Net dataset into training and test subsets.

(5)


Find the best Net-Net classifier to evaluate whether a specific ANN can predict the BEN connectivity:

(5.1)


For each ML method (Bayesian, Trees, Artificial Neural Networks, etc.)

(5.1.1)


For each set of model parameters (ex: topology, activation function, etc.)

(5.1.1.1)


Use a Net-Net subset to train the classifier

(5.1.1.2)


Evaluate the model with test subset calculating accuracy (ACC) and AUROC.

(6)


Choose the best Net-Net classifier with the best ACC and AUROC.


Steps (5) and (6) used Weka and Python/Keras scripts. In the future version of the method, different classifiers will be tested for the BEN connectivity prediction (not only ANNs). This


involves the adaptation of MI-NODES application. The main advantage of the Net-Net methodology is that it can build a Net-Net classifier able to screen ANN classifiers which predict BEN node


connectivities.

Data Availability


All data generated or analyzed during this study were included in this article (along with its Supplementary Information files) and they are publicly available at Figshare repository with


https://doi.org/10.6084/m9.figshare.6238424.


References Sandhu, K. S. et al. Large-scale functional organization of long-range chromatin interaction networks. Cell Rep 2, 1207–1219, https://doi.org/10.1016/j.celrep.2012.09.022 (2012).


Article  PubMed  PubMed Central  CAS  Google Scholar


Gaspar, M. E. & Csermely, P. Rigidity and flexibility of biological networks. Brief Funct Genomics 11, 443–456, https://doi.org/10.1093/bfgp/els023 (2012).


Article  PubMed  Google Scholar


Csermely, P., Korcsmaros, T., Kiss, H. J., London, G. & Nussinov, R. Structure and dynamics of molecular networks: A novel paradigm of drug discovery: A comprehensive review. Pharmacol.


Ther. 138, 333–408, https://doi.org/10.1016/j.pharmthera.2013.01.016 (2013).


Article  PubMed  PubMed Central  CAS  Google Scholar


Vidal, M., Cusick, M. E. & Barabasi, A. L. Interactome networks and human disease. Cell 144, 986–998, https://doi.org/10.1016/j.cell.2011.02.016 (2011).


Article  PubMed  PubMed Central  CAS  Google Scholar


Barabasi, A. L., Gulbahce, N. & Loscalzo, J. Network medicine: a network-based approach to human disease. Nat Rev Genet 12, 56–68, https://doi.org/10.1038/nrg2918 (2011).


Article  PubMed  PubMed Central  CAS  Google Scholar


Barabasi, A. L. & Oltvai, Z. N. Network biology: understanding the cell’s functional organization. Nat Rev Genet 5, 101–113, https://doi.org/10.1038/nrg1272 (2004).


Article  PubMed  CAS  Google Scholar


Strogatz, S. H. Exploring complex networks. Nature 410, 268–276, https://doi.org/10.1038/35065725 (2001).


Article  ADS  PubMed  MATH  CAS  Google Scholar


Riera-Fernandez, P. et al. From QSAR models of Drugs to Complex Networks: State-of-Art Review and Introduction of New Markov-Spectral Moments Indices. Curr Top Med Chem 12, 927–960,


https://doi.org/10.2174/156802612800166819 (2012).


Article  PubMed  CAS  Google Scholar


Gonzalez-Diaz, H. QSAR and Complex Networks in Pharmaceutical Design, Microbiology, Parasitology, Toxicology, Cancer and Neurosciences. Current Pharmaceutical Design 16, 2598–U2524,


https://doi.org/10.2174/138161210792389261 (2010).


Article  PubMed  CAS  Google Scholar


González-Díaz, H., Prado-Prado, F., Pérez-Montoto, L. G., Duardo-Sánchez, A. & López-Díaz, A. QSAR Models for Proteins of Parasitic Organisms, Plants and Human Guests: Theory, Applications,


Legal Protection, Taxes, and Regulatory Issues. Curr Proteomics 6, 214–227, https://doi.org/10.2174/157016409789973789 (2009).


Article  Google Scholar


Prado-Prado, F. J., Ubeira, F. M., Borges, F. & Gonzalez-Diaz, H. Unified QSAR & Network-Based Computational Chemistry Approach to Antimicrobials. II. Multiple Distance and Triadic Census


Analysis of Antiparasitic Drugs Complex Networks. J. Comput. Chem. 31, 164–173, https://doi.org/10.1002/jcc.21292 (2010).


Article  PubMed  CAS  Google Scholar


Shannon, C. E. A Mathematical Theory of Communication. The Bell System Technical Journal 27, 379–423, https://doi.org/10.1002/j.1538-7305.1948.tb01338.x (1948).


Article  MathSciNet  MATH  Google Scholar


Dehmer, M. & Emmert-Streib, F. Analysis of Complex Networks. From Biology to Linguistics. (WILEY-VCH Verlag GmbH & Co. KGaA, 2009).


Dehmer, M., Grabner, M. & Varmuza, K. Information indices with high discriminative power for graphs. PLoS ONE 7, e31214, https://doi.org/10.1371/journal.pone.0031214 (2012).


Article  ADS  PubMed  PubMed Central  CAS  Google Scholar


Dehmer, M., Varmuza, K., Borgert, S. & Emmert-Streib, F. On entropy-based molecular descriptors: statistical analysis of real and synthetic chemical structures. Journal of chemical


information and modeling 49, 1655–1663 (2009).


Article  PubMed  CAS  Google Scholar


Estrada, E. & Avnir, D. Continuous symmetry numbers and entropy. J Am Chem Soc 125, 4368–4375, https://doi.org/10.1021/ja020619w (2003).


Article  PubMed  CAS  Google Scholar


Graham, D. J., Grzetic, S., May, D. & Zumpf, J. Information properties of naturally-occurring proteins: Fourier analysis and complexity phase plots. The protein journal 31, 550–563,


https://doi.org/10.1007/s10930-012-9432-7 (2012).


Article  PubMed  CAS  Google Scholar


Graham, D. J. & Greminger, J. L. On the information expressed in enzyme structure: more lessons from ribonuclease A. Mol. Divers. 15, 769–779, https://doi.org/10.1007/s11030-011-9307-4


(2011).


Article  PubMed  CAS  Google Scholar


Graham, D. J. & Greminger, J. L. On the information expressed in enzyme primary structure: lessons from Ribonuclease A. Mol. Divers. 14, 673–686, https://doi.org/10.1007/s11030-009-9211-3


(2010).


Article  PubMed  CAS  Google Scholar


Graham, D. J. & Kim, M. Information and classical thermodynamic transformations. The journal of physical chemistry 112, 10585–10593, https://doi.org/10.1021/jp7119526 (2008).


Article  PubMed  CAS  Google Scholar


Graham, D. J., Malarkey, C. & Sevchuk, W. Experimental investigation of information processing under irreversible Brownian conditions: work/time analysis of paper chromatograms. The journal


of physical chemistry 112, 10594–10602, https://doi.org/10.1021/jp711953r (2008).


Article  PubMed  CAS  Google Scholar


Graham, D. J. Information Content in Organic Molecules: Brownian Processing at Low Levels. Journal of chemical information and modeling 47, 376–389 (2007).


Article  PubMed  CAS  Google Scholar


Graham, D. J. Information content in organic molecules: aggregation states and solvent effects. Journal of chemical information and modeling 45, 1223–1236, https://doi.org/10.1021/ci050101m


(2005).


Article  PubMed  CAS  Google Scholar


Graham, D. J. & Schulmerich, M. V. Information Content in Organic Molecules: Reaction Pathway Analysis via Brownian Processing. J Chem Inf Comput Sci 44 (2004).


Graham, D. J., Malarkey, C. & Schulmerich, M. V. Information Content in Organic Molecules: Quantification and Statistical Structure via Brownian Processing. J. Chem. Inf. Comput. Sci. 44


(2004).


Graham, D. J. Information and organic molecules: structure considerations via integer statistics. J. Chem. Inf. Comput. Sci. 42, 215–221 (2002).


Article  PubMed  CAS  Google Scholar


Graham, D. J. & Schacht, D. V. Base information content in organic formulas. J. Chem. Inf. Comput. Sci. 40, 942–946 (2000).


Article  PubMed  CAS  Google Scholar


Barigye, S. J. et al. Shannon’s, Mutual, Conditional and Joint Entropy Information Indices. Generalization of Global Indices Defined from Local Vertex Invariants. Curr Comput Aided Drug Des


(2013).


Aguiar-Pulido, V. et al. Naïve Bayes QSDR classification based on spiral-graph Shannon entropies for protein biomarkers in human colon cancer. Mol Biosyst, https://doi.org/10.1039/c2mb25039j


(2012).


Kotthoff, L., Thornton, C., Hoos, H. H., Hutter, F. & Leyton-Brown, K. Auto-WEKA 2.0: Automatic model selection and hyperparameter optimization in WEKA. Journal of Machine Learning Research


18, 1–5 (2017).


Feurer, M., Klein, A., Eggensperger, K., Springenberg, J. & Blum, M. Efficient and Robust Automated Machine Learning. Advances in Neural Information Processing Systems 28, 2962–2970 (2015).


Google Scholar


Borenstein, E. & Feldman, M. W. Topological signatures of species interactions in metabolic networks. J Comput Biol 16, 191–200, https://doi.org/10.1089/cmb.2008.06TT (2009).


Article  PubMed  PubMed Central  CAS  Google Scholar


Ulanowicz, R. E. Quantitative methods for ecological network analysis. Comput Biol Chem 28, 321–339, https://doi.org/10.1016/j.compbiolchem.2004.09.001 (2004).


Article  PubMed  MATH  CAS  Google Scholar


Olff, H. et al. Parallel ecological networks in ecosystems. Philos Trans R Soc Lond B Biol Sci 364, 1755–1779, https://doi.org/10.1098/rstb.2008.0222 (2009).


Article  PubMed  PubMed Central  Google Scholar


Gonzalez-Diaz, H., Riera-Fernandez, P., Pazos, A. & Munteanu, C. R. The Rucker-Markov invariants of complex Bio-Systems: applications in Parasitology and Neuroinformatics. Biosystems 111,


199–207, https://doi.org/10.1016/j.biosystems.2013.02.006 (2013).


Article  PubMed  Google Scholar


Gonzalez-Diaz, H. & Riera-Fernandez, P. New Markov-Autocorrelation Indices for Re-evaluation of Links in Chemical and Biological Complex Networks used in Metabolomics, Parasitology,


Neurosciences, and Epidemiology. J. Chem. Inf. Model. 52, 3331–3340, https://doi.org/10.1021/ci300321f (2012).


Article  PubMed  CAS  Google Scholar


Riera-Fernandez, I. et al. From QSAR models of Drugs to Complex Networks: State-of-Art Review and Introduction of New Markov-Spectral Moments Indices. Curr. Top. Med. Chem. (2012).


Riera-Fernandez, P. et al. New Markov-Shannon Entropy models to assess connectivity quality in complex networks: From molecular to cellular pathway, Parasite-Host, Neural, Industry, and


Legal-Social networks. Journal of Theoretical Biology 293, 174–188, https://doi.org/10.1016/j.jtbi.2011.10.016 (2012).


Article  PubMed  Google Scholar


Gonzalez-Diaz, H. et al. ANN-QSAR model for selection of anticancer leads from structurally heterogeneous series of compounds. European Journal of Medicinal Chemistry 42, 580–585,


https://doi.org/10.1016/j.ejmech.2006.11.016 (2007).


Article  PubMed  CAS  Google Scholar


Jalali-Heravi, M. & Fatemi, M. H. Prediction of thermal conductivity detection response factors using an artificial neural network. J. Chromatogr. A 897, 227–235 (2000).


Article  PubMed  CAS  Google Scholar


Prado-Prado, F. J., Garcia-Mera, X. & Gonzalez-Diaz, H. Multi-target spectral moment QSAR versus ANN for antiparasitic drugs against different parasite species. Bioorganic & Medicinal


Chemistry 18, 2225–2231, https://doi.org/10.1016/j.bmc.2010.01.068 (2010).


Article  CAS  Google Scholar


Tenorio-Borroto, E. et al. ANN multiplexing model of drugs effect on macrophages; theoretical and flow cytometry study on the cytotoxicity of the anti-microbial drug G1 in spleen. Bioorganic


& Medicinal Chemistry 20, 6181–6194, https://doi.org/10.1016/j.bmc.2012.07.020 (2012).


Article  CAS  Google Scholar


Gonzalez-Diaz, H. et al. MIANN models in medicinal, physical and organic chemistry. Curr Top Med Chem 13, 619–641 (2013).


Article  PubMed  CAS  Google Scholar


Duardo-Sanchez, A. et al. Modeling complex metabolic reactions, ecological systems, and financial and legal networks with MIANN models based on Markov-Wiener node descriptors. Journal of


chemical information and modeling 54, 16–29, https://doi.org/10.1021/ci400280n (2014).


Article  PubMed  CAS  Google Scholar


Duardo-Sanchez, A., Gonzalez-Diaz, H. & Pazos, A. MI-NODES Multiscale Models of Metabolic Reactions, Brain Connectome, Ecological, Epidemic, World Trade, and Legal-Social Networks. Curr.


Bioinf. 10, 692–713, https://doi.org/10.2174/1574893610666151008013413 (2015).


Article  CAS  Google Scholar


Shannon, C. E., Weaver, W., Blahut, R. E. & Hajek, B. The mathematical theory of communication. Vol. 117 (University of Illinois press Urbana, 1949).


Riera-Fernández, P. et al. Definition of Markov-Harary Invariants and Review of Classic Topological Indices and Databases in Biology, Parasitology, Technology, and Social-Legal Networks.


Current Bioinformatics 6, 94–121 (2011).


Article  Google Scholar


STATISTICA (data analysis software system), version 6. 0, www.statsoft.com.Statsoft, Inc. v. 6.0 (2002).


Hill, T. & Lewicki, P. STATISTICS Methods and Applications. A Comprehensive Reference for Science, Industry and Data Mining. Vol. 1 (StatSoft, 2006).


Download references

Acknowledgements


The authors acknowledge Basque Government (Eusko Jaurlaritza) grant (IT1045-16) - 2016–2021 for consolidated research groups. This work was supported by the “Collaborative Project in Genomic


Data Integration (CICLOGEN)” PI17/01826 funded by the Carlos III Health Institute, as part of the Spanish National plan for Scientific and Technical Research and Innovation 2013–2016 and


the European Regional Development Funds (FEDER). This project was also supported by the General Directorate of Culture, Education and University Management of Xunta de Galicia ED431D 2017/16


and “Drug Discovery Galician Network” Ref. ED431G/01 and the “Galician Network for Colorectal Cancer Research” (Ref. ED431D 2017/23), and finally by the Spanish Ministry of Economy and


Competitiveness for its support through the funding of the unique installation BIOCAI (UNLC08-1E-002, UNLC13-13-3503) and the European Regional Development Funds (FEDER) by the European


Union. CR Munteanu acknowledges the support of NVIDIA Corporation with the donation of the Titan Xp GPU used for this research.


Author informationAuthors and Affiliations Department of Computation, Computer Science Faculty, University of A Coruna (UDC), 15071, A Coruña, Spain


Enrique Barreiro & Cristian R. Munteanu


Center for Computational Science (CCS), University of Miami (UM), Miami, 33136, FL, USA


Enrique Barreiro & Maykel Cruz-Monteagudo


West Coast University, Miami Campus, 33178, FL, USA


Enrique Barreiro & Maykel Cruz-Monteagudo


Biomedical Research Institute of A Coruña (INIBIC), University Hospital Complex of A Coruña (CHUAC), A Coruña, 15006, Spain


Alejandro Pazos


Faculty of Science and Technology, University of the Basque Country (UPV/EHU), 48940, Biscay, Spain


Humbert González-Díaz


IKERBASQUE, Basque Foundation for Science, 48011, Bilbao, Biscay, Spain


Humbert González-Díaz


AuthorsEnrique BarreiroView author publications You can also search for this author inPubMed Google Scholar


Cristian R. MunteanuView author publications You can also search for this author inPubMed Google Scholar


Maykel Cruz-MonteagudoView author publications You can also search for this author inPubMed Google Scholar


Alejandro PazosView author publications You can also search for this author inPubMed Google Scholar


Humbert González-DíazView author publications You can also search for this author inPubMed Google Scholar

Contributions


E.B. performed the data analysis and participated in the writing of the paper. C.R.M. coded MI-NODES scripts for the calculation of Shk values and participated in the writing of the paper.


M.C.M. supervised the work of E.B. on his internship and participated in the writing of the paper. A.P. contributed to the discussion and participated in the writing of the paper. H.G.D.


proposed the Net-Net AutoML algorithm idea, performed the data analysis, and participated in the writing of the paper.


Corresponding author Correspondence to Humbert González-Díaz.

Ethics declarations Competing Interests


The authors declare no competing interests.

Additional information


Publisher's note: Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Electronic supplementary materialSupplementary


InformationRights and permissions


Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or


format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or


other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in


the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the


copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/.


Reprints and permissions


About this articleCite this article Barreiro, E., Munteanu, C.R., Cruz-Monteagudo, M. et al. Net-Net Auto Machine Learning (AutoML) Prediction of Complex Ecosystems. Sci Rep 8, 12340 (2018).


https://doi.org/10.1038/s41598-018-30637-w


Download citation


Received: 09 May 2018


Accepted: 24 July 2018


Published: 17 August 2018


DOI: https://doi.org/10.1038/s41598-018-30637-w


Share this article Anyone you share the following link with will be able to read this content:


Get shareable link Sorry, a shareable link is not currently available for this article.


Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
