Download PDF Article Open access Published: 09 August 2021 State dependent effects on the frequency response of prestin’s real and imaginary components of nonlinear capacitance Joseph

Santos-Sacchi1,2,4, Dhasakumar Navaratnam1,2,3 & Winston J. T. Tan1  Scientific Reports volume 11, Article number: 16149 (2021) Cite this article

1806 Accesses

1 Altmetric

Metrics details

The outer hair cell (OHC) membrane harbors a voltage-dependent protein, prestin (SLC26a5), in high density, whose charge movement is evidenced as a nonlinear capacitance (NLC). NLC is

bell-shaped, with its peak occurring at a voltage, Vh, where sensor charge is equally distributed across the plasma membrane. Thus, Vh provides information on the conformational state of

prestin. Vh is sensitive to membrane tension, shifting to positive voltage as tension increases and is the basis for considering prestin piezoelectric (PZE). NLC can be deconstructed into

real and imaginary components that report on charge movements in phase or 90 degrees out of phase with AC voltage. Here we show in membrane macro-patches of the OHC that there is a partial

trade-off in the magnitude of real and imaginary components as interrogation frequency increases, as predicted by a recent PZE model (Rabbitt in Proc Natl Acad Sci USA 17:21880–21888, 2020).

However, we find similar behavior in a simple 2-state voltage-dependent kinetic model of prestin that lacks piezoelectric coupling. At a particular frequency, Fis, the complex component

magnitudes intersect. Using this metric, Fis, which depends on the frequency response of each complex component, we find that initial Vh influences Fis; thus, by categorizing patches into

groups of different Vh, (above and below − 30 mV) we find that Fis is lower for the negative Vh group. We also find that the effect of membrane tension on complex NLC is dependent, but

differentially so, on initial Vh. Whereas the negative group exhibits shifts to higher frequencies for increasing tension, the opposite occurs for the positive group. Despite complex

component trade-offs, the low-pass roll-off in absolute magnitude of NLC, which varies little with our perturbations and is indicative of diminishing total charge movement, poses a challenge

for a role of voltage-driven prestin in cochlear amplification at very high frequencies.

membranes and its implications in sound amplification Article Open access 12 November 2022 Elevator-like movements of prestin mediate outer hair cell electromotility Article Open access 06

November 2023 Gating-spring stiffness increases outer-hair-cell bundle stiffness, damping, and receptor current Article Open access 02 December 2024 Introduction

Prestin (SLC26a5) is a membrane-bound voltage-dependent protein1,2, whose activity drives outer hair cell (OHC) electromotility (eM)3, the latter yet considered to provide for cochlear

amplification at very high acoustic frequencies (50–100 kHz). Evidence supporting high frequency electromotility stems from whole-cell microchamber experiments and mechanical measures in

vivo during electrical stimulation within the organ of Corti4,5,6. Nevertheless, recent observations against this concept have been made, indicating lower pass behavior7,8,9,10,11.

Regardless, the voltage dependent activity of prestin itself has been well characterized over the years12,13, typically analyzed by evaluating membrane capacitance (δQ/δV) (i.e.,

NonLinearCapacitance, NLC). The proteins’ aggregate sensor charge displays a sigmoidal Boltzmann (Q/V) relationship, being quantitatively characterized by Vh, the voltage at half maximal

charge redistribution across the membrane (near − 40 mV); z, the apparent unitary charge (near 0.75); and Qmax the maximum charge of a given protein population within the membrane. The

parameter z is alternatively viewed as a voltage sensitivity, providing a slope factor of the Q/V function (near 35 mV), which indicates a very shallow voltage dependence. Thus, the full

range of prestin’s voltage responsiveness spans over 300 mV. Of course, prestin is not unique in generating NLC, as channels whose voltage sensors produce displacement currents show similar

behavior14.

Prestin has been deemed a piezoelectric (PZE) protein since Iwasa discovered tension sensitivity of NLC under whole cell (WC) voltage clamp15. Indeed, prestin’s piezoelectric coefficient is

extraordinary, estimated to be four orders of magnitude greater than man made elements16. Under WC voltage clamp, Vh shifts rightward and peak NLC decreases as membrane tension

increases15,17,18. In membrane patches, however, peak NLC (or Qmax) does not alter despite substantial shifts in Vh7,19. The likely reason why apparent Qmax is decreased in WC mode is

because tension delivery is inhomogeneous19, and differentially impinges on multiple independent micro domains of prestin20. The disparate summation in WC measures of NLC therefore shows

changes in apparent z resulting in a reduced peak NLC. Again, the reduction in total charge with tension is not a characteristic of prestin itself, as membrane patch studies clearly show.

Recently, Rabbitt21 suggested that the PZE nature of prestin provides power to the cochlear amplifier that correlates with the imaginary component of NLC, that component of charge movement

that alters phase in response to viscous load. Such modelled behavior of prestin sensor charge movement, which for a piezo component is coupled to imposed stress, was predicted to account

for the apparent incongruity of prestin’s low-pass roll-off in the absolute magnitude of complex NLC7 and the expected high frequency behavior of prestin required by cochlear modelers to

account for high frequency cochlear amplification. Here we thoroughly evaluate the real and imaginary components of NLC in OHC macro-patches and find partially reciprocal (not of equal

magnitude) trade-offs in those components across frequency that coincide with Rabbitt’s model results. We do not use the word reciprocal to intimate any reciprocity between electrical and

mechanical interactions, since we made no simultaneous mechanical measures during our patch recordings, notwithstanding the general consensus that displacement currents, hence NLC, signify

movements of charged residues in voltage dependent proteins22. However, we did previously explore interactions between electrical and mechanical behavior in whole OHCs8. Despite the

similarity between the PZE model’s complex NLC behavior and our data, we also find that a simple 2-state kinetic model lacking piezoelectric coupling provides similar trade-offs in complex

components across frequency. In our biophysical data, we also observed significant effects of initial state, characterized by initial Vh, on the frequency response of the reciprocal

trade-offs. Furthermore, membrane tension differentially alters that frequency response depending on initial state. Whether such observations are in line with PZE theory remain to be

determined.

Rabbitt21 modeled prestin and its NLC as a piezoelectric process based on first principles. NLC can be deconstructed into real and imaginary components23, since it is defined as the

frequency-dependent membrane admittance (Y*m(ω)) divided by iω, where \(\omega =2\pi f \,\text{and}\, i=\sqrt{-1}\),

\right)}{i\omega }= \frac{{B}_{m}^{*}\left(\omega \right)}{\omega }-i \frac{{G}_{m}^{*}\left(\omega \right)}{\omega },$$

providing a real capacitive component and an imaginary conductive component. On removing stray capacitance (by subtraction, see “Methods” section) and linear capacitance (by Boltzmann

fitting, see “Methods” section) from \({C}_{m}^{*}\left(\omega \right),\) prestin-associated complex NLC(ω) is obtained.

With his PZE model, Rabbitt predicted that the imaginary component of complex NLC should increase over frequency, as the real component decreases. We previously reported on the real and

imaginary components of complex NLC7 and concluded that the imaginary component was small and essentially frequency independent. However, we did not fit both complex components to Boltzmann

functions to unambiguously extract details of those components. In that paper, we focused our attention on the absolute magnitude of complex NLC, i.e.,

\(\sqrt{Re{\left(NLC\right)}^{2}+Im{\left(NLC\right)}^{2}}\), which is comparable to all previous measures of OHC/prestin NLC.

Here we explore in detail both components in 25 macro-patches of the OHC lateral membrane, first under zero pipette pressure, namely in the absence of externally applied membrane tension.

For the 3D plots, black dots depict average data, and magenta dots depict standard error (+ SE). The multicolored shading is provided by the interp surface plot function in Matlab, and the

red and blue solid lines depict Boltzmann fits (see “Methods” section) at selected frequencies.

Figure 1 shows that indeed, Rabbitt’s modelling prediction concerning our data that he references is borne out. There appears to be a trade-off between real (Fig. 1A) and imaginary (Fig. 1B)

component peak magnitude across frequency, especially revealed in the extracted 2-state fits of NLC (Fig. 1C). Superimposed lines in green and magenta are the PZE model responses at Vh from

Rabbitt21, which shows general agreement within this bandwidth. Figure 1D shows the absolute magnitude of NLC that continuously decreases across frequency. Thus, while there are reciprocal

trade-offs between the real and imaginary NLC components, the trade-off is not fully reciprocal; that is, the overall kinetics of prestin (governed by a host of molecular loads)

slows.

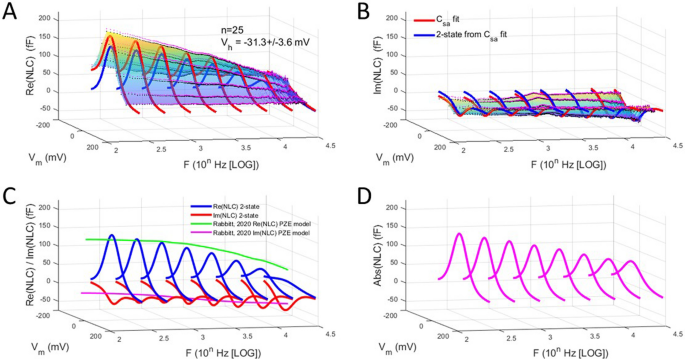

Real and imaginary components of patch NLC. (A) Real component of complex NLC across interrogating frequency. Note continuous decrease as frequency increases. Fits are made to Eq. (1) to

extract the 2-state (blue line) response at selected frequencies. Vh is average between 0.244 and 2.44 kHz. (B) Imaginary component of complex NLC. In this case, magnitude increases with

frequency, but there is not a full reciprocal trade-off with the real component. (C) Plot of the 2-state fits across frequency. Superimposed is the PZE model response at Vh of Rabbitt

(2020), which shows general agreement within this bandwidth. (D) Plot of the absolute magnitude of NLC, namely, \(\sqrt{Re{\left(NLC\right)}^{2}+Im{\left(NLC\right)}^{2}}\), indicating a

continuous reduction of prestin activity across frequency.

Figure 2 (top panel) highlights the relationship between real and imaginary components of NLC. Here we plot extracted Qmax from fitted NLC components across frequency. The trade-off in

component magnitude shows that at a particular frequency (Fis), the two intersect, and above that frequency the imaginary component will dominate. Rabbit21 modeled that the imaginary

component will eventually reduce to zero after peaking, but here (because of our limited frequency interrogation range) we use Fis to explore influences on NLC frequency response (see

below). Figure 2 (middle panel) also shows that the voltage sensitivity (z) of the two components decreases in parallel across frequency, possibly indicating an increasingly impeded sensor

charge movement within the membrane plane. In other words, voltage-induced conformational switching of prestin is depressed as frequency increases.

Frequency dependence of complex NLC components. Top panel Plot of fitted Qmax of 2-state components of complex NLC. The real and imaginary component magnitudes intersect at a particular

frequency, Fis. Here the imaginary component absolute magnitude is plotted. Fits (solid lines) are with Eq. (2). Red is real component; blue is imaginary component. Fis is 18.5 kHz. Middle

panel Plot of the Boltzmann parameter, z. Both decrease in parallel with frequency, with the imaginary component being smaller, indicating a shallower voltage sensitivity. Bottom panel Plot

of difference between real and imaginary ΔCsa, showing some low frequency dependence. Figure 1A,B indicate that ΔCsa is largely absent in the imaginary component.

Another interesting observation that this fitting exercise exposes relates to the offset (ΔCsa) in capacitance at negative voltages, which is uniformly observed in all previous studies

reporting on OHC NLC. Indeed, when we first observed this offset and developed the method used to fit the response24, we thought it was solely due to surface area alterations as prestin

changed states from expanded to contracted. Surface area change in prestin embedded membrane was first reported by Kalinec et al.25. However, the magnitude of ΔCsa is greater than that

expected for surface area changes alone in prestin. Thus, it likely includes changes to overall dielectric properties of the membrane, as well. Figure 2 (bottom panel) compares the offsets

in real and imaginary component fits by plotting the difference between the two. The magnitude of ΔCsa is little affected across frequency, and, in fact, it can be seen in Fig. 1A,B that the

offset is virtually absent in the imaginary component of NLC. Thus, the charge movement associated with the offset is solely capacitive in nature.

Do these real and imaginary component trade-off observations necessarily indicate that prestin is piezoelectric? Figure 3 shows that the same basic behavior observed in our data is

recapitulated by a simple 2-state kinetic model with voltage-dependence only, i.e., both real and imaginary NLC components are observed, with trade-offs in magnitude across

frequency.

Real and imaginary components of NLC generated by a solely voltage-dependent 2-state kinetic model (see “Results” section for details), with characteristic cut-offs at Vh dependent on

transition rates, α and β. (A) simulations with both rate constants (α0 = β0) equal to 45,000/s, and (B) with both rate constants equal to 90,000/s. In addition to the complex component

plots, the absolute magnitude of NLC at Vh is shown with red lines. The rates provide characteristic time constants (tau = 1/(α0 + β0); 11.1 μs and 5.6 μs, respectively) for charge movement

in the time domain at the potential Vh. In the frequency domain, the cut-off frequency at Vh is defined as Fc = 1/(tau × 2π), 14.3 and 28.6 kHz, respectively. The filled red circles mark the

cut-off frequencies. (C) Same model as in (A), but with an additional nonlinear DC conductance (designed to be like that in our patch data) which distorts the low frequency response of the

imaginary component. (D) After removing the DC conductance with the approach detailed in the “Methods” section, the response is essentially the same as in (A), where no DC conductance is

included, confirming the validity of our approach to remove any residual DC conductance in our patch data.

This simple 2-state model for charged prestin particles possesses an expanded (X) and compact (C) state, with the population of prestin molecules redistributing during changes in membrane

voltage.

The forward and backward rates (α, β, respectively) are governed solely by changes in membrane voltage (Vm) about a characteristic potential, Vh, where particles (charges) are distributed

equally on either side of the membrane field. z denotes the voltage sensitivity or unitary particle charge (e- X distance travelled perpendicular to the membrane field). F, R and T have

their usual meanings.

}_{0}\text{exp}\left(\frac{zF\left({V}_{m}-{V}_{h}\right)}{2RT}\right).$$

In Fig. 3A we show results from simulations with both rate constants (α0 = β0) equal to 45,000/s, and in Fig. 3B equal to 90,000/s. Vh was set to − 40 mV. These rate constants provide

characteristic time constants (tau = 1/(α0 + β0)) for charge movement in the time domain at the potential Vh. In the frequency domain, the magnitude response is a single Lorentzian

(equivalent to a first-order RC response, whose transfer function displays the same complex behavior); the cut-off frequency at Vh is defined as Fc = 1/(tau × 2π), where the response falls

to 0.707 of the initial low frequency magnitude (or correspondingly where a phase lag of 45 degrees develops). In Fig. 3A,B, in addition to the complex component plots, the absolute

magnitude of NLC at Vh is shown with red lines, and the red circles mark the measured cut-off frequency, which agrees with that calculated from the utilized rate constants. The real

component of complex NLC is lower pass than the absolute value. Thus, it is the absolute value of NLC that appropriately characterizes the model’s frequency response, and also that of the

biophysical data. We have previously used the absolute magnitude of complex NLC to characterize prestin frequency response in macro-patches7.

Additionally, in Fig. 3 we illustrate the validity of our method of subtraction of a nonlinear DC conductance from our patch admittance data prior to subsequent analysis. With a nonlinear DC

conductance included in the model (Fig. 3C), like that we find in membrane patches, the imaginary component at low frequencies is distorted. Following removal (Fig. 3D), complex NLC is

equivalent to the model without such conductance (Fig. 3A). In the 2-state model, overall NLC behavior arises due to the exponential voltage-dependent transition rates between prestin’s

expanded and contracted states. Altering the rate constants will shift the cut-off and the component magnitudes (compare Fig. 3A,B), like alterations of the time constant for an RC response.

There is no intrinsic piezoelectric coupling between voltage and tension embodied in this simplest 2-state model, nor in a first order RC circuit. But, without the delays introduced in

those conformational transitions (i.e., in a simple ultra-fast 2-state model), no imaginary component exists within our interrogation bandwidth. Thus, the requirement of piezoelectricity in

prestin is not firmly established by the trade-off in real and imaginary components of NLC that we find across stimulus frequency.

The data we have presented thus far are from averaged NLC, but we know that NLC Vh can vary among cells (and patches) due to a variety of reasons, e.g., membrane tension15,17,18,

anions26,27,28, temperature29,30,31, initial voltage conditions32,33, and membrane cholesterol content34,35. Indeed, prestin likely presents characteristics that vary along the length of the

cell20, where functional expression (e.g., Vh) can be non-homogenous36,37. Consequently, we sought to characterize the dependence of NLC real and imaginary component behavior on prestin’s

initial state; namely, as typified by initial Vh, which reports on the distribution of proteins in either the expanded or contracted states. First, we categorized NLC data into groups

possessing Vh values above and below − 30 mV.

Figures 4 and 5 show these categorized averaged responses. Means of Vh for the two groups are − 48.8 ± 3.4 mV (n = 11) for the negative range group, and − 17.5 ± 2 mV (n = 14) for the

positive range group. Differences between the frequency response of the two groups are apparent, especially in imaginary components (Figs. 4A–C, 5A–C). These differences are highlighted by

plotting the intersection of the fitted Qmax magnitudes of each NLC component (Figs. 4C, 5C), where the intersection frequency (Fis) is at a lower frequency for the negative range group (16

kHz) than the positive range group (19.4 kHz). Figure 6 recategorizes Vh into 3 groups, and clearly shows a nonlinear increase of the intersection frequency with more depolarized initial Vh

conditions.

Complex NLC patch data for patches categorized with Vh more negative than − 30 mV. (A–C) Legends to Fig. 1A–C analogously apply here. (D) Plot of fitted Qmax of 2-state components of complex

NLC. The real and imaginary component magnitudes intersect at a particular frequency, Fis. Here the imaginary component absolute magnitude is plotted. Fits (solid lines) are with Eq. (2).

Red is real component; blue is imaginary component. Fis is 16 kHz.

Complex NLC patch data for patches categorized with Vh more positive than − 30 mV. (A–C) Again, legends to Fig. 1A–C analogously apply here. (D) Plot of fitted Qmax of 2-state components of

complex NLC. The real and imaginary component magnitudes intersect at a particular frequency, Fis. Here the imaginary component absolute magnitude is plotted. Fits (solid lines) are with Eq.

 (2). Red is real component; blue is imaginary component. Fis is 19.4 kHz.

Fis for complex NLC patch data for patches recategorized into 3 Vh groups. Error bars are SE. Note that as Vh is more negative, Fis increases nonlinearly. This shows that Vh influences the

frequency responses of real and imaginary components of complex NLC.

Membrane tension is well known to shift Vh of OHC NLC. To investigate the influence of tension-induced Vh shift on real and imaginary components of NLC, we altered the tension delivered to

the macro-patch membrane (Fig. 7). In 7 patches we were able to incrementally alter pipette pressure (thus, membrane tension) from 0 to − 2, − 4, − 6, − 8, and − 10 mm Hg (0 to − 1.22 kPa).

Though substantial shifts in average Vh occur (from − 42.8 ± 8 to − 9.1 ± 11.8 mV), only slight changes in the real or imaginary components of complex NLC are readily visible. However, upon

plotting intersecting frequencies (lower panels), clear changes in Fis are obvious. Increasing tension causes a shift in Fis to higher frequencies. For 0 mmHg, Fis is 12.9 kHz, whereas − 10

mmHg pressure shifts Fis to 28.3 kHz. Does initial Vh factor into these responses?

Effects of membrane tension on complex NLC. Pipette pressure was set to (A) 0 mmHg, (B) − 4 mmHg, (C) − 8 mmHg, and (D) − 10 mmHg. Responses are characterized as in Fig. 1 legend. The bottom

panels show that Fis increases as tension increases.

As with our Vh categorization observations made above, we sought to determine the influence of initial Vh on tension effects. To this end, we categorized the patches into groups with initial

Vh above and below − 30 mV. First, Fig. 8 illustrates that tension susceptibility depends on initial Vh, with the positive group (red symbols; 4.28 mV/mmHg) showing Vh shift sensitivity

nearly twice that of the negative group (blue symbols; 2.54 mV/mmHg). For all averaged patch responses (magenta symbols), the response was intermediate with standard errors the largest, as

predicted from the categorization results.

Shift in Vh due to tension versus initial Vh. This plot shows that sensitivity to tension differs depending on initial Vh. Upon categorization of initial Vh with values greater than and less

than − 30 mV, differences in sensitivity to tension are exposed. In those patches with initial Vh greater than − 30 mV (red symbols; − 23.0 ± 2.6 mV; 4.28 mV/mmHg; n = 3), sensitivity is

nearly double that of the group with initial Vh less than − 30 (blue symbols; − 57.6 ± 5.4 mV; 2.536 mV/mmHg; n = 4). For comparison, the relationship for all average patches is shown

(magenta symbols), where a sensitivity to tensions is 3.3 mV/mmHg. This latter relationship is derived from data in Fig. 7. Linear fits provide the slope sensitivity.

In Fig. 9, we plot average NLC for the negative initial Vh group. Figure 9A shows results at 0 mmHg and Fig. 9B shows results at − 10 mmHg. Differences are apparent in the frequency

responses, with Fig. 9C highlighting the influence of increasing membrane tension on the intersection frequency, Fis. Increasing tension induces a shift in Fis to higher frequencies. For 0

mmHg, Fis is 11 kHz, whereas − 10 mmHg pressure shifts Fis to 16.2 kHz.

Membrane tension effects on the frequency response of complex capacitance for negative initial Vh. (A) 0 mmHg, (B) − 10 mmHg. Clear changes, especially in the imaginary component, are noted

between the two tensions. These changes are highlighted in (C) where the intersection frequency, Fis, is found to increase with increases in tension. A shift from 11 to 16.2 kHz occurs

between the two extremes.

A similar analysis is shown in Fig. 10 for the positive initial Vh group. Surprisingly, in this case, increasing tension induces a shift in Fis to lower frequencies. The results for both

groups are summarized in Fig. 11A. This plot shows that the two initial Vh group responses converge towards a common Fis at − 10 mmHg, namely about 16 kHz. It may not be a coincidence that

this pressure value is close to the turgor pressure (~ 1 kPa) of the native OHC38. Finally, in Fig. 11B we plot the absolute magnitude of NLC for the two initial Vh groups. The negative

group shows a very similar frequency response regardless of tension, and is in line with our previous observation on the immutable frequency response of the absolute magnitude of complex NLC

during tension changes7. However, the positive group shows altered frequency responses, with increases in tension slowing the frequency response. Our data thus indicate an interaction

between initial prestin state and tension sensitivity.

Membrane tension effects on the frequency response of complex capacitance for positive initial Vh. (A) 0 mmHg, (B) − 10 mmHg. Clear changes, especially in the imaginary component, are noted

between the two tensions. These changes are highlighted in (C) where the intersection frequency, Fis, is found to decrease with increases in tension. A shift from 22.1 to 16.8 kHz occurs

between the two extremes.

Summary of initial Vh influence on tension effects. (A) The direction of change in Fis is dependent on initial Vh. Analyses were made with stray capacitance removal using either the + 160 mV

(circles) or − 160 mV (asterisks) holding admittance. Results are identical, as expected. The two initial Vh group responses converge until a common Fis vs. tension is reached at − 10 mmHg,

namely about 16 kHz. (B) Plot of the absolute magnitude of NLC for the two initial Vh groups. The negative group shows a very similar frequency response regardless of tension, but the

positive group shows altered frequency responses, with increases in tension slowing the frequency response.

OHC NLC is frequency dependent and low pass. We first demonstrated this in guinea pig OHCs using AC voltage chirp stimuli to assess the real component of complex NLC nearly 30 years ago13.

Over the years this has been confirmed across species9,39,40,41,42. Indeed, combining measures across a number of studies, we arrived at a collective estimate of NLC (absolute magnitude)

frequency response that led us to suggest that prestin activity could not drive eM to sufficiently influence cochlear mechanics at very high acoustic frequencies (> 50 kHz), where cochlear

amplification is expected to work best7. Recently, Rabbitt21, expanding on earlier modelling investigations16,43,44,45, has modelled OHC NLC as a piezoelectric process whose imaginary

complex component takes on special significance, namely, signifying power output associated with prestin charge displacement. He modelled that as the real component of NLC decreases across

frequency, the imaginary component increases—a frequency-dependent, reciprocal trade-off in magnitudes. Thus, he suggested that dielectric loss in voltage-driven prestin charge movement is

indicative of considerable influence at high frequencies, thereby overriding our suggestions that prestin is limited in its high frequency effectiveness7,46.

Here we find experimentally that prestin’s complex NLC displays a partially reciprocal trade-off between real and imaginary components across interrogating frequency that follows predictions

based on the PZE model of prestin21. However, we find that similar behavior is found with a simple 2-state kinetic model that is not piezoelectric, but solely voltage-dependent. Prior to

Rabbitt’s work21, Iwasa47 developed a 2-state PZE model of prestin which explicitly incorporates tension dependence of prestin’s conformational states. Our 2-state model, which evidences

real and imaginary parts of NLC, is dependent only on voltage, not tension, and thus is not piezoelectric. Thus, this type of complex behavior that we observe in our biophysical data is not

necessarily due to piezoelectricity in prestin, and whether other predictions of the PZE model correspond to the observed prestin behavior that we find remains to be seen. To be sure, we are

not claiming that prestin is not piezoelectric-like, since we have substantially contributed to the experimental evidence that it is, but only that non PZE models can generate real and

imaginary components of NLC.

For decades, we and others9,13,39,44,48 have suggested that NLC and eM behavior are governed by the conformational kinetics of OHC motor (prestin) transitions, in line with traditional

biophysical concepts of voltage-dependent protein behavior. Indeed, when we initially realized that prestin kinetics were influenced by chloride ions49,50, we suggested that delays

introduced by stretched exponential transition rates in prestin would impact the phase of eM. Subsequently, we found that an eM phase lag (re voltage) develops across frequency and this

could be influenced by chloride anions51. It is likely that the frequency dependent imaginary component of NLC we observe here correlates with that out of phase mechanical response. Thus, we

agree with Rabbitt21 that the imaginary component of NLC may have special significance in prestin function, regardless of whether prestin works as a piezoelectric device or not.

Nevertheless, our data show that absolute magnitude of NLC (representing total charge, including in and out of phase components) decreases as a power function of frequency, being 40 dB down

at 77 kHz7. This is a minuscule fraction of voltage-driven prestin activity that exists at low frequencies. Based on PZE models16,21,47, mechanical loads can influence the frequency response

of prestin. We agree that NLC and eM are susceptible to mechanical load, but the frequency response of whole-cell eM is slower than that of NLC, and likely corresponds to both cellular

(external) and molecular (intrinsic) load components8. Thus, with minimal influence of external loads, we view our macro-patch data as providing the best estimate of prestin’s intrinsic

conformational switching limit (including all influential molecular impedances), as originally espoused by Gale and Ashmore39.

Characteristics of OHC NLC have been known for some time to depend on initial conditions; for example, Vh depends on initial holding potential and anion binding is state-dependent33,52,53.

In an effort to determine whether complex NLC shows sensitivity to initial conditions, we categorized our data into classes that had initial Vh values above and below − 30 mV. We found

effects of initial conditions on the frequency response of real and imaginary components, where a metric of this relationship, Fis, the intersection frequency of real and imaginary magnitude

components varies with initial Vh. As initial Vh shifts positively, Fis increases nonlinearly (see Fig. 6).

We also found initial Vh effects on the influence of static membrane tension on Fis. Whereas the group with initial Vh positive to − 30 mV shows a decrease in Fis with increasing membrane

tension, the opposite is found in the group with initial Vh negative to − 30 mV. At − 10 mmHg (1.22 kPa), each group’s Fis intersects near 16 kHz (see Fig. 11A). Interestingly, this pressure

value is close to the turgor pressure (about 1 kPa) of the native cylindrical OHC38.

Lastly, we found that the group with initial Vh negative to − 30 mV shows little variation in the frequency response of the absolute magnitude of NLC with membrane tension, similar to what

we observed previously7. However, the frequency response of the group with initial Vh positive to − 30 mV shows a decrease in the frequency response as membrane tension increases. From all

these observations, it appears that the frequency response/magnitude of the imaginary component of NLC is mainly sensitive to initial Vh. Though adherence to a minimum phase system response

might predict a complimentary relationship between real and imaginary components, viscoelastic non-minimum phase systems are known in biology54,55. Consequently, our data indicate that the

state of prestin, characterized by initial Vh, influences frequency relationships between components of complex NLC, and thus, according to Rabbitt21, the power output of prestin activity.

Nevertheless, changes in the frequency response are relatively small with our perturbations.

The fact that the individual components of complex NLC are differentially susceptible indicates that frequency-dependent phase differences occur between elements of sensor charge movement,

possibly indicating that widely distributed sensor charge residues56 may independently interact within local intra-protein, nano-environments. Supporting this view, recent cryo-EM determined

structural features of the mechano-sensitive channel MscS point to differential interactions of the protein with lipids surrounding and within the protein itself57. Thus, the study of

complex NLC of our sensor charge residue mutations56 in HEK cell macro-patches, may assign particular residues responsible for the complex component responses. For example, we may find that

certain mutations may remove the imaginary component without altering the real component.

As we noted above, there are several factors that influence Vh. In the case of membrane tension, what could govern Vh? There are numerous descriptions of membrane proteins/channels that are

influenced by membrane tension58, with some possessing voltage-dependence; yet, interestingly, none have been deemed piezoelectric, per se. Rather, standard biophysical influences of load on

a protein’s conformational state are espoused. For example, some Kv channels are voltage and tension sensitive, and simple models where changes in the equilibrium constant for channel

opening, or equivalently the ratio of forward to backward transition rates, can account for tension effects on channel activity59. What other influences could there be in the absence of

direct PZE effects or direct biophysical mechanical influences on prestin?

Several ideas come to mind. Perhaps the degree of cooperativity among prestin units alters with membrane tension. We recently provided evidence for negative cooperativity in prestin that was

related to the density of prestin within the membrane60. Additionally, we previously modelled initial voltage influences on NLC as resulting from OHC molecular motor-motor (prestin)

interactions33. For Kv 7.4 channels, cooperativity has been found to impart mechanical sensitivity to the channel in OHCs61. Another possibility is the presence of a conductive element

influencing the interaction between voltage sensor charge and the membrane field, where that element alters with tension. Under this circumstance, the voltage sensed by the prestin charge

may change during alterations in tension, leading to apparent Vh shifts relative to voltage clamp commands. Could this be a viscoelastic coupled conductive element, thus providing time

dependent changes in voltage sensed? We have observed multi-exponential time-dependent behavior in NLC at fixed voltages32,33. Is GmetL, the tension-dependent prestin leakage conductance we

have identified62, the conductive component? We are currently testing complex NLC in prestin mutants that have reduced GmetL conductance.

Finally, the shift in Vh could additionally result from changes in the membrane surface charge or dipole potential that may accompany changes in membrane tension. Warshaviak et al.63 have

found that physiologically relevant changes in membrane tension could shift that potential by tens of millivolts. Such effects could produce changes in the distribution of voltage-dependent

protein conformations that would be evident as altered Vh, despite effective voltage clamp. Interestingly, changes in temperature could conceivably alter the membrane dipole (in addition to

many other properties of the membrane), since electrical breakdown in membrane is temperature dependent64. Thus, our observation of shifts in Vh due to temperature29,30,31 could also be

independent of direct action on prestin. Of course, in this case of these “charge screening” effects, alterations in transition rates would not underlie Vh shifts, so this is unlikely to

fully account for prestin’s tension responsiveness since we do find changes in the frequency response of real and imaginary components of complex NLC. Hence, transition rates are indeed

altered.

To summarize our observations, we find that prestin’s complex NLC displays partial reciprocal trade-offs in real and imaginary component magnitude across frequency. The trade-off is prestin

state-dependent in that the frequency response of the components alter with initial Vh and membrane tension. However, these observations do not nullify our initial observations7,46 that

absolute complex NLC, signifying total charge moved, decreases precipitously as a power function of frequency; thus, prestin charge displacement that correlates with electromotility9 is

expected to have limited physiological influence at very high frequencies in excess of 50 kHz.

Some final comments on the OHC’s ability to drive cochlear amplification at very high frequencies in a hypothetical cycle-by-cycle manner are in order. The membrane RC filter, which limits

high frequency AC receptor potential generation, has been considered a potential problem for decades65,66, and while there are a number of publications that have suggested that the problem

could be alleviated17,67,68,69, none have been directly tested in vivo. Thus, the RC problem may remain, and indeed arguments have been made for its effect on eM measured in vivo10. Both the

potential RC problem and the low-pass nature of prestin charge movement pose serious obstacles for proposed theoretical mechanisms that offer to circumvent an OHC speed limit8.

Detailed methods, including specifics of our voltage chirp stimulus protocol and extraction of complex NLC from patch admittance, are available in Refs.7,46. Briefly, extracellular solution

was (in mM): NaCl 100, TEA-Cl 20, CsCl 20, CoCl2 2, MgCl2 1, CaCl2 1, Hepes 10, pH 7.2. Experiments were performed at room temperature. Extracellular solution was in the patch pipette.

On-cell macro-patches on the guinea pig OHC lateral membrane were made near the middle of the cylindrical cell, where prestin resides at high density70,71. Pipette inner tip size was about

3.5 μm, series resistance (Rs) estimated to be below 1 MΩ, and seals at 0 mV near 5 GΩ (see Ref.7). Under these conditions, Rs effects are minimal7 and were not corrected for in this report.

Furthermore, in this report we make relative assessments of NLC among groups of macro-patches. Chirp voltage stimuli (10 mV pk) were superimposed on step holding potentials from − 160 to + 

160 mV, in 40 mV increments. As detailed previously7, the FFT derived admittance at + 160 mV, where NLC is absent, is subtracted from admittance at all other step potentials, thereby

removing stray capacitance. Additionally, because we focus on effects of Vh on complex NLC behavior, we confirmed that subtractions for stray capacitance using either + 160 or − 160 mV

responses give the exact same Boltzmann fits, as expected since stray capacitance will not influence prestin charge movement/NLC. A residual DC nonlinear conductance was also removed. DC

conductance was determined from the DC component of FFT current response at each stepped voltage. Conductance, ΔI(0)/ΔVhold, was gauged by spline interpolating between each step voltage

response, and differentiating digitally. Since, such an approach can have untoward effects at the end point voltage extremes, we fit the conductance linearly between 0 and 396 Hz

(conductance at each frequency determined from the real components), and used the resultant fitted conductance at zero Hz for subtraction of the real components of admittance across

frequencies. Figure 3 illustrates, in a simple 2-state kinetic model with solely voltage-dependent transition rates, the necessity of such nonlinear DC conductance subtractions to validly

extract the imaginary component of NLC at low frequencies. The model is fully described in the “Results” Section. Patch membrane tension was imposed by changing pipette pressure. All data

collection and analyses were performed with the software programs jClamp (www.scisoftco.com) and Matlab (www.mathworks.com). All means and standard errors (SE) are from individually analyzed

patch data. Plots were made in Matlab.

In order to extract Boltzmann parameters, capacitance–voltage data were fit to the first derivative of a two-state Boltzmann function13,39, with an component of capacitance that

characterizes sigmoidal changes in specific membrane capacitance24,72. We refer to this as the “Csa fit” in text and figures.

Q}_{\text{max}}\frac{\text{ze}}{{k}_{B}T}\frac{b}{{\left(1+b\right)}^{2}}+{{C}_{sa}+C}_{\text{lin}},\end{array}$$ (1)

where \(b=exp\left(-ze\frac{{V}_{m}-{V}_{h}}{{k}_{B}T}\right)\), \({C}_{sa}= \frac{{\Delta C}_{sa}}{(1+{b}^{-1})}.\)

Qmax is the maximum nonlinear charge moved, Vh is voltage at peak capacitance or equivalently, at half-maximum charge transfer, Vm is membrane potential, z is valence, Clin is linear

membrane capacitance, e is electron charge, kB is Boltzmann’s constant, and T is absolute temperature. Csa is a component of capacitance that characterizes sigmoidal changes in specific

membrane capacitance, with ΔCsa referring to the maximal change at very negative voltages24,72.

Qmax is the maximum nonlinear charge moved, Vh is voltage at peak capacitance or equivalently, at half-maximum charge transfer, Vm is membrane potential, z is valence, Clin is linear

membrane capacitance, e is electron charge, kB is Boltzmann’s constant, and T is absolute temperature. Csa is a component of capacitance that characterizes sigmoidal changes in specific

membrane capacitance, with ΔCsa referring to the maximal change at very negative voltages24,72.

For some data, a power fit as a function of frequency (f) was performed46,73.

where C0 is the asymptotic component, and a and b control the frequency response.

References Santos-Sacchi, J. & Dilger, J. P. Whole cell currents and mechanical responses of isolated outer hair cells. Hear. Res. 35, 143–150 (1988).

Article  CAS  Google Scholar

Zheng, J. et al. Prestin is the motor protein of cochlear outer hair cells. Nature 405, 149–155 (2000).

Article  ADS  CAS  Google Scholar

Liberman, M. C. et al. Prestin is required for electromotility of the outer hair cell and for the cochlear amplifier. Nature 419, 300–304 (2002).

Article  ADS  CAS  Google Scholar

Frank, G., Hemmert, W. & Gummer, A. W. Limiting dynamics of high-frequency electromechanical transduction of outer hair cells. Proc. Natl. Acad. Sci. U.S.A. 96, 4420–4425 (1999).

Article  ADS  CAS  Google Scholar

Nuttall, A. L., Zheng, J., Ren, T. & de Boer, E. Electrically evoked otoacoustic emissions from apical and basal perilymphatic electrode positions in the guinea pig cochlea. Hear. Res. 152,

77–89. https://doi.org/10.1016/s0378-5955(00)00238-0 (2001).

Article  CAS  PubMed  Google Scholar

Drexl, M., Lagarde, M. M., Zuo, J., Lukashkin, A. N. & Russell, I. J. The role of prestin in the generation of electrically evoked otoacoustic emissions in mice. J. Neurophysiol. 99,

1607–1615 (2008).

Article  Google Scholar

Santos-Sacchi, J. & Tan, W. Complex nonlinear capacitance in outer hair cell macro-patches: Effects of membrane tension. Sci. Rep. 10, 6222. https://doi.org/10.1038/s41598-020-63201-6

(2020).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Santos-Sacchi, J., Iwasa, K. H. & Tan, W. Outer hair cell electromotility is low-pass filtered relative to the molecular conformational changes that produce nonlinear capacitance. J. Gen.

Physiol. 151, 1369–1385. https://doi.org/10.1085/jgp.201812280 (2019).

Article  CAS  PubMed  PubMed Central  Google Scholar

Santos-Sacchi, J. & Tan, W. The frequency response of outer hair cell voltage-dependent motility is limited by kinetics of prestin. J. Neurosci. 38, 5495–5506.

https://doi.org/10.1523/JNEUROSCI.0425-18.2018 (2018).

Article  CAS  PubMed  PubMed Central  Google Scholar

Vavakou, A., Cooper, N. P. & van der Heijden, M. The frequency limit of outer hair cell motility measured in vivo. Elife https://doi.org/10.7554/eLife.47667 (2019).

Article  PubMed  PubMed Central  Google Scholar

van der Heijden, M. & Versteegh, C. P. Energy flux in the cochlea: Evidence against power amplification of the traveling wave. J. Assoc. Res. Otolaryngol. 16, 581–597.

https://doi.org/10.1007/s10162-015-0529-5 (2015).

Article  PubMed  PubMed Central  Google Scholar

Ashmore, J. F. Forward and reverse transduction in the mammalian cochlea. Neurosci. Res. Suppl. 12, S39–S50 (1990).

Article  CAS  Google Scholar

Santos-Sacchi, J. Reversible inhibition of voltage-dependent outer hair cell motility and capacitance. J. Neurosci. 11, 3096–3110 (1991).

Article  CAS  Google Scholar

Kilic, G. & Lindau, M. Voltage-dependent membrane capacitance in rat pituitary nerve terminals due to gating currents. Biophys. J. 80, 1220–1229.

https://doi.org/10.1016/S0006-3495(01)76098-5 (2001).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Iwasa, K. H. Effect of stress on the membrane capacitance of the auditory outer hair cell. Biophys. J. 65, 492–498 (1993).

Article  ADS  CAS  Google Scholar

Dong, X. X., Ospeck, M. & Iwasa, K. H. Piezoelectric reciprocal relationship of the membrane motor in the cochlear outer hair cell. Biophys. J. 82, 1254–1259 (2002).

Article  CAS  Google Scholar

Kakehata, S. & Santos-Sacchi, J. Membrane tension directly shifts voltage dependence of outer hair cell motility and associated gating charge. Biophys. J. 68, 2190–2197 (1995).

Article  CAS  Google Scholar

Gale, J. E. & Ashmore, J. F. Charge displacement induced by rapid stretch in the basolateral membrane of the guinea-pig outer hair cell. Proc. R. Soc. Lond. B. Biol. Sci. 255, 243–249

(1994).

Article  ADS  CAS  Google Scholar

Gale, J. E. & Ashmore, J. F. The outer hair cell motor in membrane patches. Pflugers Arch. 434, 267–271 (1997).

Article  CAS  Google Scholar

Santos-Sacchi, J. Functional motor microdomains of the outer hair cell lateral membrane. Pflugers Arch. 445, 331 (2002).

Article  CAS  Google Scholar

Rabbitt, R. D. The cochlear outer hair cell speed paradox. Proc. Natl. Acad. Sci. U.S.A. 117, 21880–21888. https://doi.org/10.1073/pnas.2003838117 (2020).

Article  CAS  PubMed  PubMed Central  Google Scholar

Bezanilla, F. How membrane proteins sense voltage. Nat. Rev. Mol. Cell Biol. 9, 323–332 (2008).

Article  CAS  Google Scholar

Fernandez, J. M., Bezanilla, F. & Taylor, R. E. Distribution and kinetics of membrane dielectric polarization. II. Frequency domain studies of gating currents. J. Gen. Physiol 79, 41–67

(1982).

Article  CAS  Google Scholar

Santos-Sacchi, J. & Navarrete, E. Voltage-dependent changes in specific membrane capacitance caused by prestin, the outer hair cell lateral membrane motor. Pflugers Arch. 444, 99–106 (2002).

Article  CAS  Google Scholar

Kalinec, F., Holley, M. C., Iwasa, K. H., Lim, D. J. & Kachar, B. A membrane-based force generation mechanism in auditory sensory cells. Proc. Natl. Acad. Sci. U.S.A. 89, 8671–8675 (1992).

Article  ADS  CAS  Google Scholar

Rybalchenko, V. & Santos-Sacchi, J. Anion control of voltage sensing by the motor protein prestin in outer hair cells. Biophys. J. 95, 4439–4447 (2008).

Article  CAS  Google Scholar

Santos-Sacchi, J., Song, L., Zheng, J. F. & Nuttall, A. L. Control of mammalian cochlear amplification by chloride anions. J. Neurosci. 26, 3992–3998.

https://doi.org/10.1523/jneurosci.4548-05.2006 (2006).

Article  CAS  PubMed  PubMed Central  Google Scholar

Oliver, D. et al. Intracellular anions as the voltage sensor of prestin, the outer hair cell motor protein. Science 292, 2340–2343 (2001).

Article  CAS  Google Scholar

Okunade, O. & Santos-Sacchi, J. IR laser-induced perturbations of the voltage-dependent solute carrier protein SLC26a5. Biophys. J. 105, 1822–1828. https://doi.org/10.1016/j.bpj.2013.09.008

(2013).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Meltzer, J. & Santos-Sacchi, J. Temperature dependence of non-linear capacitance in human embryonic kidney cells transfected with prestin, the outer hair cell motor protein. Neurosci. Lett.

313, 141–144 (2001).

Article  CAS  Google Scholar

Santos-Sacchi, J. & Huang, G. Temperature dependence of outer hair cell nonlinear capacitance. Hear. Res. 116, 99–106 (1998).

Article  CAS  Google Scholar

Santos-Sacchi, J., Navarrete, E. & Song, L. Fast electromechanical amplification in the lateral membrane of the outer hair cell. Biophys. J. 96, 739–747.

https://doi.org/10.1016/j.bpj.2008.10.015 (2009).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Santos-Sacchi, J., Kakehata, S. & Takahashi, S. Effects of membrane potential on the voltage dependence of motility-related charge in outer hair cells of the guinea-pig. J. Physiol. 510(Pt

1), 225–235 (1998).

Article  CAS  Google Scholar

Sfondouris, J., Rajagopalan, L., Pereira, F. A. & Brownell, W. E. Membrane composition modulates prestin-associated charge movement. J. Biol. Chem. 283, 22473–22481 (2008).

Article  CAS  Google Scholar

Rajagopalan, L. et al. Tuning of the outer hair cell motor by membrane cholesterol. J. Biol. Chem. 282, 36659–36670 (2007).

Article  CAS  Google Scholar

Corbitt, C., Farinelli, F., Brownell, W. E. & Farrell, B. Tonotopic relationships reveal the charge density varies along the lateral wall of outer hair cells. Biophys. J. 102, 2715–2724.

https://doi.org/10.1016/j.bpj.2012.04.054 (2012).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Takahashi, S. & Santos-Sacchi, J. Non-uniform mapping of stress-induced, motility-related charge movement in the outer hair cell plasma membrane. Pflugers Arch. 441, 506–513 (2001).

Article  CAS  Google Scholar

Ratnanather, J., Brownell, W. & Popel, A. Mechanical properties of the outer hair cell. In Biophysics of Hair Cell Sensory Systems (eds Duifhuis, H. et al.) 199–206 (World Scientific, 1993).

Google Scholar

Gale, J. E. & Ashmore, J. F. An intrinsic frequency limit to the cochlear amplifier. Nature 389, 63–66 (1997).

Article  ADS  CAS  Google Scholar

Homma, K., Duan, C., Zheng, J., Cheatham, M. A. & Dallos, P. The V499G/Y501H mutation impairs fast motor kinetics of prestin and has significance for defining functional independence of

individual prestin subunits. J. Biol. Chem. 288, 2452–2463. https://doi.org/10.1074/jbc.M112.411579 (2013).

Article  CAS  PubMed  Google Scholar

Albert, J. T. et al. Voltage-sensitive prestin orthologue expressed in zebrafish hair cells. J. Physiol. 580, 451–461 (2007).

Article  CAS  Google Scholar

Ren, T. et al. (eds) Auditory Mechanisms, Processes and Models 231–232 (World Scientific, 2006).

Book  Google Scholar

Sun, S. X. et al. Voltage and frequency dependence of prestin-associated charge transfer. J. Theor. Biol. 260, 137–144. https://doi.org/10.1016/j.jtbi.2009.05.019 (2009).

Article  ADS  CAS  PubMed  PubMed Central  MATH  Google Scholar

Iwasa, K. H. Current noise spectrum and capacitance due to the membrane motor of the outer hair cell: Theory. Biophys. J. 73, 2965–2971 (1997).

Article  ADS  CAS  Google Scholar

Spector, A. A., Deo, N., Grosh, K., Ratnanather, J. T. & Raphael, R. M. Electromechanical models of the outer hair cell composite membrane. J. Membr. Biol. 209, 135–152 (2006).

Article  CAS  Google Scholar

Santos-Sacchi, J. & Tan, W. Voltage does not drive prestin (SLC26a5) electro-mechanical activity at high frequencies where cochlear amplification is best. iScience 22, 392–399.

https://doi.org/10.1016/j.isci.2019.11.036 (2019).

Article  ADS  PubMed  PubMed Central  Google Scholar

Iwasa, K. H. A two-state piezoelectric model for outer hair cell motility. Biophys. J. 81, 2495–2506 (2001).

Article  ADS  CAS  Google Scholar

Santos-Sacchi, J. Fast outer hair cell motility: How fast is fast? In The Mechanics and Biophysics of Hearing (eds Dallos, P. et al.) 69–75 (Springer, 1990).

Chapter  Google Scholar

Song, L. & Santos-Sacchi, J. Disparities in voltage-sensor charge and electromotility imply slow chloride-driven state transitions in the solute carrier SLC26a5. Proc. Natl. Acad. Sci.

U.S.A. https://doi.org/10.1073/pnas.1218341110 (2013).

Article  PubMed  PubMed Central  Google Scholar

Santos-Sacchi, J. & Song, L. Chloride anions regulate kinetics but not voltage-sensor Qmax of the solute carrier SLC26a5. Biophys. J. 110, 1–11 (2016).

Article  Google Scholar

Santos-Sacchi, J. & Song, L. Chloride-driven electromechanical phase lags at acoustic frequencies are generated by SLC26a5, the outer hair cell motor protein. Biophys. J. 107, 126–133.

https://doi.org/10.1016/j.bpj.2014.05.018 (2014).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Santos-Sacchi, J., Shen, W., Zheng, J. & Dallos, P. Effects of membrane potential and tension on prestin, the outer hair cell lateral membrane motor protein. J. Physiol. 531, 661–666 (2001).

Article  CAS  Google Scholar

Song, L. & Santos-Sacchi, J. Conformational state-dependent anion binding in prestin: evidence for allosteric modulation. Biophys. J. 98, 371–376. https://doi.org/10.1016/j.bpj.2009.10.027

(2010).

Article  CAS  PubMed  PubMed Central  Google Scholar

Kobayashi, Y., Okamura, N., Tsukune, M., Fujie, M. G. & Tanaka, M. Non-minimum phase viscoelastic properties of soft biological tissues. J. Mech. Behav. Biomed. Mater. 110, 103795.

https://doi.org/10.1016/j.jmbbm.2020.103795 (2020).

Article  CAS  PubMed  Google Scholar

Recio-Spinoso, A., Fan, Y. H. & Ruggero, M. A. Basilar-membrane responses to broadband noise modeled using linear filters with rational transfer functions. IEEE Trans. Biomed. Eng. 58,

1456–1465. https://doi.org/10.1109/Tbme.2010.2052254 (2011).

Article  PubMed  Google Scholar

Bai, J. P. et al. Prestin’s anion transport and voltage-sensing capabilities are independent. Biophys. J. 96, 3179–3186. https://doi.org/10.1016/j.bpj.2008.12.3948 (2009).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Zhang, Y. et al. Visualization of the mechanosensitive ion channel MscS under membrane tension. Nature 590, 509–514. https://doi.org/10.1038/s41586-021-03196-w (2021).

Article  ADS  CAS  PubMed  Google Scholar

Jin, P., Jan, L. Y. & Jan, Y. N. Mechanosensitive ion channels: Structural features relevant to mechanotransduction mechanisms. Annu. Rev. Neurosci. 43, 207–229.

https://doi.org/10.1146/annurev-neuro-070918-050509 (2020).

Article  CAS  PubMed  Google Scholar

Schmidt, D., del Marmol, J. & MacKinnon, R. Mechanistic basis for low threshold mechanosensitivity in voltage-dependent K+ channels. Proc. Natl. Acad. Sci. U.S.A. 109, 10352–10357.

https://doi.org/10.1073/pnas.1204700109 (2012).

Article  ADS  PubMed  PubMed Central  Google Scholar

Zhai, F. et al. Maturation of voltage-induced shifts in SLC26a5 (prestin) operating point during trafficking and membrane insertion. Neuroscience 431, 128–133.

https://doi.org/10.1016/j.neuroscience.2020.02.003 (2020).

Article  CAS  PubMed  Google Scholar

Perez-Flores, M. C. et al. Cooperativity of Kv7.4 channels confers ultrafast electromechanical sensitivity and emergent properties in cochlear outer hair cells. Sci. Adv. 6, 1104.

https://doi.org/10.1126/sciadv.aba1104 (2020).

Article  ADS  CAS  Google Scholar

Bai, J. P. et al. Current carried by the Slc26 family member prestin does not flow through the transporter pathway. Sci. Rep. 7, 46619. https://doi.org/10.1038/srep46619 (2017).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Warshaviak, D. T., Muellner, M. J. & Chachisvilis, M. Effect of membrane tension on the electric field and dipole potential of lipid bilayer membrane. Biochim. Biophys. Acta 2608–2617, 2011.

https://doi.org/10.1016/j.bbamem.2011.06.010 (1808).

Article  CAS  Google Scholar

Gneno, R., Azzar, G., Got, R. & Roux, B. Temperature and external electric field influence in membrane permeability of Babesia infected erythrocytes. Int. J. Biochem. 19, 1069–1073.

https://doi.org/10.1016/0020-711x(87)90308-9 (1987).

Article  CAS  PubMed  Google Scholar

Santos-Sacchi, J. Asymmetry in voltage-dependent movements of isolated outer hair cells from the organ of Corti. J. Neurosci. 9, 2954–2962 (1989).

Article  CAS  Google Scholar

Housley, G. D. & Ashmore, J. F. Ionic currents of outer hair cells isolated from the guinea-pig cochlea. J. Physiol. (Lond.) 448, 73–98 (1992).

Article  CAS  Google Scholar

Spector, A. A., Brownell, W. E. & Popel, A. S. Effect of outer hair cell piezoelectricity on high-frequency receptor potentials. J. Acoust. Soc. Am. 113, 453–461 (2003).

Article  ADS  Google Scholar

Ospeck, M., Dong, X. X., Fang, J. & Iwasa, K. H. Electromotility in outer hair cells: A supporting role for fast potassium conductance. ORL J. Otorhinolaryngol. Relat. Spec. 68, 373–377.

https://doi.org/10.1159/000095280 (2006).

Article  PubMed  Google Scholar

Johnson, S. L., Beurg, M., Marcotti, W. & Fettiplace, R. Prestin-driven cochlear amplification is not limited by the outer hair cell membrane time constant. Neuron 70, 1143–1154.

https://doi.org/10.1016/j.neuron.2011.04.024 (2011).

Article  CAS  PubMed  PubMed Central  Google Scholar

Dallos, P., Evans, B. N. & Hallworth, R. Nature of the motor element in electrokinetic shape changes of cochlear outer hair cells. Nature 350, 155–157 (1991).

Article  ADS  CAS  Google Scholar

Huang, G. & Santos-Sacchi, J. Mapping the distribution of the outer hair cell motility voltage sensor by electrical amputation. Biophys. J. 65, 2228–2236 (1993).

Article  CAS  Google Scholar

Santos-Sacchi, J. & Song, L. Chloride and salicylate influence prestin-dependent specific membrane capacitance: Support for the area motor model. J. Biol. Chem.

https://doi.org/10.1074/jbc.M114.549329 (2014).

Article  PubMed  PubMed Central  Google Scholar

Bai, J. P., Navaratnam, D. & Santos-Sacchi, J. Prestin kinetics and corresponding frequency dependence augment during early development of the outer hair cell within the mouse organ of

Corti. Sci. Rep. 9, 16460. https://doi.org/10.1038/s41598-019-52965-1 (2019).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Download references

This research was supported by NIH-NIDCD R01 DC016318 (JSS) and R01 DC008130 (JSS, DN). Thanks to Kuni Iwasa and Rick Rabbitt for discussions.

Author informationAuthors and Affiliations Surgery (Otolaryngology), Yale University School of Medicine, BML 224, 333 Cedar Street, New Haven, CT, 06510, USA

Joseph Santos-Sacchi, Dhasakumar Navaratnam & Winston J. T. Tan

Neuroscience, Yale University School of Medicine, 333 Cedar Street, New Haven, CT, 06510, USA

Joseph Santos-Sacchi & Dhasakumar Navaratnam

Neurology, Yale University School of Medicine, 333 Cedar Street, New Haven, CT, 06510, USA

Dhasakumar Navaratnam

Cellular and Molecular Physiology, Yale University School of Medicine, 333 Cedar Street, New Haven, CT, 06510, USA

Joseph Santos-Sacchi

AuthorsJoseph Santos-SacchiView author publications You can also search for this author inPubMed Google Scholar

Dhasakumar NavaratnamView author publications You can also search for this author inPubMed Google Scholar

Winston J. T. TanView author publications You can also search for this author inPubMed Google Scholar

J.S.S. designed and performed experiments, analyzed data and wrote paper. D.N. edited paper. W.T. performed experiments, analyzed data and edited paper.

Corresponding author Correspondence to Joseph Santos-Sacchi.

The authors declare no competing interests.

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or

format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or

other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in

the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the

copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this articleCite this article Santos-Sacchi, J., Navaratnam, D. & Tan, W.J.T. State dependent effects on the frequency response of prestin’s real and imaginary components of nonlinear

capacitance. Sci Rep 11, 16149 (2021). https://doi.org/10.1038/s41598-021-95121-4

Download citation

Received: 24 March 2021

Accepted: 21 July 2021

Published: 09 August 2021

DOI: https://doi.org/10.1038/s41598-021-95121-4

Share this article Anyone you share the following link with will be able to read this content:

Get shareable link Sorry, a shareable link is not currently available for this article.

Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
