ABSTRACT The detection of Activities of Daily Living (ADL) holds significant importance in a range of applications, including elderly care and health monitoring. Our research focuses on the

relevance of ADL detection in elderly care, highlighting the importance of accurate and unobtrusive monitoring. In this paper, we present a novel approach that that leverages smartphone data

as the primary source for detecting ADLs. Additionally, we investigate the possibilities offered by ambient sensors installed in smart home environments to complement the smartphone data

and optimize the ADL detection. Our approach uses a Long Short-Term Memory (LSTM) model. One of the key contributions of our work is defining ADL detection as a multilabeling problem,

allowing us to detect different activities that occur simultaneously. This is particularly valuable since in real-world scenarios, individuals can perform multiple activities concurrently,

such as cooking while watching TV. We also made use of unlabeled data to further enhance the accuracy of our model. Performance is evaluated on a real-world collected dataset, strengthening

reliability of our findings. We also made the dataset openly available for further research and analysis. Results show that utilizing smartphone data alone already yields satisfactory

results, above 50% true positive rate and balanced accuracy for all activities, providing a convenient and non-intrusive method for ADL detection. However, by incorporating ambient sensors,

as an additional data source, one can improve the balanced accuracy of the ADL detection by 7% and 8% of balanced accuracy and true positive rate respectively, on average. SIMILAR CONTENT

BEING VIEWED BY OTHERS A MULTI-SENSOR DATASET WITH ANNOTATED ACTIVITIES OF DAILY LIVING RECORDED IN A RESIDENTIAL SETTING Article Open access 23 March 2023 TIHM: AN OPEN DATASET FOR REMOTE

HEALTHCARE MONITORING IN DEMENTIA Article Open access 09 September 2023 SELF-SUPERVISED LEARNING FOR HUMAN ACTIVITY RECOGNITION USING 700,000 PERSON-DAYS OF WEARABLE DATA Article Open access

12 April 2024 INTRODUCTION The population is ageing, resulting in a shift from acute to chronic care where people are living longer with one or more chronic diseases, requiring more complex

care. Keeping our elderly physically, mentally, and socially active and independent in their own homes, while also timely being able to respond to care needs, poses a challenge to the

healthcare system, which is already dealing with increased financial pressure and staff shortages, which need to be carefully addressed. As a result, in recent years, we have seen a trend of

prioritising homecare (or ‘aging in place’) over residential care1. The concept of ‘Aging in place’ aims to facilitate elderly people to remain in their homes for as long as possible. Many

studies have shown that seniors not only prefer to age in place, but that it also benefits their quality of life (QoL)2,3,4. Ambient assisted living (AAL) is a concept that is often used to

address this healthcare challenge2. A typical AAL system implements user behavior monitoring and provides a mechanism for alerting family or caregivers in a situation of emergency or an

alarming deviation in behavior2,5. User behavior monitoring typically involves observing an individual’s activities and identifying any deviations or restrictions in their behavior. To be

able to implement a reliable behavior monitoring system, there is a need for data acquisition and accurate algorithms for detecting activities, based on this data. AAL systems make data

acquisition possible by integrating a wide variety of sensors: ambient (e.g., temperature, humidity, light, and motion), object (e.g., magnetic switch for detecting opening of doors or

cabinets, and power consumption of electric appliances), video cameras, body-worn motion sensors (e.g., accelerometer integrated in a wrist band) and biosensors (e.g., heart rate and blood

pressure sensors)2. As for the detection of activities, in recent years there has been a lot of research6 conducted on human activity recognition (HAR), activities of daily living (ADLs)

detection, and behaviour modelling. A significant portion of the research today heavily relies on the utilization of multiple sensors placed throughout various rooms and objects. These

sensors may include Radio Frequency Identification (RFID) tags on objects, power consumption meters, monitoring systems for ventilation and lighting, as well as cameras strategically

installed within the household7,8,9. However, it is important to note that not all sensors are suitable for real-world scenario applications as some sensors may generate low-quality signals

or suffer from excessive noise, while others may not be well-received by the elderly due to concerns related to privacy and intrusiveness. Therefore, when installing an AAL platform, several

requirements and limitations on the sensors have to be kept in mind, which is often neglected in existing research2. A first requirement is that wearable sensors should be small in size and

have low power consumption2,10, which is necessary to ensure their practicality and user acceptance. Second, technologies should be cheap and easy to use, otherwise the acceptance rate

might drop11. Third, the data that these sensors produce should not raise privacy concerns12. Lastly, it is crucial that these sensors generate high-quality data with minimal noise, ensuring

that the algorithms utilizing this data can reliably process and interpret it. Therefore, there is a pressing need for research on HAR and ADL detection based on sensors that fulfill the

above requirements and can cope with the following limitations: they should be lightweight, easy to use, and unobtrusive to get a high user acceptance. At the same time, smartphones are

equipped with multiple sensors and fulfill these requirements, which makes them adequate devices for real-world and long-term behavior monitoring. A smartphone includes motion sensors, such

as accelerometer and gyroscope, a light sensor, and a proximity sensor, among potential others. Smartphone sensor data is nowadays widely used, even among the elderly, and their usage is

still growing13. For example, with the goal of measuring your vital signs, FibriCheck uses phones for heart rhythm monitoring, or Google Fit monitors your respiratory rate. Phone usage

monitoring can also give an indication of the elderly peoples’ cognitive well-being, social inclusion and communication14. Smartphones’ sensors are however not the only sensors that fulfill

the discussed requirements. Ambient sensors, such as motion sensors, and magnetic switches, are also appropriate for real-world scenario applications2, and have great potential in the area

of ADL detection. Therefore, in this paper, we research the potential of both smartphones and ambient sensors for detecting ADL in real-world scenarios. We take the smartphone as a base

device and its sensors’ signals as main source of data and propose a Machine Learning (ML) methodology for ADL detection. We then incorporate other ambient sensors’ data and compare their

impact on the accuracy of the obtained models. Through our paper, we tackle the research challenge of developing reliable and accurate ML models for ADL detection. Specifically, our focus is

on utilising data from sensors that meet the necessary requirements for real-world scenario applications. The remainder of this paper is organized as follows: In section “Datasets”, we

describe the datasets that are often used in existing research and we discuss their strengths and drawbacks. We then describe the dataset we collected and used in our research, and which we

made openly available for future research and analysis. In section “Related work”, we summarize the related work and we discuss the state-of-the-art ML approaches for ADL detection based on

smartphone and ambient sensors. In section “Methodology” we describe our proposed research approach, the sensors used and the features explored on this sensor data, as well as the designed

ML architecture. In section “Results”, we describe the different experiments performed and according results. In section “Discussion”, we discuss the findings we made with our approach.

Finally, in section “Conclusion and future work”, we draw conclusions and discuss future work. DATASETS To facilitate the design and evaluation of smartphone-based HAR (SB-HAR)

methodologies, many researchers have made an effort to collect and publish datasets. In this section we describe the most relevant datasets, and discuss their strengths and weaknesses. We

refer to Table 1, for a summary of the different datasets. The UCI-HAR15 dataset consists of data collected from 30 volunteers. Each of them performed six activities: walking, walking

upstairs, walking downstairs, sitting, standing, and lying down. They wore the smartphone on the waist from which accelerometer and gyroscope signals were sampled at 50 Hz. The subjects

followed a predefined protocol during data collection. The WISDM16 dataset includes data from 51 subjects. Each of them performed 18 activities for a duration of 3 min each. Aside from

coarse activities, such as walking, jogging, and sitting, they also collected ADL, e.g., eating soup, writing, and drinking from a cup. The smartphone was placed in the pocket of the

participants. The UniMiB SHAR17 dataset consists of data from 30 subjects performing 9 coarse activities and transitions. The data collection followed a protocol and subjects were asked to

place the phone in the front trouser pockets, half of the time in the left and the other half in the right pocket. The activities include, among others, standing up after lying down,

running, walking, and going upstairs. The SB-HAR18 dataset consists of data from 30 subjects. They performed a protocol of six basic activities (standing, sitting, lying, walking, walking

downstairs and walking upstairs). They additionally collected postural transitions: stand-to-sit, sit-to-stand, sit-to-lie, lie-to sit, stand-to-lie and lie-to stand. Participants wore a

smartphone on the waist. The experiments were recorded with a video camera, and the recordings were used for labeling the activities and the transitions. The KU-HAR19 dataset consists of

data from 90 subjects and 18 different coarse activity classes, such as standing, sitting, walking, taking the stairs, and jumping. The data collection took place in a classroom, which was

monitored by the researchers. Participants placed the smartphone in a pouch bag around their waist. The dataset collected by Garcia-Gonzalez20 consists of smartphone data from 19 subjects.

Unlike the other datasets, which were collected in a controlled environment and following a protocol, this data was collected in the subjects’ own environment and with their own smartphones.

The position of the smartphone is also unknown. This dataset however consists of only four activity classes: inactive (meaning not carrying the phone), active (carrying the phone and

performing an activity that does not include ambulation, such as sitting), walking (ambulatory activities, such as walking, running and jogging), and driving (moving with engine-powered

transport, such as a car, train, bus, or motorbike). The Extra-Sensory21 dataset consists of data collected from 60 subjects in their own natural environments, with their own phone and not

following any protocol, but rather engaging in their own routine. This dataset includes a large number of activities, both coarse activities, such as walking, standing, and sitting, and ADL,

such as cleaning, cooking, and washing dishes. This dataset also includes context data from the phone, such as light, temperature, and audio. A drawback of this dataset is that the data is

not continuous, as every minute only 20 s of data are being sampled. Additionally there are mislabeled samples22, such as a flat accelerometer signal when the label is walking, as well as

impossible combinations of labels, for example walking and sitting at the same time. However, this mislabeling is to be expected as the activities were real-world and free, the study was

uncontrolled, and the labels are self-reported by the participants. The DAHCC23 dataset was collected by our research group and consists of data from 31 participants. Data collection was

carried out in a house equipped with ambient sensors. Additionally, participants wore a wrist-worn wearable sensor and used a smartphone from which various different data modalities were

collected. All the participants were provided with a neck lanyard for their smartphone, which could be attached with a magnet on the t-shirt or blouse of the participant. This was chosen as

it is an unobtrusive manner to ensure that the smartphone is carried as much as possible on the person, and many of the elderly are already used to wearing a nurse call button around the

neck in this fashion. They were all asked to use the lanyard as much as possible, but were free to not do so if they didn’t want to. Each participant spent a day in the house. During data

collection participants were asked to do their own daily routine as if they were at their home. The labels were provided by the participants themselves through a mobile phone labeling

application installed on the same phone from which data was collected. The environment was semi-controlled, in the sense that everyone collected data in the same house, but participants were

not asked to perform the ADLs in specific places within the house. Execution is however uncontrolled as participants could choose when and where to perform the activities, using objects of

their choice, etc. In this dataset there are more than 12 ADL including cooking, showering, working on a computer, eating, toileting and watching TV. Table 1 highlights the differences

between the discussed datasets. Within this research, we evaluated our ADL detection method using the DAHCC dataset because it is the only dataset focusing on ADL, which contains continuous

sensor data from both ambient and smartphone sensors. Moreover, the dataset was collected in a real-world environment, in which participants were free to choose their actions as they would

in their normal daily life. As such, this give a realistic view on how ADL are performed in the home. Note that one limitation remains of all the aforementioned datasets, including the DAHCC

dataset, i.e., they involve adult participants, meaning that no elderly were included, so additional efforts might be needed to translate ADL detection to the elderly population. RELATED

WORK Due to the widespread availability and affordability of smartphones, the use of smartphone sensors for HAR has gained significant attention in recent years, including the exploration of

accelerometers, gyroscopes, magnetometers, and/or a combination for these, for HAR. Two types of studies can be discerned. The first focuses on processing the sensor data to classify

low-level (coarse) activities, such as walking, running, cycling, and sitting. The second focuses on detecting more complex (ADL) activities, such as cooking, eating and cleaning. In this

section, we review the most relevant and recent studies for each of these. LOW-LEVEL ACTIVITY RECOGNITION There has been extensive research focusing on the detection of low-level activities,

such as sitting, standing, walking, running, cycling and taking the stairs. Shoaib et al.24 use a traditional ML approach, in which they use sliding windows over the smartphone sensor data

to extract features and then apply a classification algorithm, to identify seven activities: walking, running, sitting, standing, jogging, biking, walking upstairs and walking downstairs.

They studied nine different classification algorithms, such as Support Vector Machines (SVM), Random Forest (RF) and Logistic Regression (LR). Performance of the models was compared when

using only accelerometer, only gyroscope and the combination of both. They performed all experiments placing the phone on five different locations: right/left jeans pocket, belt position

above the right leg, right wrist, and right upper arm. In this work they achieve accuracy of above 90% for all the activities, though they report cross-validation results with stratified

split, which means that there might be data from the same subjects in both training and test. They conclude that the accelerometer signal is in general superior to the gyroscope to classify

the different activities, except for the stairs activities. Additionally they found that these sensors complement each other only when they both individually perform poorly. If one of the

two achieves high accuracy individually, then their fusion brings marginal improvement. Drawbacks of this study are the limited number of activities and the data collection protocol, which

is performed in a controlled environment and is not representative for real-world scenarios. The data they collected is not publicly available. Reyes-Ortiz et al. researched18 the detection

of not only low-level activities, but also transitions, such as sit-to-stand, lie-to-sit, and lie-to-stand. They also applied a traditional ML approach, calculating features from the

accelerometer signal and training a SVM for activity and transition detection. They evaluated their methodology on the SB-HAR dataset which is described in section “Datasets”. Hence, their

results may not reflect the performance of their approach in real-world scenarios. More recently, Skider and Nahid19 proposed a RF model for classification. The model is evaluated on the

KU-HAR dataset described in section “Datasets”. They achieved an overall accuracy of almost 90%. Similarly to the previous two works discussed, their data was collected in a controlled

environment following a protocol, limiting the relevance to real-world applications. In recent years deep learning techniques have gained more attention due to their capabilities of

automatically learning features and higher classification accuracy of human activities in general. For example, Bianchi et al.25 propose a convolutional neural network (CNN) architecture.

They evaluated the performance of their model on the UCI-HAR dataset, which employed a controlled and observed protocol, and achieved a global accuracy of 92.5%. Abdel-Basset26 proposed a

long short-term memory (LSTM) architecture followed by an attention mechanism for the temporal fusion of sensor data. Concurrently they applied a convolutional residual network for the

spatial fusion of sensor data. They evaluated their methodology on the UCI-HAR and WISDM datasets, which are both controlled and observed protocols, and achieved results of more than 97% in

F-1 score on both datasets. A CNN-LSTM model is proposed by Ankita27, in which the raw signal is used as input for the CNN, and the output of the CNN is used as an input for the LSTM. They

evaluated their methodology on the UCI-HAR dataset and achieve a global accuracy of 97.89%. Even though the vast majority of research is being evaluated on data collected in controlled

environment28, there are some studies that evaluate their methodology on real-world data. For example, in the work of Cruciani22, the authors proposed a personalization methodology for HAR.

They focused on five low-level activities: lying, sitting, walking, running, and cycling. They evaluated their methodology on the Extrasensory21 dataset, described in section “Datasets”.

Their best performing model achieved a balanced accuracy of 75%, and they observed difficulty in distinguishing sitting from lying activity. For the sitting activity they observed a recall

of only 54%. Collecting labeled real-world data is a cumbersome and difficult task that comes with many challenges. However, it is of crucial importance to train and evaluate models on

real-world data, as there is little evidence that models trained on data collected in controlled settings generalizes to real-world settings28,29. In this work, we regard low-level activity

recognition as only a utility rather than main focus of the research. Nevertheless, we still encountered challenges to follow the best practices and lessons learned from previous studies.

The dataset we used in our research does not contain low-level activity labels. So, instead of using a publicly available data that was collected in controlled setting and train our

low-level HAR model on this data, we decided to take an extra step and obtain labels. We achieved this by using the available wrist-worn wearable data and using a pre-trained model, which

has previously been evaluated on real-world data, to obtain the labels. This way we could train and evaluate our model on real-world data which was adequate for our research. With this

approach we try highlight the importance of using real-world data and to show the community that there can be creative ways to retrospectively obtain labels for unlabeled data. ADL

RECOGNITION Whereas there is a lot of research on the detection of low-level activities using smartphones, the research on the detection of ADLs is rather limited. There are few studies on

ADL detection, such as those of Wanf et al.30 and Stikic31 that combine wearable (wrist-worn) sensor and ambient sensor data. However, in our work we focused on the potential of a

smartphone, and hence keep the scope of related work section also to research using smartphones. To best of our knowledge there is only one work that has focused on using smartphone for ADL

detection. The work of Roy32 used an indoor location sensor (infrared motion sensor) to provide context for the smartphone-based sensing. To do so, they detected low-level activities from

the raw accelerometer data, and associated each ADL with a six-dimensional feature-vector consisting of the number of frames (or duration) of each of the (six) low-level activities. For

example, if an instance of cooking consisted of three frames of sitting, four frames of standing and seven frames of walking, the corresponding feature vector would be [3,4,7,0,0,0] as the

last three low-level activities (running, lying, and climbing stairs) do not have any occurrences in the instance of cooking. As a last step they added a seventh dimension to this feature

vector that represented the indoor location of the person (here limited to kitchen or living room). The ADLs they collected were cleaning, cooking, taking medication, sweeping, washing

hands, and watering the plants. Each subject repeated the ADLs four times. In their evaluation they discussed that the low-level activities are not representative for the ADLs they picked,

as they did not achieve a classification accuracy higher than 50%. They based their conclusion on the fact that the ADLs they research are very specific and mainly hand involving activities

and the low-level activities are either lower body movements or simply body postures. However the feature vector they compute from the low-level activities has also several limitations: they

only counted the number of frames in which a low-level activity was detected, but there was no information about the order in which they happened. Additionally they used a hard activity

decision for each frame whereas using the probabilities for each low-level activity within that frame might be more informative. They evaluated their approach on a second dataset, namely the

Opportunity33 dataset. This dataset does not contain smartphone data, but does have data from several body worn accelerometer sensors, complemented with accelerometer and gyroscope sensors

placed on objects, and ambient sensors, such as switches and accelerometer sensors in drawers, kitchen appliances and doors. In this dataset there are no explicit low-level activities

present, but it does contain micro-movements, such as opening and closing of the fridge and cupboards, toggling the lights on and off, and cleaning the table. They also collected ADLs, such

as grooming, preparing and drinking coffee, and preparing and eating a sandwich. Applying the same methodology of inferring ADLs based on micro-movements and location, they observed

reasonable results, an average of about 75%, on the Opportunity dataset. They concluded that their approach can be relevant if the low-level sequences are representative for the ADLs.

However, they shifted the challenge towards detecting these micro-movements, which might be more challenging than detecting the low-level activities. Additionally the ADLs they considered

are rather limited and do not contain crucial activities such as toileting and showering. For the low-level activity classification, they tested several algorithms, i.e. multi-layer

perceptron, Naive Bayes, Bayes Net, Decision Table, Best-First Tree and K-star. The paper does not elaborate whether the micro-movements detection was tackled. All of these used a vector of

features calculated from the raw accelerometer data. For the location inference they used the Hidden Markov Model (HMM) algorithm. Currently there is only limited research on ADL detection

based on smartphone data. There is a big gap in research regarding different aspects: the smartphone potential hasn’t been explored in great extent, and the methodology is evaluated on lab

collected data and is not representative for real-life scenarios. In our work we try to close this research gap by exploring different smartphone modalities. We additionally research the

potential of incorporating ambient sensors for more accurate ADL detection. Moreover, the approach we propose is adequate for continuous and long-term ADL monitoring. Finally, we evaluate

our models on a real-world collected dataset. METHODOLOGY In this section we describe our methodology for building an ADL detection model starting from the smartphone sensors as basis and

researching which other ambient modalities can improve the ADL classification. Our methodology relies mainly on the accelerometer sensor in a smartphone, but also considers other smartphone

modalities, such as android’s built-in step detection, the ambient light sensor, the screen status and the application activity, i.e. whether or not there is an application actively running

in the foreground. We adopted a hybrid approach in which we first performed low-level activity detection based on the smartphone accelerometer. The probabilities for each of the low-level

activities were then used as features for detecting ADLs. We then gradually incorporated features from other smartphone sensors and monitored their impact on the accuracy for detecting ADLs.

Finally, we also incorporated ambient sensors to evaluate how they influenced the ADL detection performance. An overview of all the modalities and algorithms that make up our methodology

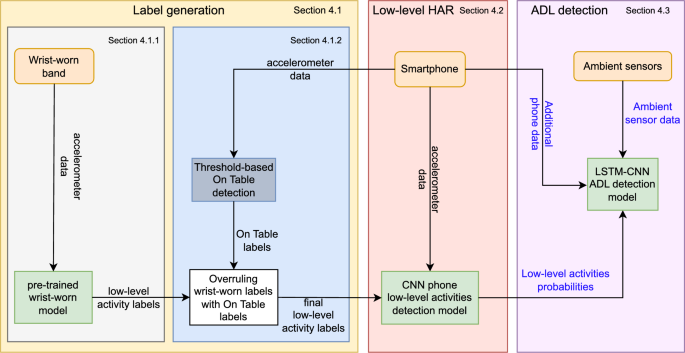

can be found in Fig. 1. In the following subsections we describe each block in our methodology in more detail. The low-level activities that we detect are: lying down, (smartphone) on table,

running, sitting, standing, and walking. Our approach has two steps: First, in section “Non-intrusively obtaining labels for training the smartphone-based low-level HAR model”, we obtain

low-level activity labels to train the model (see section “Empactica wearable HAR model”) and design a threshold-based model to detect when the smartphone is on a table (or other surface,

i.e. not on the person) (see section “Phone on table detection”) Next, in section “Low-level HAR”, we use these labels to low-level activity recognition model based on smartphone

accelerometer data. After the low-level activity detection, the smartphone-based ADL detection is detailed in section “ADL detection”. First, we trained an ML model that uses as features

only the prediction probabilities of the low-level classes that we obtained from the low-level activity detection model (as described in section “Low-level HAR”). We afterwards added

features from other smartphone sensors and subsequently ambient sensors and analyzed the impact on the performance of the ADL detection model. In this study we re-use data from a public

dataset of anonymized data (https://dahcc.idlab.ugent.be/). The original data collection of the DAHCC dataset was approved by the ethical committee of the Faculty of Engineering and

Architecture of Ghent University, in accordance with the relevant guidelines and regulations. All participants have signed an informed consent to make their data publicly and anonymously

available. NON-INTRUSIVELY OBTAINING LABELS FOR TRAINING THE SMARTPHONE-BASED LOW-LEVEL HAR MODEL EMPACTICA WEARABLE HAR MODEL As in the DAHCC dataset23 no low-level activity labels are

available, the first step was to generate (ground truth) labels for the low-level activities that could be used as features for the ADL detection models. As can be seen in Table 1, there is

data available from both smartwatches and smartphones. In previous work34, based on another dataset containing annotations of low-level activities performed in the real-world, a boosted

trees model was trained on wrist-worn accelerometer data from an Empatica E4 wearable using human-engineered features. This model achieved an overall performance of 90% of balanced accuracy.

It is worth noticing that this model used sleeping data as lying down activity, so the results reported in34 do not reflect the accuracy of this model for, for example, detecting lying down

in a sofa. We therefore obtained labels for the low-level activities performed in the DAHCC dataset by processing the wrist-worn accelerometer data, and using the pre-trained model to make

low-level activity predictions on this data. As such, we obtained activity probability predictions every 7.5 s for the following activities: lying down, running, sitting, standing, and

walking. Next, we applied label smoothing and per 1-min aggregations of predictions as a post-processing step. The results of this post-processing were our final, per minute, low-level

activity labels obtained from the wrist-worn accelerometer. PHONE ON TABLE DETECTION It is important to detect when a smartphone is lying stationary on a surface, e.g. a table, as then the

accelerometer sensor of the smartphone becomes unreliable for ADL detection. Since the labels for the low-level activities were obtained from a wrist-worn accelerometer, these labels can not

be used when the phone is on table. We therefore developed a _Phone On Table_ detection module. This module solely uses the smartphone accelerometer and is threshold based. We use a 1 s

window and look at the mean value of the Z axis and the standard deviation in all three axes separately. We require that the mean value of the Z axis is greater than 9 or lower than -9 as

then the smartphone is positioned screen up or down respectively. We additionally require that the standard deviation is lower than 0.7 in each axis (to be robust for sensor noise). Using

these thresholds, we can identify the periods when the smartphone is lying stationary. Next, we combined these periods with the predictions obtained from the wrist-worn activity model by

overruling the wrist-worn predictions with the _on table_ predictions whenever we detected that the smartphone was stationary. This way we obtained labels for the following classes: lying

down, on table, running, sitting, standing, and walking. LOW-LEVEL HAR Before building our smartphone-based low-level activity recognition model, we threw away the Running labels obtained

from the pre-trained wearable-based model, as we considered this irrelevant for detecting ADLs and only two out of the 31 participants in the dataset had collected running data. We trained a

CNN model that can predict the following 5 classes: lying down, on table, sitting, standing, and walking. Based on experience from designing low-level activity detection models based on

wrist-worn accelerometer data29, a CNN architecture was chosen for its simplicity yet effectiveness for this task. The architecture is shown in Fig. 2. We used 6 s windows of accelerometer

data with 3 s of stride, resulting in an input of length 192 data points. We considered this window length to be long enough to capture the essence of an activity, but not too long risking

including more activities in the window. As can be seen in Fig. 2, the architecture consists of 7 convolutional layers with either 16 or 32 filters, kernel sizes of 5 resp. 3, and we apply

max pooling. At the end we added two dense layers of 32 resp. 16 neurons, and a softmax layer. The output is a 6 values long vector, each value indicating the probability of the

corresponding low-level activity. This architecture has been shown effective by the authors29 for detecting similar activities. For data augmentation we incorporated a custom rotation layer

that performs small random rotations on the accelerometer data. One can think of this layer as simulating small differences positions of placing / hanging the smartphone (attached not fully

straight upwards on the shirt, tilting a little forward or backward due to looser shirt, etc.). This makes our model more robust and adequate for real-world scenarios. We also added Gaussian

noise on the input data, and used spatial dropout and normal dropout for regularization. For evaluation, we kept 10 participants as a holdout set. The other 21 participants were used for

tuning the hyper-parameters using 4-fold group cross-validation where each fold consisted of train data from 15/16 participants and validation data from 6/5 participants. Doing this was more

time-efficient for hyperparameter tuning than 5-fold, and resulted in a better divided train/validation/test split. For optimizing the hyper-parameters we used the hyperopt package35.

Results of the model are discussed in section “Low-level HAR detection model”. ADL DETECTION The ADLs that we considered are: preparing drink, preparing meal, toileting, eating (including

drinking), using the computer, watching TV, walking, showering, organizing, using the smartphone, room transition, and other (all the other activities that are not one of the previous ones).

These ADLs were chosen in collaboration with healthcare experts of the imec.ICON PROTEGO36 consortium as these activities are considered to be core activities of the daily lives of elderly

that are frequently linked to the occurrence of alarming situations, e.g., a fall, or lack of nutrition, hydration or movement. As such, they are a crucial part of monitoring human behavior,

and thus their accurate detection is of great importance. Below, we first discuss which additional smartphone sensors (section “Phone sensors and features”) and ambient sensors (section

“Ambient sensors and features”) were selected to combine with the low-level activity detection to perform ADL detection from all the data that was collected within the DAHCC dataset. Next,

we discuss how the ADL labels were provided by the participants and how they were cleaned up to enable better training of the ADL detection model (section “Label handling”). Finally, we

detail the architecture of the ML model (section “ML model architecture”) and the accompanying hyperparameter optimization (section “Hyper-parameters optimization and evaluation”). PHONE

SENSORS AND FEATURES Every smartphone is equipped with a variety of sensors. In this work we included, as already stated, the motion sensor, i.e. accelerometer, as basis. We used the

accelerometer indirectly, by first using the raw accelerometer data to make predictions for the low-level activities. The probabilities for these low-level activities are then used as

features for the ADL detection. We also considered the following additional smartphone sensors: (i) the Android built-in _step detector_, from which we derive the number of steps taken in

the sample time window as feature; (ii) the _ambient light_ sensor that measures light intensity in lux, sampled at 1 Hz, from which we use the window mean value as feature; and (iii) we

also created a _phone usage_ feature (whether or not a person is using the smartphone). We detect the start and end time of active interaction with the smartphone based on two features, i.e.

the _screen status_ (on, off, locked, unlocked) and whether an application has been opened. During data collection we logged an entry every time a new app came to the foreground on the

smartphone. An entry consists of the app name and the timestamp at which it was opened. This resulted in a list of apps and the corresponding opening times. From this list of opened

applications, we first removed applications that we consider to be system utilities, such as the keyboard appearing within an application. The list of system utilities can be found in the

Supplementary Information. Applications can disappear from the foreground for two reasons, i.e. the user switches to another application or the user stops using the smartphone. To capture

the latter, we insert _Off_ entries in the filtered list of opened applications at the timestamps that the app stopped being in foreground, either because the screen of the smartphone got

locked or the phone screen was turned off. We then sorted the list based on the timestamps in ascending order. Next, we added to each entry, the timestamp of the successor app, or in certain

cases the timestamp of the screen going _Off_, which represents the end time of using this app. This results in a list of apps with their respective start and end usage times. Some of these

entries are _Off_ entries, which in reality is not an app but the period in which the screen was off or locked. We removed these entries from the list, as these are moments in which no app

was in the foreground and therefore the smartphone was not used by the person. The final list included entries which correspond to periods in which the person is actively using the apps and

smartphone. The feature we generated from this list is a binary feature indicating whether the person is using the smartphone at a given moment. To summarize, we considered three additional

smartphone features next to the accelerometer: number of steps taken, mean light intensity, and whether or not the person was actively using the smartphone in the given window. AMBIENT

SENSORS AND FEATURES Even though there are many sensors available in the DAHCC dataset, in this work we considered only a small subset. We chose the subset of sensors based on few grounds:

(i) relevancy to the ADLs we were targeting, and (ii) quality and reliability of the sensor data. We also looked at cost and ease of installment of the sensors in the home to further refine

the selection. One of the ambient sensors we selected was the _AQURA location sensor_. Room level localisation is one of the most valuable sensors when it comes to elderly healthcare and

monitoring, not just for activity recognition but also for emergency cases. As room level localisation is very relevant for ADL detection, we decided to incorporate it in our research. The

sensor is a proximity-based indoor localisation37 solution that combines beacons and a sensor that is worn on the body that sends a value every time the sensor detects a different location.

From this localisation data we extract a feature that indicates in which room the person is in the given time window. An _EnOcean fridge contact sensor_ was used to detect when the fridge

was opened. This sensor is very cheap and easy to install, while providing valuable information for ADL detection. From this data, we generate a feature equal to the number of seconds since

the fridge was last opened. As previously mentioned, ADLs have a temporal dependency, which is one of the reasons why we chose for this feature instead of only instantaneous and binary

open/closed feature. Next, a _Velbus power consumption sensor_ was used to measure the power consumption of major appliances. In this work we monitored the power consumption of five

appliances that are used a lot during the ADLs we are trying to detect: cooking plate, cooking hood, electric water kettle, coffee machine, and TV. For each of the appliances we calculated a

feature that represents the number of seconds since the appliance was used for the last time. Similarly to the reasoning for the fridge feature, also here, we consider this feature more

informative than a simple binary on/off feature. The features were normalized over a 12h period. The Velbus power consumption sensor is nor easy, nor cheap to install, but in this work we

used it only as if it were a binary switch (on/off) sensor. So the Velbus sensor can be replaced with a cheap and easy to install switch sensor without losing adequacy for our methodology.

Finally, a _light sensor_ was used to measure the light intensity in the two toilets and the bathroom. In the toilets the lights are motion triggered and turn on when a person enters the

toilet. The bathroom did not have natural lighting so a person always had to turn on the light when they were in the bathroom. The feature we calculated from these sensors is a binary

feature that indicates whether the light is on or off in the given room. In our case this can be interpreted as whether or not the person is in the given room. We did not consider the light

sensors in other rooms as they did not immediately correlate to whether the person was in that room or not. We explored the light sensor based feature, primarily, to check if these light

sensors would be an adequate alternative for the AQURA (localisation) sensor. LABEL HANDLING The ground truth ADL labels in the DAHCC23 dataset are obtained through self-reporting.

Participants logged their ADL through a smartphone application. As the dataset aimed to reflect a real-world situation as closely as possible, participants were given very few labeling

instructions. Mainly they were asked to indicate the start and the end time of the period in which they performed the ADL(s) and provide the label(s) thereof. As a consequence, a variety of

labeling strategies have emerged, varying according to individual preferences. Some participants tried to provide single labels wherever possible, even if the activity was very short, e.g.,

room transition. Others would group several activities in a single input and thus same time period, e.g. preparing food and going to the toilet. Even though it is possible to perform two or

more activities at the same time, such as eating and watching TV, for other activities it is clear that they can only happen one after the other. For example, some people labeled in a single

input working and room transition, or room transition and toileting. It is clear that these activities can not happen concurrently, but this way there are no specific times of where the

first activity ended and the second started. Therefore, in the cases where room transition appeared as first or last activity, we allocated 30 s to the room transition activity (the first

resp. last 30 s of the provided period), and reserved the remaining time for the other labeled activities in this time period. Other situations in which two or more labels were provided are,

for example, preparing meal and toileting. It can happen that the person starts preparing a meal, e.g., puts a pot of water on the cooking top, and goes to the toilet while waiting for it

to boil. As in this case we did not have the necessary information on when exactly the toileting activity took place, we decided to consider the activity that the person actively engaged in

as the label, e.g., in this case toileting. The same principle was applied for other examples of time periods that received multiple simultaneous labels, such as using a computer and

toileting, using a computer and organizing, watching TV and toileting, and eating and toileting. People also engaged in, and thus also labeled, other activities which are irrelevant for the

ADL detection use case. For these, we assigned the _Other_ class that includes all activities beyond the 11 selected ADL activities. Finally, we also had periods of data without any label.

We still used this data in the training process, in a way such that the predictions of these periods do not have effect on the training loss. This is explained in more detail in the

following section “ML model architecture”. ML MODEL ARCHITECTURE The architecture we have chosen for the ADL detection is a Long Short Term Memory (LSTM) layer followed by two convolutional

layers. LSTMs38 have a chain like structure in which the repeating module consists of four neural network layers (three sigmoid layers and one tanh layer). The core idea of an LSTM is that

the cell state and the four neural network layers interact to decide what information will be forgotten, what new information will be stored, and what the output will be. This way, LSTMs

address the long-term dependency issue that other networks, such as Recurrent Neural Networks (RNNs) had. LSTMs are therefore adequate for our challenge as ADLs have temporal dependencies

and (past) states of the situation are important for detecting transitions and hence activities. Figure 3 gives a schematic overview of our ADL detection architecture. We have decided to

work with windows of 10 min, with 2 min stride. We believe that 10 min is long enough to capture several ADLs within the window to learn relationships between them: such as eating after

having cooked, even if one went to the toilet in between. For the same reason we chose 2 min stride to have sufficient opportunities to capture related activities in a single window. As

there could be more than one ADL being performed within those 10 min, and, additionally, also one or more ADL concurrently, we formulated the problem as a multi-label classification. We

therefore did not use a fully connected layer, but 12 filters instead in the last convolutional layer, where 12 is the number of activities we are detecting, i.e. the classification classes.

We then applied a sigmoid activation function on the output of the last convolutional network, and performed a binary classification for each of the activities. As such, the input data to

our network consists each time of a window of 10 min long. This window contains a data point every 3 s, and thus has a length of 200 data points in the time dimension. To study which

(combination of) sensor modalities are required to detect (specific) ADLs, we experimented with the following different feature vectors to represent the data points every 3 s: *

probabilities of low-level activities only, * probabilities of low-level activities, phone use and steps, * probabilities of low-level activities and features of appliances usage, *

probabilities of low-level activities and all other phone features, * probabilities of low-level activities and location in the home, * all features, i.e. probabilities of low-level

activities, plus all other phone features, plus ambient sensors and location, * all features except location, and finally, * features from ambient sensors only. The LSTM layer returns the

full sequence, for every time point, rather than only the last sequence. We therefore made a skip connection and concatenated the output with the original input fed to the first

convolutional layer. In the first convolutional layer, we applied 16 filters of kernel size 1, and ReLu as activation function. We also applied a max pooling of size 2 as this reduces the

time dimension to 100. The latter is used as the input to the second convolutional layer where we applied 12 filters (equal to the number of activities we want to detect) of kernel size 1,

no pooling and a sigmoid activation function, so that we can perform binary classification over the 12 activities. As this is a densely-labeled multi-label classification problem, we chose

the loss function to be the mean of the 12 balanced binary cross-entropy losses corresponding to the 12 classes, weighted along the time dimension to reflect the presence of labels. The

weights along the time dimension were set to zero to accommodate for the unlabeled time points. This way we allow the LSTM model, which needs continuous chunks of data, to look at the sensor

data / features, but we do not consider predictions for the unlabeled time points in the loss function. As the activities are of varying length and probability of occurrence throughout a

normal day, this resulted in a highly imbalanced dataset. For example, using computer is an activity that can last for hours, whereas room transition is normally always very short. As a

result, there are many more time points labeled as _not room transition_ than time points labeled as _room transition_. We therefore used binary class weights (class being positive or

negative here) for each activity to address this imbalance issue. HYPER-PARAMETERS OPTIMIZATION AND EVALUATION For hyper-parameter optimization and evaluation we adopted the same approach

and data splits as in section “Low-level HAR”. We kept 10 participants as a holdout set, and the other 21 participants were used for hyper-parameter tuning using a 4-fold cross-validation.

The following hyper-parameters were optimized: learning rate, number of LSTM units, dropout rate, Gaussian noise, and l1 and l2 regularization. We fixed the number of epochs to 350 for all

experiments, as preliminary testing showed that models converged by this number. The batch size was fixed to 1024. As we already mentioned in section “Label handling”, the provided ADL

labels are not 100% reliable. As such, we adopted several ways to evaluate our methodology: (a) binary classification metrics for each activity separately, such as logloss, balanced

accuracy, F1-micro, F1-macro, true positive rate (TPR), and true negative rate (TNR), (b) binary confusion matrices for each activity, and (c) a confusion matrix that includes all the

activities together. The definition of precision and recall are given in Eqs. (1) and (2) respectively. $$\begin{aligned} \text {Precision} = \frac{\text {TP}}{\text {TP}+\text {FP}}

\end{aligned}$$ (1) $$\begin{aligned} \text {Recall} = \frac{\text {TP}}{\text {TP}+\text {FN}} \end{aligned}$$ (2) where TP are the true positives, FP the false positives and FN are the

false negatives, F1-MICRO is a measure of the overall accuracy, where the precision and recall of each class is calculated globally (across all classes) rather than independently, in Eq. (3)

$$\begin{aligned} F1_{micro} = 2 \frac{(\text {Precision} \cdot \text {Recall})}{(\text {Precision} + \text {Recall})} \end{aligned}$$ (3) F1-MACRO measures the average accuracy, where the

precision and recall of each class are calculated independently and then averaged together, as shown in Eq. (4) $$\begin{aligned} \text {F1}_{macro} = \frac{1}{C} \sum _{i=1}^{C} 2

\frac{(\text {Precision}_i \cdot \text {Recall}_i)}{(\text {Precision}_i + \text {Recall}_i)} \end{aligned}$$ (4) where _C_ is the number of classes. And finally, BALANCED ACCURACY is

defined as the average of the recall for each class as shown in Eq. (5), while LOGLOSS shows how close a prediction probability comes to the actual/corresponding true value as defined in Eq.

 (6): $$\begin{aligned} \text {BalancedAccuracy} = \frac{1}{C} \sum _{i=1}^{C} \text {Recall}_i \end{aligned}$$ (5) $$\begin{aligned} \text {logloss} = -\frac{1}{N} \sum _{i=1}^{N} \sum

_{j=1}^{C} y_{i,j} \log (p_{i,j}) \end{aligned}$$ (6) where _C_ is the number of classes, _N_ is the number of samples, \(y_{i,j}\) is the true label of sample _i_ for class _j_, and

\(p_{i,j}\) is the predicted probability of sample _i_ for class _j_. Besides calculating the binary classification metrics for each activity separately, we also provide a full confusion

matrix that includes all the activities together. Since we used multi-label classification, we cannot construct a confusion matrix out of the box, as every time point can have multiple

labels. To overcome this, for every prediction of the model, consisting of one or more predicted ADLs, and having one or morelabels, we perform a prediction-label matching algorithm to

produce a “flattened” list of single-prediction single-label pairs by following three steps: * Step 1: If an ADL is present in both the set of predictions and the set of labels, they are

matched and added to the list of single-prediction single-label pairs. An example of this scenario is the activity _WatchingTV_ in the example shown in Figs. 4 and 5. * Step 2: As long as

there are unmatched ADLs left in both the predicted set and the label set, they are matched in arbitrary order (and thus will appear as confused ADLs in the confusion matrix). An example of

this scenario is shown in Figs. 4 and 5 where the labeled ADLs _Toileting_ and _Organizing_ are matched with wrongly predicted ADLs _Using Phone_ and _Room Transition_. As we are unable to

determine which identified ADL corresponds to each labeled ADL, we consistently include them in a random sequence. This introduces some randomness in the confusion matrix, but we empirically

noted that this only rarely happens so we proceeded with this approach. * Step 3: Finally, if there are unmatched predictions or labels left, two things can happen. In case of a label

without a prediction, a false negative pair is generated for each of the remaining labels. This is shown in Fig. 4 where the labeled ADL _Other_ is matched with a “False Negative”. In case

of a prediction without a label, a false positive pair is generated for each of the remaining predictions. This is depicted in Fig. 5 where the wrongly detected ADL _Other_ is matched with a

“False Positive”. As such, the amount of single-label single-prediction pairs is the maximum of the amount of predictions and the amount of labels, leading to a rather underestimation of

performance. We repeated the above procedure for each time point in the test data. This results in a confusion matrix with all labeled activities plus a row with label “false positive” and a

column “false negative”. This is useful to inspect which activities were often predicted but didn’t happen, and which ones were missed. RESULTS In this section we provide the results of the

performed experiments. In section “Low-level HAR detection model”, we first present the results of the CNN model that performs the low-level HAR, and then, in section “ADL detection models”

we present the results of our LSTM models that detect the ADL, trained with different subset of features as discussed in section “ML model architecture”. LOW-LEVEL HAR DETECTION MODEL In

Table 2 we present the results of the CNN for detecting the low-level HAR. For each performance metric we show the mean value and the standard deviation (std), obtained across the 10

participants in the holdout set. In Fig. 6 we show the confusion matrix obtained on all 10 participants together. The average balanced accuracy is 67%. Lying is the activity that is least

accurately predicted, often mistaken for sitting. The best detected activity is phone on table, followed by the walking activity. ADL DETECTION MODELS In this section we report the results

of the ADL detection models trained on different sensor subsets. We present results for two different combinations, the results of other combinations can be found in the Supplementary

Information. These combinations are: only low-level probabilities, low-level probabilities and location in the home. We chose these combinations because they allow for a discussion on the

trade-off between performance versus cost and overhead of including more (ambient) sensors. Finally we present results from a baseline model that does not include LSTM layer, to show the

relevance of including LSTM layer in the architecture. ONLY PROBABILITIES In this section we show the results obtained when using only the probabilities of the detected low-level activities

as features.  Table 3 shows the mean and std of the performance metrics for each activity across the 10 participants in the holdout set. For all of the activities we observe an average

balanced accuracy of 55% or more. The best distinguished activities are walking, showering and toileting, while eating is the activity for which the model performs the worst. Figure 7 shows

the confusion matrices for all activities over all the 10 participants in the holdout set. From these figures we can observe that for the activities eating, using phone and room transition,

the model is often confused. However, preparing meal, using computer and watching TV are all activities for which it is not straightforward that they would be detected solely based on

low-level activity features and yet they are detected more than 60% of the time. Figure 8 shows the full confusion matrix after processing the predictions and labels as described in section

“Hyper-parameters optimization and evaluation”. We can see that eating and using computer are often mistaken for each other. This is to some extent to be expected, as both activities are

most of the time performed while sitting on a chair with a table in front. PROBABILITIES AND LOCATION We obtain the best results when using the probabilities of the low-level activities

combined with the location sensor as input source. In Table 4 we see that for all of the activities we achieve a balanced accuracy of more than 60% and in Fig. 9 we can see that the TP ratio

is above 50% for all activities as well. One noticeable degradation in the results is the TP rate of watching TV. Compared to the results when using all sensors, we see a decrease in TP

rate of around 8%. This is explained by the fact that we do not have explicit information from the TV energy usage. Interesting to notice are the results of preparing drink and preparing

meal compared to the ones from using only probabilities for the low-level activities. As both take place in the kitchen one would expect similar results as when using only probabilities.

However, this is not the case and we obtain better results when we include the location information. This may indicate that there is a certain location pattern prior to going to the kitchen

for preparing drink or preparing meal (Table 5). BASELINE MODEL To test the added value of LSTMs and their ability to discover temporal patterns, we trained a model without the LSTM layer.

This results in an architecture with two convolutional layers each with kernel size one. Such a model can thus not extract any temporal patterns. The model was tested for the most desirable

combination of features, as shown by the previous section, namely low-level activities probabilities and location data. We can see that the results are considerably worse than the results

from this model’s LSTM counter part (Figs. 10, 11, 12). Table 6 shows the balanced accuracy for each of the three models next to each other. From this table we can see that incorporating

location information improves the results. Additionally, we see that for all but three activities the LSTM model outperforms the baseline model. DISCUSSION The main goal of this work was to

research the potential of smartphones as a device with all its sensors for ADL recognition. We additionally researched the potential of combining the data from the phone with ambient sensors

that can be installed in the home. In this section we will discuss our contributions, limitations and future work. CONTRIBUTIONS In this work we identified, discussed and filled several

gaps in existing literature. DEVELOP A METHODOLOGY APPLICABLE IN REAL-WORLD SCENARIOS Much of the current research evaluates on datasets that include very specific activities, such as

preparing a sandwich, ironing clothes, and watering the plants that are less relevant for ADL detection. Additionally, the majority of these datasets are collected in a controlled

environment and as such the execution of the activities is very similar among different participants. Moreover, the data collection is often either chunked, meaning each activity is

performed separately, or the sequence of activities is predefined. Often, when object tagging is involved, participants are restricted to using specific objects that are placed in a specific

place in the environment. This conceals several challenges, such as performing activities in a natural, diverse manner and order, as well as performing activities simultaneously. In our

work we address exactly these shortcomings: we developed our model on _data that was collected without interruptions, without scripting and without observation_. People performed the

activities they wanted to, whenever and in the way they wanted to, using the objects they saw fit for performing the activity. The labels are provided by the participants themselves, which

introduces an additional challenge, i.e., people interpret the execution of activities in different ways. Whereas some consider certain activities to be happening in parallel, such as going

to the toilet while cooking, others see the activity of toileting as an interruption of the cooking activity. This shows that there will be different preferences when such an ADL detection

platform is deployed in the real world. Another delta of our work compared to the current state of the art is that we define this problem as a _multilabel problem_ and hence can detect more

than one activity at a time. This is important since ADL are very often performed in parallel. We employ an LSTM architecture using intuitive features, which allows the LSTM to keep track of

various states concerning the person (through the low-level activity probabilities) and the house (through the features extracted from the ambient sensors). We make use of continuous sensor

data even if there are no labels available for certain time regions within a sample. The fact that we use densely labeled data and incorporate weights along the time dimension in the loss

function, allows us to use sensor data that has not been labeled. As such we can use continuous data, instead of limiting it to only labeled periods and throwing away the rest. It is

essential to present continuous data to an LSTM if one wants it to learn temporal aspects of the data. This is something that has not been used or addressed previously in the application of

ADL detection, as most of the available datasets are collected in controlled environments and the data is made available in sometimes even pre-segmented labeled chunks. Additionally, this

approach is suitable for potential personalization through incremental and active learning. In such a scenario we cannot expect the person to always provide labels for a full 10 min at a

time. An approach that relies on only labeled data, would throw away not only unlabeled data, but also labeled periods that are shorter than the chosen sample window. RESEARCH THE POTENTIAL

OF SMARTPHONES FOR ADL DETECTION Smartphone is a device that is nowadays affordable and omnipresent. Current research uses and relies a lot on other ambient sensors, such as location

sensors, RFID tags, and even motion sensors on objects for their methodologies. However, installation, maintenance and usage of these can be costly and as already discussed in previous work,

impractical. We therefore build different modules for extracting useful features from various phone sensors, such as accelerometer, screen status, application usage, step detection and

ambient light. We highlight the potential of using only smartphone for detecting ADL, such as preparing meal, toileting, and watching TV among others. Our results show that this is possible.

With using only the probabilities of the low-level activities as a feature, we obtain a TPR and a balanced accuracy of above 50% for all of the 12 activities. Our results show that

accelerometer is the most valuable phone sensor for detecting the ADL of interest. Additional phone modalities such as phone usage, step count and ambient light, bring only marginal

improvement of TPR of detecting toileting, eating and walking. This is not very surprising as these sensors do not hold specific information valuable for detecting the majority of

activities. One would expect though that the step detector should positively influence the detection of walking (which is indeed the case) and possibly the room transition. It seems however,

that the predictions for walking from low-level HAR detection model are enough and make the step detector obsolete. Additionally, the phone usage feature should bring improvement in the

detecting of the using phone activity, but this is not the case. This might be a result of certain limitations of our study which are discussed in section “Additional challenges and

limitations of our work”, and not the feature being uninformative. RESEARCH THE ADDED VALUE OF AMBIENT SENSORS FOR ADL DETECTION Regardless of the limitations mentioned before, ambient

sensors can be valuable for improving the detection accuracy. Some sensors are adequate for real-world applications and we should not ignore their potential. We therefore researched the

potential of incorporating different combinations of ambient sensors. We constructed meaningful features from these sensors for ADL detection and incorporated them with the features

extracted from the phone. Our results, presented in section “Probabilities and location”, show that room-level location sensor leverages the largest accuracy. Specifically, this sensor

improves the results for activities such as preparing drink and meal, toileting and eating. For the first two we observe an improvement of 27% and 16% in the TPR respectively, 17% for

toileting and 13% for eating. For all of these activities there is an improvement in balanced accuracy as well. These activities might be, in real-world applications, such as elderly

monitoring, of greater importance than activities such as using computer, or using phone. Adding more ambient sensors brings only marginal to no improvement to the accuracy of the models as

can be seen in Supplementary Table 3 and Supplementary Table 6. These results indicate that it may be better to invest in good and accurate room-level location sensor, before thinking of

incorporating other potentially more expensive and more difficult to maintain ambient sensors. ADDITIONAL CHALLENGES AND LIMITATIONS OF OUR WORK There are several limitations to our work

that we would like to discuss. First, we want to reflect on the fact that all the data is collected in the same house. Even though we have data from many participants, and they performed

their activities in full freedom, it is still true that all of this data collection was performed in the same house that was not their personal home. Aside for the possibility that people

might be more swift and comfortable performing activities in their own home, the setup of their houses would be also different. It is now the case that there is only one TV present and that

is in the living room of this house. In other houses there might be several TVs in different locations, such as living room and bedroom. Similarly there are three toilets in the house, and

all appliances are at the same place for all participants. The layout and distance between different room locations is of course the same for every participant, which would not be the case

in different houses. Even though we have chosen the features from all sensors to be as generic, and therefore transferable, as possible, there might be certain aspects of these that will be

correlated to the layout of the house so future research should evaluate robustness of our methodology across different houses. A second challenge and limitation is the labelling process.

Even though self-reporting has advantages for developing more robust models and gaining insight in people’s differences and preferences, it poses certain limitations. For example shorter

activities, such as room transition are totally ignored by some participants, and for others they are shifted in time due to labelling imprecision. Sometimes the actual room transition

activity happens well before, or well after the labelled period. It is understandable that as some room transitions last only several seconds, participants will indicate an approximate

rather than the exact period of time. As previously mentioned in section “Label handling” we had to make certain choices to pre-process the labels. Some activities that were labelled

together under the same period of time were kept together as activities performed in parallel, such as eating and watching TV or working on computer and using the phone. Others, such as room

transition and toileting, were split and the start and end time were adjusted, giving 30 s of time for the room transition. Lastly, some were removed from the label, such as preparing meal

in a label that included both preparing meal and toileting. We consider that a person can in such a case engage actively in only one of those activities, and that would be the toileting in

the given example. A third limitation is the fact that we did not have user-given low-level labels. We obtained the labels by predicting the activities with a pre-trained model using

wrist-worn wearable data. So our phone low-level HAR detection model is limited by the accuracy and the biases by the wearable model. However, the least accurately predicted activity, lying,

is possibly included in only few ADLs, such as watching TV, using phone and other. In general the results we obtain are acceptable, allowing us to further build on the predictions obtained

with this model. A fourth limitation is that processing the features for phone usage based on applications and screen status is challenging. The data is collected using different

smartphones, with different android versions and settings. As such, for some people the phone might never go in locked state, for others the screen would go in ON state and additionally an

application would be pushed to foreground even if they only receive a notification. Additionally, several people refused the data collection of their phone usage. For these people we do not

have application usage and screen status data. This could have a negative impact on the model that includes the phone usage in the combination of features, as for these participants this

feature is calculated to be false, also in the samples labeled as using phone. As a fifth limitation, in our work we consider only 5 data modalities from the smartphone: accelerometer, step

detector, screen status, application usage and ambient light. However, smartphones are equipped with more sensors: gyroscope, magnetometer, linear accelerometer, proximity, keyboard strokes,

etc. These sensors may yield additional information and value for detecting ADL if incorporated. Additionally, we adopt the accelerometer only in an indirect way, namely to calculate the

probabilities of the low-level activities. This might lead to loss of information on the movement when performing different ADL, and thus future work could focus on developing a model that

uses the raw accelerometer, and/or additional higher frequency motion sensors, which may lead to superior performance. Last but not least we did not apply any post processing, such as label

smoothing. There is one prediction every 6 s, which is quite frequent, so a label smoothing over a longer period, such as 30 s might improve the results. CONCLUSION AND FUTURE WORK In this

work we propose a data-driven approach for ADL detection using an LSTM architecture. We research the potential of the smartphone as the main source of data, and results show that, even using

only accelerometer data from the phone, we can achieve satisfactory results. We moreover show that incorporating ambient sensors yields to improvement of the results, but not all sensors

are strictly necessary, and the room-level location sensor is empirically shown to be the most valuable ambient sensor. Our findings can be useful and informative for applications of ADL

detection in real-world scenarios, such as elderly care. We use a single model that can detect different activities, regardless of the location (but location info improves accuracy of the

model), duration or the objects employed during execution. Our approach can additionally detect activities that happen concurrently, which happens often in real-world scenarios, but has not

been researched enough. As we use the smartphone as a main data source, our methodology can be easily employed in different house setups with different ambient sensors available. As future

work we identify the possibility to use extra smartphone sensors, such as gyroscope and magnetometer as these could hold more detailed information for movements specific to certain

activities. We additionally think that it is worth researching the potential of using raw motion sensor data directly for ADL detection, instead of the hierarchical approach we have adopted

in this work, i.e. first calculating probabilities of low-level activities and using those as features for the ADLs detection. There are also other ambient sensors, such as contact sensors

in cupboards, humidity sensor in the bathroom, and tap water utilisation among others, that are left as future research to evaluate there potential on ADL detection performance. Last but not

least, the list of activities can be extended and include more activities such as sleeping, cleaning and exercising. So, it is clear, detecting activities of daily living remains an

interesting challenge to optimize care in an ageing population, with numerous obstacles yet to be overcome. However, we’ve tried with this manuscript to achieve some important strides in

this research area. DATA AVAILABILITY The data used in this work can be found at: https://dahcc.idlab.ugent.be/. REFERENCES * Spasova, S. _et al._ Challenges in long-term care in Europe.

_Eurohealth_ 24, 7–12 (2018). Google Scholar  * Al-Shaqi, R., Mourshed, M. & Rezgui, Y. Progress in ambient assisted systems for independent living by the elderly. _SpringerPlus_ 5, 624.

https://doi.org/10.1186/s40064-016-2272-8 (2016). Article  PubMed  PubMed Central  Google Scholar  * Lewis, C. & Buffel, T. Aging in place and the places of aging: A longitudinal study.

_J. Aging Stud._ 54, 100870. https://doi.org/10.1016/j.jaging.2020.100870 (2020). Article  PubMed  Google Scholar  * Roy, N., Dubé, R., Després, C., Freitas, A. & Légaré, F. Choosing

between staying at home or moving: A systematic review of factors influencing housing decisions among frail older adults. _PLoS One_ 13, e0189266.

https://doi.org/10.1371/journal.pone.0189266 (2018). Article  CAS  PubMed  PubMed Central  Google Scholar  * Savage, R. _et al._ Market potential for ambient assisted living technology: The

case of Canada. In _Ambient Assistive Health and Wellness Management in the Heart of the City_ (eds Mokhtari, M. _et al._) 57–65 (Springer, 2009). Chapter  Google Scholar  * Patel, A. &

Shah, J. Sensor-based activity recognition in the context of ambient assisted living systems: A review. _J. Ambient Intell. Smart Environ._ 11, 301–322. https://doi.org/10.3233/AIS-190529

(2019). Article  Google Scholar  * De-La-Hoz-Franco, E., Ariza-Colpas, P., Quero, J. M. & Espinilla, M. Sensor-based datasets for human activity recognition—A systematic review of

literature. _IEEE Access_https://doi.org/10.1109/ACCESS.2018.2873502 (2018). Article  Google Scholar  * Ranieri, C. M., Macleod, S., Dragone, M., Vargas, P. A. & Romero, R. A. F.

Activity recognition for ambient assisted living with videos, inertial units and ambient sensors. _Sensors (Switzerland)_ 21, 768. https://doi.org/10.3390/s21030768 (2021). Article  ADS

Google Scholar  * Qi, J. _et al._ Examining sensor-based physical activity recognition and monitoring for healthcare using internet of things: A systematic review. _J. Biomed. Inform._ 87,

138–153. https://doi.org/10.1016/j.jbi.2018.09.002 (2018). Article  PubMed  Google Scholar  * Wang, Y., Cang, S. & Yu, H. A survey on wearable sensor modality centred human activity

recognition in health care. _Expert Syst. Appl._ 137, 167–190. https://doi.org/10.1016/j.eswa.2019.04.057 (2019). Article  Google Scholar  * Maskeliunas, R., Damaševicius, R. & Segal, S.

A review of internet of things technologies for ambient assisted living environments. _Future Internet_https://doi.org/10.3390/FI11120259 (2019). Article  Google Scholar  * Riboni, D.,

Bettini, C., Civitarese, G., Janjua, Z. H. & Bulgari, V. From lab to life: Fine-grained behavior monitoring in the elderly’s home. In _2015 IEEE International Conference on Pervasive

Computing and Communication Workshops, PerCom Workshops 2015_. https://doi.org/10.1109/PERCOMW.2015.7134060 (2015). * Share of those 65 and older who are tech users has grown in the past

decade. https://www.pewresearch.org/short-reads/2022/01/13/share-of-those-65-and-older-who-are-tech-users-has-grown-in-the-past-decade/ * Rauber, J., Fox, E. B. & Gatys, L. A. Modeling

patterns of smartphone usage and their relationship to cognitive health. In _NeurIPS_ (2019). * Anguita, D., Ghio, A., Oneto, L., Parra, X. & Reyes-Ortiz, J. L. Human activity

recognition on smartphones using a multiclass hardware-friendly support vector machine. In _Ambient Assisted Living and Home Care_ (eds Bravo, J. _et al._) 216–223 (Springer, 2012). Chapter

  Google Scholar  * Weiss, G. M., Yoneda, K. & Hayajneh, T. Smartphone and smartwatch-based biometrics using activities of daily living. _IEEE Access_ 7, 133190–133202.

https://doi.org/10.1109/ACCESS.2019.2940729 (2019). Article  Google Scholar  * Micucci, D., Mobilio, M. & Napoletano, P. UniMiB SHAR: A dataset for human activity recognition using

acceleration data from smartphones. _Appl. Sci. (Switzerland)_ 7, 1. https://doi.org/10.3390/app7101101 (2017). Article  Google Scholar  * Reyes-Ortiz, J.-L., Oneto, L., Samá, A., Parra, X.

& Anguita, D. Transition-aware human activity recognition using smartphones. _Neurocomputing_ 171, 754–767. https://doi.org/10.1016/j.neucom.2015.07.085 (2016). Article  Google Scholar

* Sikder, N. & Nahid, A.-A. KU-HAR: An open dataset for heterogeneous human activity recognition. _Pattern Recognit. Lett._ 146, 46–54. https://doi.org/10.1016/j.patrec.2021.02.024

(2021). Article  ADS  Google Scholar  * Garcia-Gonzalez, D., Rivero, D., Fernandez-Blanco, E. & Luaces, M. R. A public domain dataset for real-life human activity recognition using

smartphone sensors. _Sensors_https://doi.org/10.3390/s20082200 (2020). Article  PubMed  PubMed Central  Google Scholar  * Vaizman, Y., Ellis, K. & Lanckriet, G. Recognizing detailed

human context in the wild from smartphones and smartwatches. _IEEE Pervasive Comput._ 16, 62–74. https://doi.org/10.1109/MPRV.2017.3971131 (2017). Article  Google Scholar  * Cruciani, F. _et

al._ Personalizing activity recognition with a clustering based semi-population approach. _IEEE Access_https://doi.org/10.1109/ACCESS.2020.3038084 (2020). Article  Google Scholar  *

Steenwinckel, B., De Brouwer, M., Stojchevska, M., Van Der Donckt, J., Nelis, J., Ruyssinck, J., van der Herten, J., Casier, K., Van Ooteghem, J., Crombez, P., De Turck, F., Van Hoecke, S.

& Ongenae, F. Data analytics for health and connected care: Ontology, knowledge graph and applications. In _EAI PervasiveHealth 2022: 16th EAI International Conference on Pervasive

Computing Technologies for Healthcare, Proceedings_, vol. 17 (2022). * Shoaib, M., Bosch, S., Incel, O. D., Scholten, H. & Havinga, P. J. Fusion of smartphone motion sensors for physical

activity recognition. _Sensors (Switzerland)_https://doi.org/10.3390/s140610146 (2014). Article  Google Scholar  * Bianchi, V. _et al._ IoT wearable sensor and deep learning: An integrated

approach for personalized human activity recognition in a smart home environment. _IEEE Internet Things J._https://doi.org/10.1109/JIOT.2019.2920283 (2019). Article  Google Scholar  *

Abdel-Basset, M. _et al._ ST-DeepHAR: Deep learning model for human activity recognition in IoHT applications. _IEEE Internet Things J._ 8, 1. https://doi.org/10.1109/JIOT.2020.3033430

(2021). Article  Google Scholar  * Ankita, _et al._ An efficient and lightweight deep learning model for human activity recognition using smartphones.

_Sensors_https://doi.org/10.3390/s21113845 (2021). Article  PubMed  PubMed Central  Google Scholar  * Straczkiewicz, M., James, P. & Onnela, J. P. A systematic review of smartphone-based

human activity recognition methods for health research. _npj Digit. Med._https://doi.org/10.1038/s41746-021-00514-4 (2021). Article  PubMed  PubMed Central  Google Scholar  * Stojchevska,

M., De Brouwer, M., Courteaux, M., Ongenae, F. & Van Hoecke, S. From lab to real world: Assessing the effectiveness of human activity recognition and optimization through

personalization. _Sensors_https://doi.org/10.3390/s23104606 (2023). Article  PubMed  PubMed Central  Google Scholar  * Wang, Y., Cang, S. & Yu, H. A data fusion-based hybrid sensory

system for older people’s daily activity and daily routine recognition. _IEEE Sens. J._https://doi.org/10.1109/JSEN.2018.2833745 (2018). Article  PubMed  PubMed Central  Google Scholar  *

Stikic, M., Huynh, T., Laerhoven, K. V. & Schiele, B. Adl recognition based on the combination of rfid and accelerometer sensing. In _2008 Second International Conference on Pervasive

Computing Technologies for Healthcare_. https://doi.org/10.4108/icst.pervasivehealth2008.2795 (2009). * Roy, N., Misra, A. & Cook, D. Ambient and smartphone sensor assisted ADL

recognition in multi-inhabitant smart environments. _J. Ambient Intell. Humaniz. Comput._https://doi.org/10.1007/s12652-015-0294-7 (2016). Article  PubMed  Google Scholar  * Roggen, D. _et

al._ Collecting complex activity datasets in highly rich networked sensor environments. In _2010 Seventh International Conference on Networked Sensing Systems (INSS)_, 233–240.

https://doi.org/10.1109/INSS.2010.5573462 (2010). * Van Der Donckt, J., De Brouwer, M., Moens, P., Stojchevska, M., Steenwinckel, B., Pletinck, S., Vandenbussche, N., Goris, A., Paemeleire,

K., Ongenae, F. & Van Hoecke, S. From self-reporting to monitoring for improved migraine management. In _EmP : 1st RADar conference on Engineer meets Physician, Proceedings_, 5 (2022). *

Bergstra, J., Yamins, D. & Cox, D. D. Making a science of model search: Hyperparameter optimization in hundreds of dimensions for vision architectures. In _Proceedings of the 30th

International Conference on International Conference on Machine Learning—Volume 28_, ICML’13, I-115-I-123 (JMLR.org, 2013). * imec.ICON PROTEGO.

https://www.imec-int.com/en/research-portfolio/protego * Televic Healthcare—AQURA. https://www.televic.com/en/healthcare/our-solutions/aqura-essentials * Hochreiter, S. & Schmidhuber, J.

Long short-term memory. _Neural Comput._ 9, 1735–1780. https://doi.org/10.1162/neco.1997.9.8.1735 (1997). Article  CAS  PubMed  Google Scholar  Download references ACKNOWLEDGEMENTS This

research is part of the imec.ICON project PROTEGO (HBC.2019.2812), co-funded by imec, VLAIO, Televic, Amaron, Z-Plus and ML2Grow. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * IDLab, Ghent

University-imec, Zwijnaarde, Belgium Marija Stojchevska, Mathias De Brouwer, Martijn Courteaux, Bram Steenwinckel, Sofie Van Hoecke & Femke Ongenae Authors * Marija Stojchevska View

author publications You can also search for this author inPubMed Google Scholar * Mathias De Brouwer View author publications You can also search for this author inPubMed Google Scholar *

Martijn Courteaux View author publications You can also search for this author inPubMed Google Scholar * Bram Steenwinckel View author publications You can also search for this author

inPubMed Google Scholar * Sofie Van Hoecke View author publications You can also search for this author inPubMed Google Scholar * Femke Ongenae View author publications You can also search

for this author inPubMed Google Scholar CONTRIBUTIONS M.S., F.O. and S.V.H. conceptualized the work; M.D.B., B.S. and M.S. contributed to data acquisition and formatting. M.S. designed and

implemented the methodology and M.C. contributed in defining the loss function and evaluation; M.S. performed investigation and experiments; M.S. wrote the main manuscript text; All authors

reviewed the manuscript. CORRESPONDING AUTHOR Correspondence to Marija Stojchevska. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION

PUBLISHER'S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY

INFORMATION. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution

and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if

changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the

material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to

obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS

ARTICLE Stojchevska, M., De Brouwer, M., Courteaux, M. _et al._ Unlocking the potential of smartphone and ambient sensors for ADL detection. _Sci Rep_ 14, 5392 (2024).

https://doi.org/10.1038/s41598-024-56123-0 Download citation * Received: 12 September 2023 * Accepted: 29 February 2024 * Published: 05 March 2024 * DOI:

https://doi.org/10.1038/s41598-024-56123-0 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative KEYWORDS * Human activity recognition (HAR) * Real-world data *

Smartphone sensor data * Ambient sensor data
